Garmin GMI/GNX Wired Sail Pack With DST810

Comprehensive Overview of Garmin GMI/GNX Wired Sail Pack

Garmin GMI/GNX Wired Sail Pack With DST810

Garmin GMITM/GNXTM Wired Sail Pack 52 GMITM 20, GNXTM 20, gWindTM Wired and DST810 transducers

Model: 010-01248-90

• Includes GMITM 20 and GNXTM 20 marine instruments and gWindTM and Airmar DST810 transducer
• GMI 20 instrument has a highly visible bright 4 in color glass-bonded lens display with anti-glare finish
• GNX 20 instrument has highly visible monochrome LCD displays
• gWind transducer features 3-bladed propeller and twin-fin design
• DST810 thru-hull smart transducer provides water depth, water speed and water temperature data - plus attitude sensing for heel/trim and pitch/roll inputs
• Wireless connectivity to devices with BLUETOOTH(R) technology enables DST810 calibration directly through Airmar's Cast app

With a GMI/GNX Wired Sail Pack 52, you'll have all the equipment you need to know what's going on with the wind and water.

The GMI 20 digital marine instrument display is perfectly designed for both power and sail. Designed to clearly show depth, speed, wind and 100-plus marine and vessel parameters, its large, bright 4 in color display with extra-large digits is easy to read at a distance and 170-degree viewing angle.

A glass-bonded finish lens on GMI 20 prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll - cycling between pages automatically without you having to do a thing. This is especially advantageous for sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel plus several other user-specified profiles. Power is supplied by the NMEA 2000(R) network.

The easy-to-read GNX 20 marine instrument display has black digits on a white or color background. It clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.

gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

DST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs - which it provides to the NMEA 2000(R) network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH(R) technology enables DST810 calibration directly through Airmar's Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.

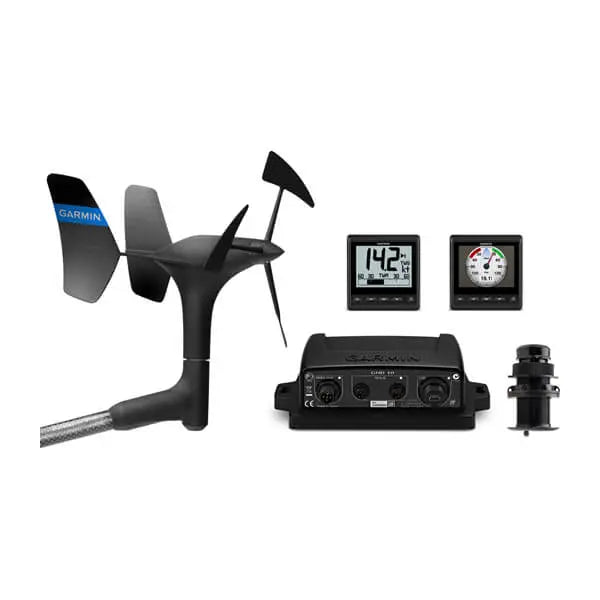

What's in the Box:

• gWindTM transducer
• GMITM 20 marine instrument
• GNXTM 20 marine instrument
• GNDTM 10 black box bridge
• Airmar DST810 thru-hull smart transducer
• NMEA 2000(R) drop cable (2 m) x 3
• NMEA 2000 power cable
• NMEA 2000 T-connectors x 5
• NMEA 2000 terminators
• Mast cable with female connector (25 meters)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation

Advanced Marine Instrumentation with Garmin GMI/GNX

The Garmin GMI/GNX Wired Sail Pack is designed to deliver precise and reliable instrument data for sailors who demand accuracy and performance. Featuring cutting-edge technology, the Garmin GMI/GNX integrates seamlessly with your boat's network, providing real-time information such as wind speed, direction, depth, and speed. This instrument pack enhances situational awareness, enabling safer and smarter decision-making on the water. Built to withstand harsh marine environments, the Wired Sail Pack ensures continuous operation, making it an essential tool for any serious sailor.

Seamless Integration with DST810 Sensor

Included in the pack, the DST810 sensor enhances the Garmin GMI/GNX system by delivering precise depth, speed, and temperature data. This sensor utilizes robust, through-hull technology that offers reliable performance in diverse sea conditions. When paired with the Garmin GMI/GNX, the DST810 provides critical environmental inputs necessary for navigation and vessel monitoring. Its wired connection ensures stable data transmission without interference, making it a trusted component in the Wired Sail Pack, ideal for improving your vessel’s overall instrumentation accuracy.

Durability and User-Friendly Design

The Garmin GMI/GNX Wired Sail Pack with DST810 boasts a user-friendly interface designed specifically for the marine environment. The instruments feature clear and bright displays that remain easily readable even in direct sunlight or adverse weather. Designed to resist corrosion and pressure, this pack offers excellent durability on long voyages. Installation is straightforward thanks to the wired setup, which promotes reliable communication between sensors and display units. This combination of durability and ease of use makes it a must-have for sailors focusing on both performance and longevity.
