SKU:86210
GMI Wired Start Pack 52
A Perfect Start to Your New Instrument Network On Board
A Good Start or Complete Pack
With a GMI Wired Start Pack 52, youll have all the equipment you need to know whats going on with the wind and the water. If youre looking to install more than just one instrument in your network, this is the perfect start pack to use. By using the NMEA 2000 network, its easy to expand with the number of instruments you want.
GMI 20 Marine Instrument
The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100-plus marine and vessel parameters, its large, bright 4 color display with extra-large digits is easy to read at a distance and 170 degree viewing angle.
A glass-bonded finish lens on GMI 20 prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll cycling between pages automatically without you having to do a thing. This is especially advantageous for sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel plus several other user-specified profiles. Power is supplied by the NMEA 2000 network.
gWind Transducer
gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.
AIRMAR DST810 Thru-hull Smart Transducer
DST810 combines precise depth, speed and temperature data with attitude sensing for heel/trim and pitch/roll inputs which it provides to the NMEA 2000 network and GNX 20 instrument. This multisensor transducer can read depths to 330, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10 x 44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH technology enables DST810 calibration directly through the CAST app from AIRMAR. Advanced speed calibration allows for calibration at multiple heel angles and speeds.
In The Box:
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

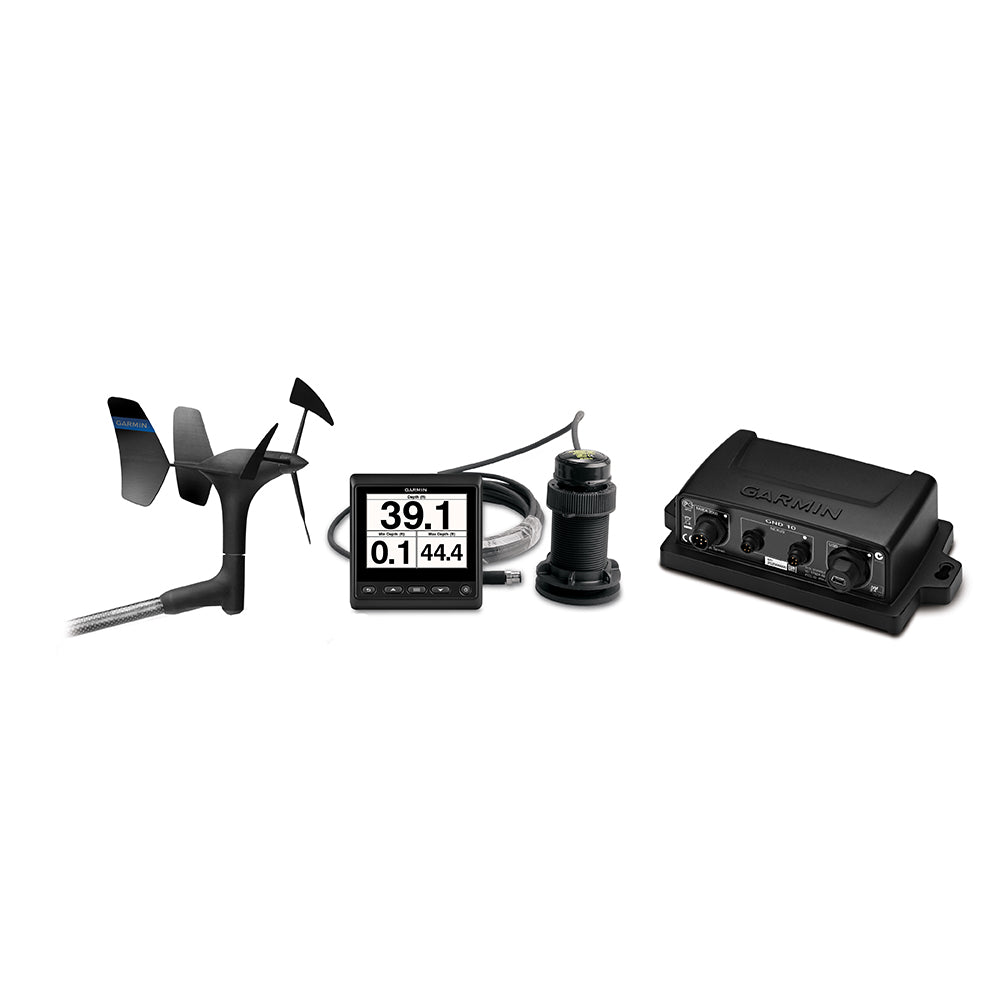

The Garmin GMI Wired Start Pack 52 provides a comprehensive solution for monitoring wind and water conditions on your vessel. This pack includes the GMI 20 marine instrument, gWind transducer, and AIRMAR DST810 thru-hull smart transducer, delivering essential data for both power and sailboats. The GMI 20 features a highly visible 4-color glass-bonded lens display with an anti-glare finish, ensuring clear readability in various lighting conditions. Its large digits and wide viewing angle make it suitable for installation in multiple locations on your vessel. The unit is powered via the NMEA 2000 network, allowing easy integration and expansion with additional instruments as needed. The customizable display profiles support different vessel types and user preferences, making it a versatile choice for serious boaters and navigators.
The gWind transducer employs twin-fin technology with a 3-bladed propeller, enhancing the accuracy of true wind speed and angle measurements, especially in lighter air conditions. Its optic reading system ensures superior linearity and reliable performance at low wind speeds. The DST810 thru-hull smart transducer offers precise depth, water speed, and temperature data, with the added capability of attitude sensing for heel, trim, pitch, and roll. This multisensor device communicates via the NMEA 2000 network and supports wireless calibration through Bluetooth using the CAST app from AIRMAR, simplifying setup and adjustments. Operating at 235 kHz with a fan-shaped beam, it provides fast, reliable readings up to depths of 330 feet, making it ideal for detailed water condition monitoring.
This all-in-one kit contains necessary mounting hardware, cables, and connectors, making installation straightforward and reliable. Whether you're a seasoned sailor or a recreational boater, the Garmin GMI Wired Start Pack 52 offers an excellent foundation for expanding your vessel’s instrument network. Its compatibility with Garmin chartplotters and NMEA 2000 networks ensures seamless integration with existing systems. With this package, you get a durable, accurate, and easy-to-use set of instruments designed to keep you informed about wind and water conditions, enhancing safety and navigation efficiency on your vessel.
Features:
