Garmin GMR Fantom 18x Radar Black 50 Watt 18in Dome with 15m Cables

Garmin GMR Fantom 18x Radar: Advanced Marine Radar Technology

Garmin GMR Fantom 18x Radar Black 50 Watt 18in Dome with 15m Cables

Garmin GMR FantomTM 18x, Black

Model: 010-02584-10

• GMR Fantom brings the power. Fifty watts of it, actually.
• See targets clearly, and adjust their sizes as needed.
• With power save mode, you get to choose when to use full power and when to pull back.
• Every second of power usage counts. Cut back even more by choosing your active times down to the second.
• MotionScopeTM technology shows targets in color as they move toward you or away.

Tailor your 50-watt solid-state dome radar to your boat with a white or black option - both with a range from 20 feet to 48 nautical miles, even in fog or rain, and up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed.

High-resolution images and high antenna gain help to pick out targets at a distance, while 8-bit true color imagery enhances target separation.

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors, so you can navigate around other boats or severe weather - or toward fishing spots where birds feed at the surface.

The power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don't.

Boaters and sailors can specify transmit times down to the seconds instead of minutes, allowing for reduced power consumption.

These radars don't have any complex user settings to deal with, so they're easy to install and start using.

Adjust on-screen target resolution for better separation based on your surroundings.

Adjust on-screen target resolution for better separation based on your surroundings.

See a historical "trail" on the screen to help you quickly and easily identify moving targets and potential collision threats.

The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

This feature automatically adjusts to your surroundings for optimal performance in all conditions.

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

Overlay radar images onto your chartplotter's map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope technology.

Set the safety zone and receive an alarm when an object enters the zone.

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

Specifications

DIMENSION20 x 9.8 in (50.8 cm x 24.8 cm)

WEIGHT
14.0 lbs

WATERPROOF
IPX7

ANTENNA LENGTH
17 in (43.18 cm)

ROTATION SPEED (RPM)
Up to 60 rpm

Powerful 50 Watt Transmission for Clear Detection

The Garmin GMR Fantom 18x radar features a robust 50 watt output that ensures enhanced signal strength for clear, reliable detection of objects and vessels. This power enables users to monitor their surroundings in various marine conditions, improving navigation safety. The consistent transmission supports wide area scanning with excellent target separation, making it ideal for both recreational and commercial mariners. With this level of power, the Fantom 18x confidently detects smaller objects at greater ranges, providing essential situational awareness while on the water.

Durable 18-Inch Dome with 15 Meter Cable Connectivity

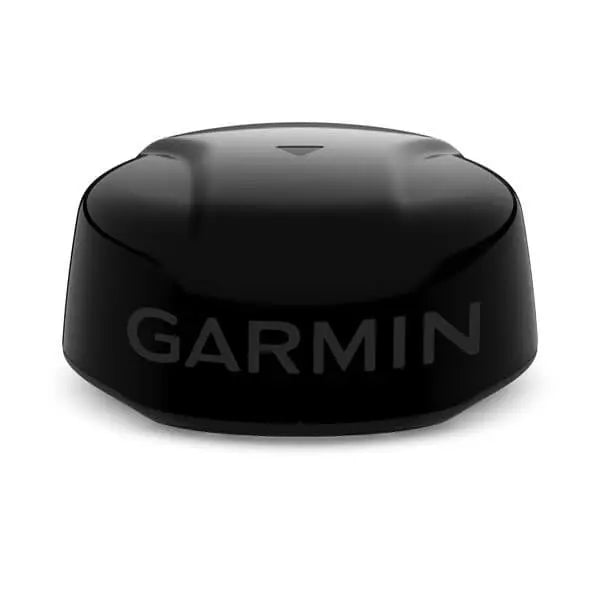

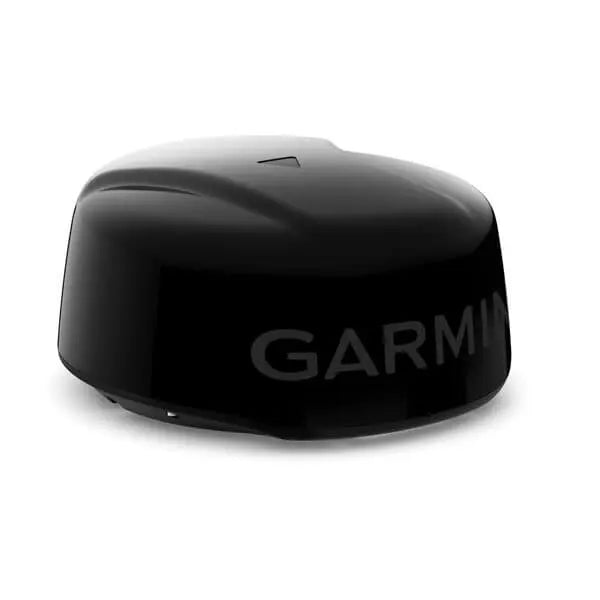

This Garmin radar comes equipped with a sturdy 18-inch dome designed to withstand harsh marine environments. The sleek black finish complements most vessel designs while offering protection against corrosion and impact. Included 15-meter cables simplify installation and ensure optimal connectivity between the radar dome and the display unit. The extended cable length allows for flexible mounting options without compromising performance, helping users position the radar system for the best possible coverage and signal transmission.

Seamless Integration with Garmin Marine Electronics

Designed to work flawlessly within the Garmin ecosystem, the GMR Fantom 18x radar integrates easily with compatible chartplotters and multifunction displays. This interoperability enables access to advanced radar features such as target tracking, MARPA, and radar overlay on charts. Users benefit from intuitive control and data visualization, enhancing navigation and collision avoidance capabilities. The radar's sophisticated processing technology reduces clutter and interference, delivering clear images that improve decision-making and safety on every voyage.
