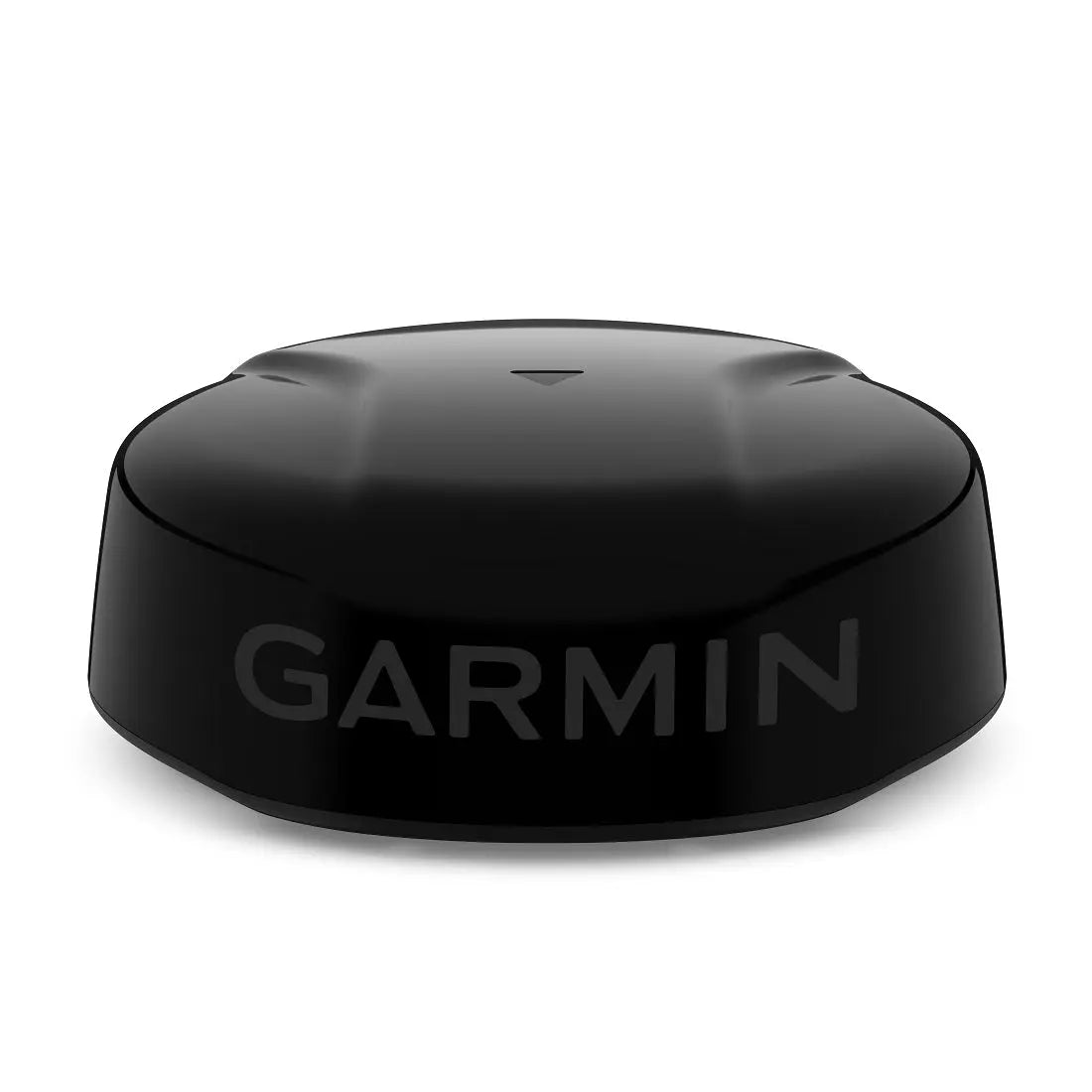

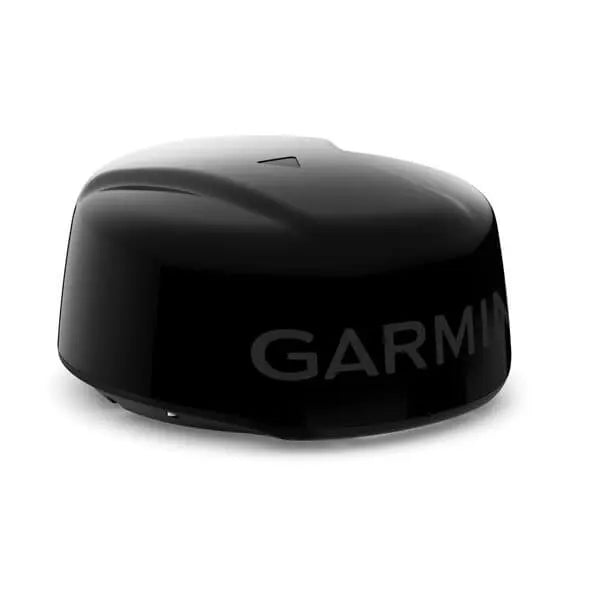

Garmin GMR Fantom 24x Radar Black 50 Watt 24in Dome with 15m Cables

Garmin GMR Fantom 24x Radar: Superior Marine Navigation Technology

Garmin GMR Fantom 24x Radar Black 50 Watt 24in Dome with 15m Cables

Garmin GMR FantomTM 24x, Black

Model: 010-02585-10

• GMR Fantom brings the power. Fifty watts of it, actually.
• See targets clearly, and adjust their sizes as needed.
• With power save mode, you get to choose when to use full power and when to pull back.
• Every second of power usage counts. Cut back even more by choosing your active times down to the second.
• MotionScopeTM technology shows targets in color as they move toward you or away.

Tailor your 50-watt solid-state dome radar to your boat with a white or black option - both with a range from 20 feet to 48 nautical miles, even in fog or rain, and up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed.

High-resolution images and high antenna gain help to pick out targets at a distance, while 8-bit true color imagery enhances target separation.

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors, so you can navigate around other boats or severe weather - or toward fishing spots where birds feed at the surface.

The power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don't.

Boaters and sailors can specify transmit times down to the seconds instead of minutes, allowing for reduced power consumption.

These radars don't have any complex user settings to deal with, so they're easy to install and start using.

Adjust on-screen target resolution for better separation based on your surroundings.

Adjust on-screen target resolution for better separation based on your surroundings.

See a historical "trail" on the screen to help you quickly and easily identify moving targets and potential collision threats.

The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

This feature automatically adjusts to your surroundings for optimal performance in all conditions.

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

Overlay radar images onto your chartplotter's map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope technology.

Set the safety zone and receive an alarm when an object enters the zone.

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

Specifications

DIMENSION25.4 x 9.8 in (64.5 cm x 24.9 cm)

WEIGHT
17.4 lbs

WATERPROOF
IPX7

ANTENNA LENGTH
23 in (58.42 cm)

ROTATION SPEED (RPM)
Up to 60 rpm

Powerful 50 Watt Radar for Clear Detection

The Garmin GMR Fantom 24x Radar boasts a robust 50 watt power output that ensures clear and reliable detection of objects and obstacles in marine environments. This powerful radar system provides enhanced target definition at longer ranges, improving situational awareness for boaters. With its 24-inch black dome design, it balances performance and durability, making it an ideal choice for both recreational and professional mariners seeking precise tracking and safety on the water.

Durable 24in Dome with 15m Cables for Flexible Installation

This Garmin model features a rugged 24-inch dome that is built to withstand harsh marine conditions while maintaining high performance. It comes equipped with 15-meter cables, allowing flexible installation options without compromising signal quality. The long cables make it easy to connect the radar to your navigation system, whether installed on larger vessels or smaller boats. The sleek black dome design also complements the aesthetics of various marine crafts.

Advanced Technology Enhances Navigation Safety

The GMR Fantom 24x incorporates Garmin's cutting-edge radar technology, delivering fast target acquisition and minimal interference from waves or weather. It supports advanced features like Doppler radar for improved moving target indication, helping captains distinguish between stationary and moving objects quickly. This radar system enhances safety and decision-making on the water, providing confidence in navigation even under challenging conditions.
