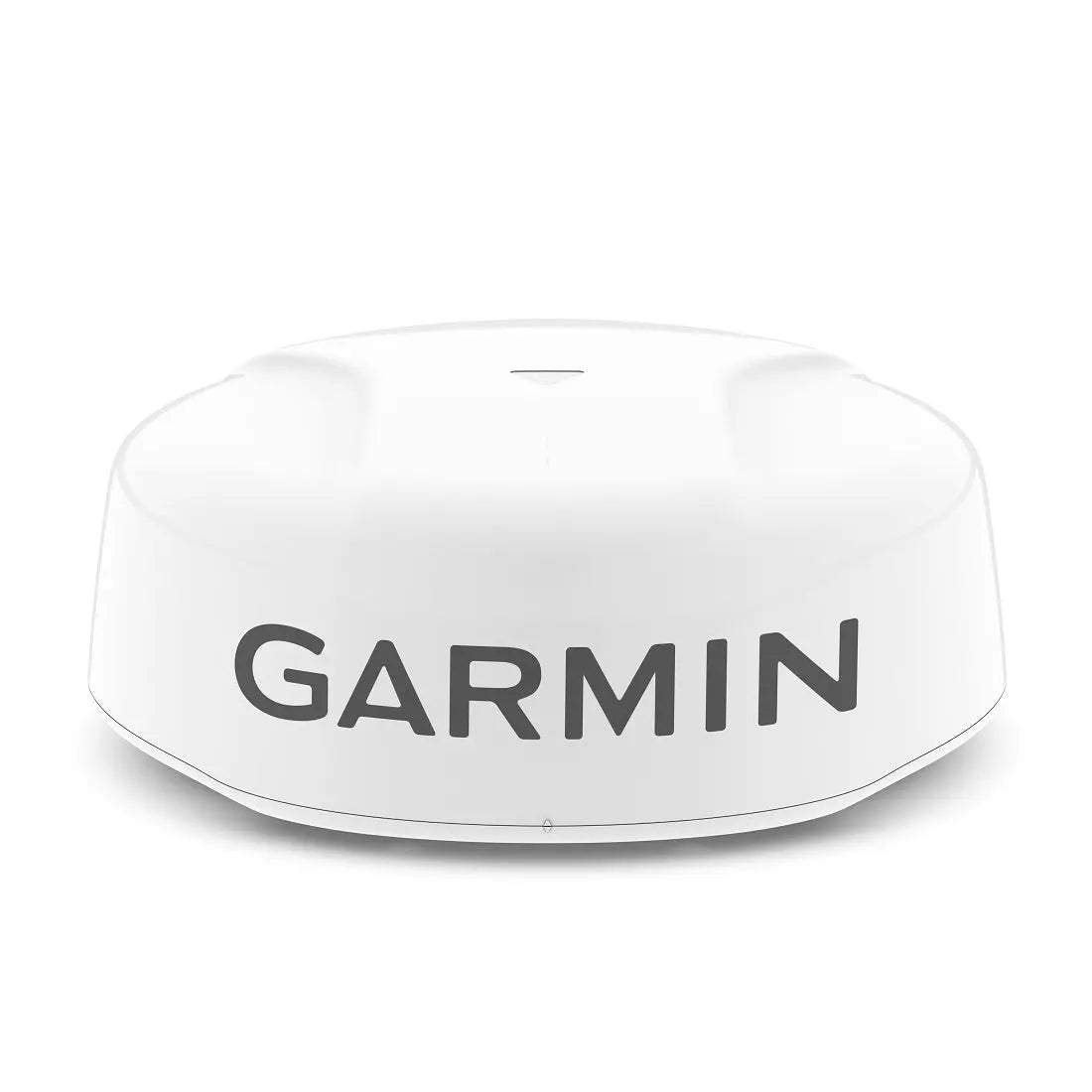

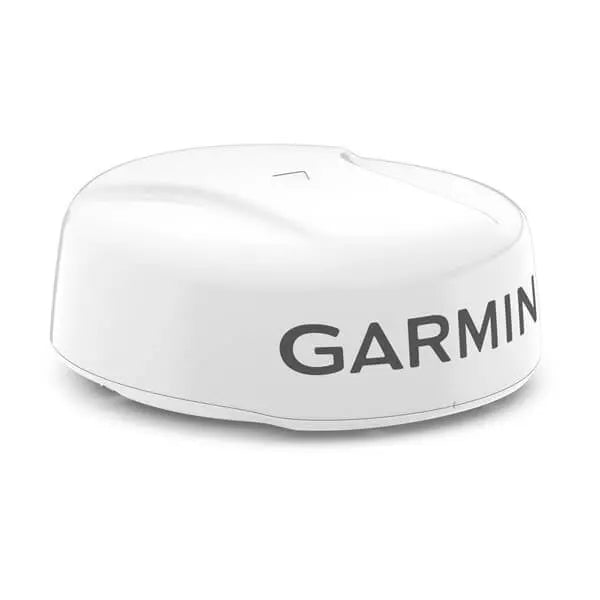

Garmin GMR Fantom 24x Radar White 50 Watt 24in Dome with 15m Cables

Garmin GMR Fantom 24x Radar Overview and Features

Garmin GMR Fantom 24x Radar White 50 Watt 24in Dome with 15m Cables

Garmin GMR FantomTM 24x, white

Model: 010-02585-00

• GMR Fantom brings the power. Fifty watts of it, actually.
• See targets clearly, and adjust their sizes as needed.
• With power save mode, you get to choose when to use full power and when to pull back.
• Every second of power usage counts. Cut back even more by choosing your active times down to the second.
• MotionScopeTM technology shows targets in color as they move toward you or away.

Tailor your 50-watt solid-state dome radar to your boat with a white or black option - both with a range from 20 feet to 48 nautical miles, even in fog or rain, and up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed.

High-resolution images and high antenna gain help to pick out targets at a distance, while 8-bit true color imagery enhances target separation.

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors, so you can navigate around other boats or severe weather - or toward fishing spots where birds feed at the surface.

The power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don't.

Boaters and sailors can specify transmit times down to the seconds instead of minutes, allowing for reduced power consumption.

These radars don't have any complex user settings to deal with, so they're easy to install and start using.

Adjust on-screen target resolution for better separation based on your surroundings.

Adjust on-screen target resolution for better separation based on your surroundings.

See a historical "trail" on the screen to help you quickly and easily identify moving targets and potential collision threats.

The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

This feature automatically adjusts to your surroundings for optimal performance in all conditions.

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

Overlay radar images onto your chartplotter's map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope technology.

Set the safety zone and receive an alarm when an object enters the zone.

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

Specifications

DIMENSION25.4 x 9.8 in (64.5 cm x 24.9 cm)

WEIGHT
17.4 lbs

WATERPROOF
IPX7

ANTENNA LENGTH
23 in (58.42 cm)

ROTATION SPEED (RPM)
Up to 60 rpm

Powerful 50 Watt Performance for Clear Detection

The Garmin GMR Fantom 24x Radar features a robust 50-watt transmitter that delivers powerful radar signals for superior performance in all marine environments. This radar is designed for accurate target detection at long ranges, ensuring greater safety and enhanced situational awareness for boaters. Whether navigating busy waterways or exploring open seas, the 24-inch dome antenna coupled with the powerful transmitter provides sharp, clear images to help you avoid collisions and identify obstacles early.

Compact 24-Inch Dome Design with 15m Cable

Equipped with a compact 24-inch white dome, the Garmin GMR Fantom 24x Radar offers space-efficient installation without sacrificing performance. The included 15-meter cable facilitates flexible placement options for various vessel types, making it ideal for both small and larger boats. The design ensures durability and resistance to harsh marine conditions, while minimizing interference with vessel aesthetics and deck space.

Advanced Technology for Enhanced Marine Navigation

Garmin integrates advanced radar technology into the GMR Fantom 24x, featuring motion-sensor stabilization and clutter reduction capabilities. This results in more stable radar images even in rough waters, with minimized background noise and improved target tracking. The radar seamlessly connects with Garmin’s marine systems, providing real-time updates and integration with chartplotters for a comprehensive navigation solution. This technology enhances user confidence and streamlines offshore and coastal navigation.
