SKU:86207

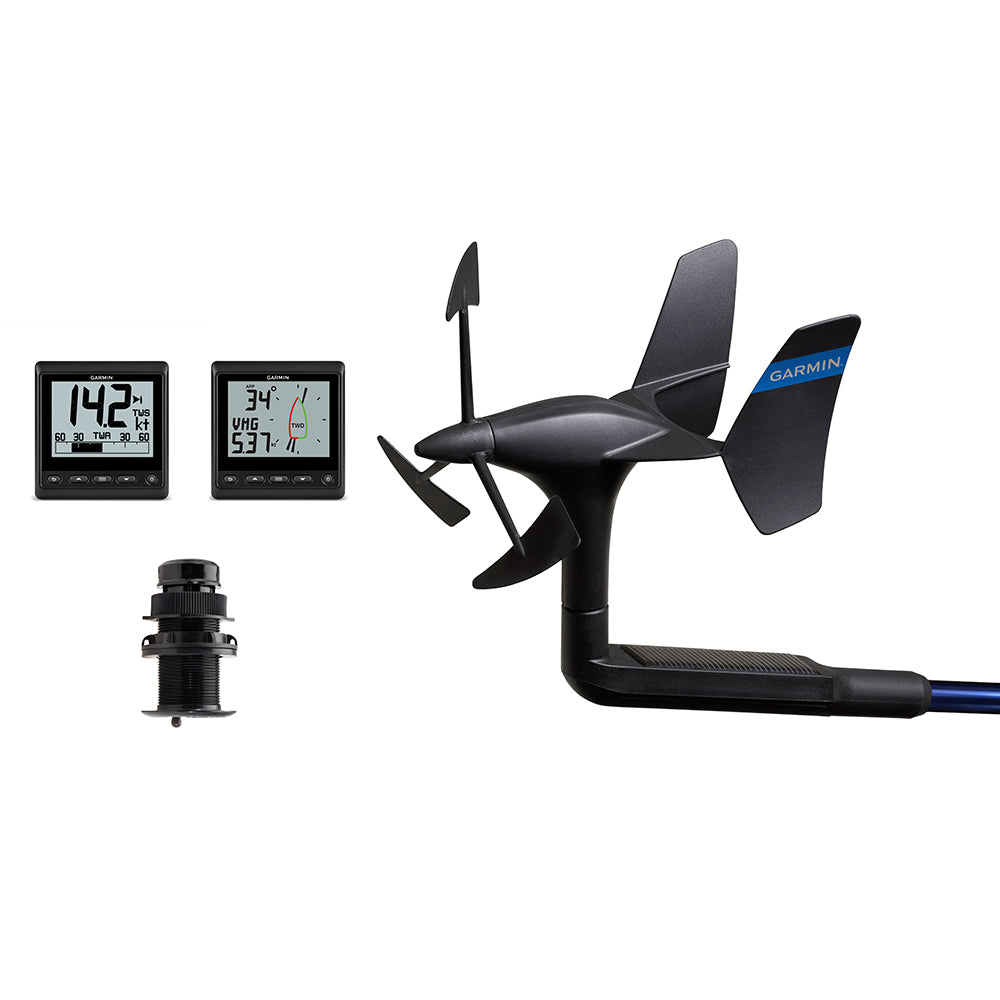

GNX Wireless Sail Pack 52
GNX Wind, GNX 20, gWind Wireless and DST810 transducers
The Information You Need to Make Confident Decisions
With a GNX Wireless Sail Pack, you will have all the equipment you need to know whats going on with the wind and the water.
GNX Wind Instrument
GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.
gWind Wireless 2 Transducer
gWind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions.
GNX 20 Marine Instrument
The easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles: single, dual and triple function plus gauge and graph mode to display wind, depth and speed data, or customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.
Airmar DST810 Thru-hull Smart Transducer
DST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs which it provides to the NMEA 2000 network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH technology enables DST810 calibration directly through Airmars Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.
In The Box:
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Garmin GNX Wireless Sail Pack 52 provides comprehensive marine data essential for confident sailing and boating. This pack includes the GNX Wind instrument, GNX 20 marine display, gWind Wireless 2 transducer, and Airmar DST810 thru-hull smart transducer, offering a complete solution for wind, water, and depth monitoring. The GNX Wind features a high-visibility monochrome LCD display with customizable backlight colors, displaying true and apparent wind data, boat speed, steering guidance, and more. Its low power consumption makes it ideal for sailboats, and it can wirelessly connect to Garmin's quatix 3 GPS smartwatch via ANT technology for real-time wind updates. The GNX 20 instrument presents water depth, boat speed, water temperature, and over 50 additional marine parameters on a clear, anti-glare display, with flexible configuration options suitable for both sail and powerboats. Its high-contrast digits ensure excellent readability during day and night operations. The gWind Wireless 2 transducer simplifies installation by eliminating wires through masts up to 50 feet, transmitting accurate wind data directly to compatible Garmin devices. The Airmar DST810 smart transducer offers precise depth, speed, temperature, and attitude sensing, with water depth capacity up to 330 feet and fast 5 Hz water speed updates. It features wireless Bluetooth calibration through the Airmar Cast app, enabling easy setup and calibration at various heel angles and speeds. This comprehensive kit includes all necessary mounting hardware, cables, and accessories for seamless integration into your vessel’s NMEA 2000 network. Whether you're racing or cruising, the Garmin GNX Wireless Sail Pack 52 equips you with reliable, real-time wind and water data to enhance your sailing experience and navigational confidence.
Features:
