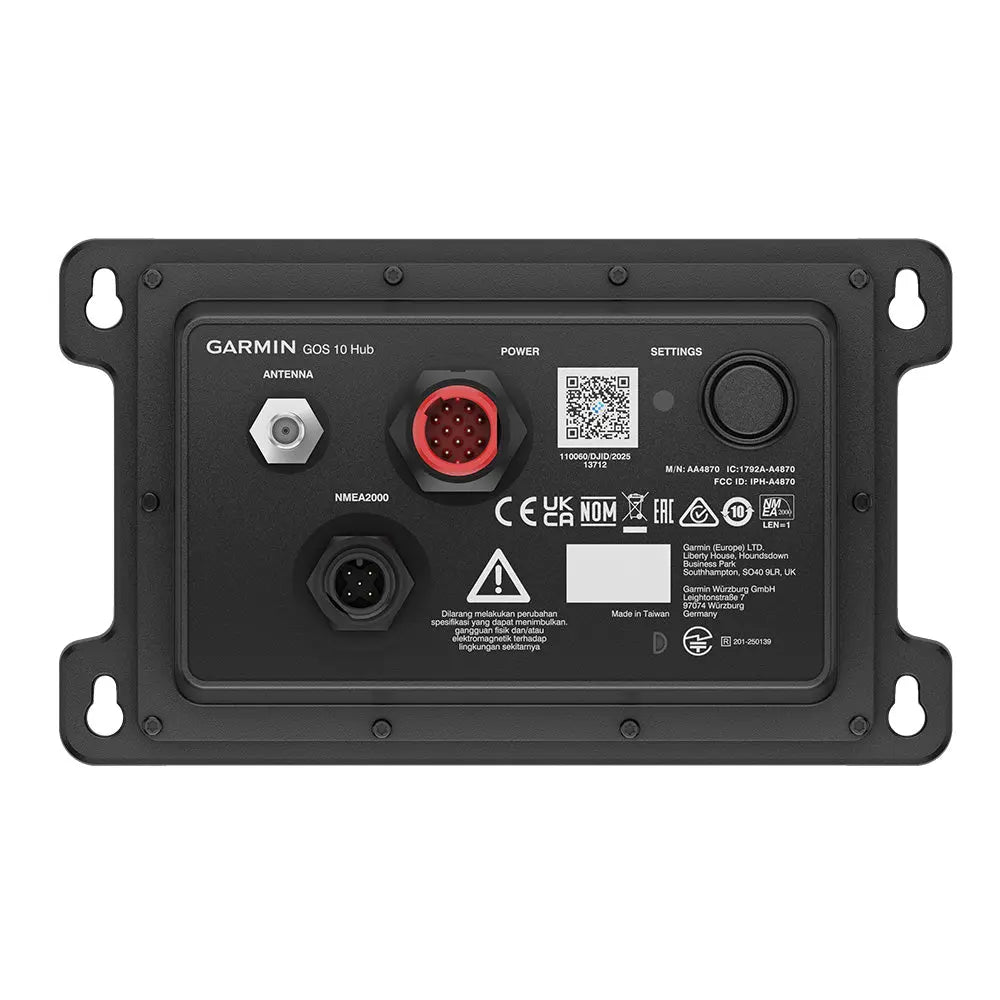

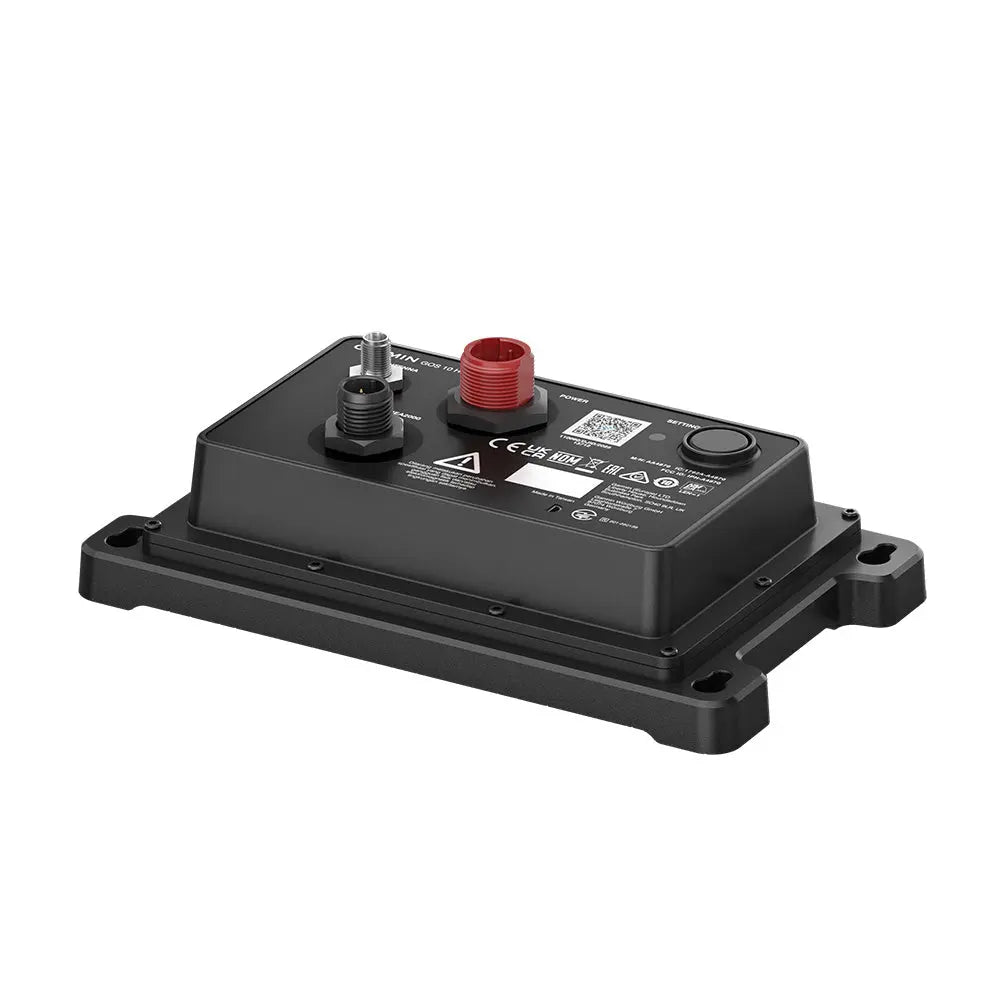

Garmin GOS 10 Hub for Garmin OnBoard System with Wireless Connectivity and ECOS Support

GOS 10 Hub for Garmin OnBoard System

Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessels engine harness to provide Engine Cut Off System (ECOS) functionality.

Whats In The Box

• GOS 10 Hub for the Garmin OnBoard System
• 12-pin fused power and engine cut-off harness with external buzzer
• External antenna for wireless connection to MOB tags
• NMEA 2000 T-connector
• NMEA 2000 drop cable
• Installation hardware
• Documentation

Specifications:

• Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
• Weight: 171.7 g
• Wireless range: 66 ft (up to 20 m)
• Supply voltage range: 10-32V
• Operating temperature range: -15 C to 70 C
• Typical power consumption: 50mA @ 12V or 0.6W
• NMEA 2000 LEN: 1
• Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
• Engine interface: Hardwired, in-line connection to ignition harness
• Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
• Water rating: IPX6 and IPX7
• Compass-safe distance: 5 cm

The Garmin GOS 10 Hub is an essential component of the Garmin OnBoard system, designed to enhance vessel safety through reliable wireless communication and engine management features. This hub facilitates seamless wireless interaction with MOB tags within a range of up to 66 feet, ensuring quick and efficient safety protocols. It connects directly to your vessel's engine harness to provide Engine Cut Off System (ECOS) functionality, enabling remote engine shutdown to prevent accidents or theft. Its compatibility with inboard, outboard, and sterndrive engines from major manufacturers makes it a versatile choice for a variety of marine vessels.
The GOS 10 Hub comes with a comprehensive installation kit, including a 12-pin fused power and engine cut-off harness with an external buzzer, an external antenna for wireless MOB tag communication, NMEA 2000 T-connector, and drop cable. These components facilitate straightforward setup and reliable operation. The device's compact size and IPX6/IPX7 water resistance ratings ensure durability in harsh marine environments, while its operating temperature range of -15°C to 70°C supports use in diverse climates.
Designed for easy integration, the GOS 10 Hub features a hardwired, inline connection to the ignition harness, supporting up to four engines in close-to-stop mode or two engines in open-to-stop mode. Its low power consumption of approximately 0.6W at 12V makes it energy-efficient for extended use. The hub's NMEA 2000 compatibility allows for seamless data sharing with other marine electronics, enhancing your vessel's overall system integration. Whether used for safety, security, or engine management, the Garmin GOS 10 Hub provides a robust and reliable solution for modern marine vessels.

Features:

• Wireless communication range: Up to 66 feet (20 meters)

• Engine compatibility: Supports inboard, outboard, and sterndrive engines from major manufacturers

• Engine interface: Hardwired, inline connection to ignition harness

• Engine support: Up to 4 close-to-stop engines or 2 open-to-stop engines

• Water resistance: IPX6 and IPX7 rated for durability in harsh marine conditions

• Power supply: 10-32V with typical consumption of 50mA at 12V

• Operating temperature: -15°C to 70°C

• NMEA 2000 compatibility: Supports data sharing with other marine electronics

• Includes: Fused power and engine cut-off harness, external antenna, NMEA 2000 T-connector, drop cable, and installation hardware

• Dimensions: Compact size suitable for various vessel configurations
