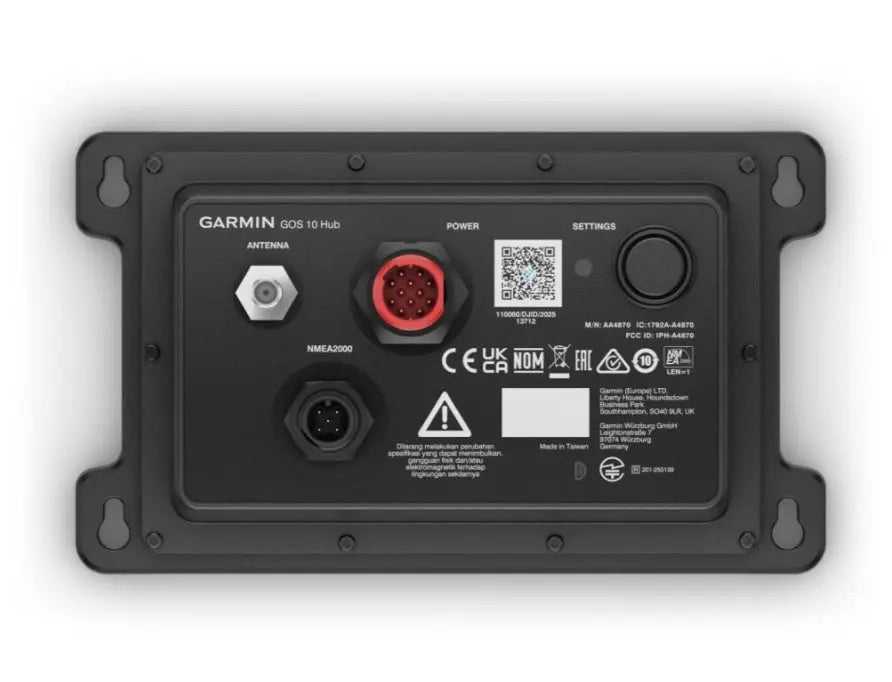

Garmin GOS10 Hub for Onboard System

Garmin GOS10 Hub for Onboard System

Model: 010-02908-10

Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessel's engine harness to provide Engine Cut Off System (ECOS) functionality.

Specifications
Dimensions (HxWxD)91.55 mm x 155.12 mm x 48.47 mm

Weight
171.7 g

Wireless range
66 ft (up to 20 m)

Supply voltage range
10-32 V

Operating temperature range
-15 C to 70 C

Typical power consumption
50mA @ 12 V or 0.6 W

NMEA 2000 LEN
1

Engine compatibility
Inboard, outboard, sterndrive from all major manufacturers

Engine interface
Hardwired, in-line connection to ignition harness

Number of engines supported
Up to 4 close-to-stop or 2 open-to-stop engines

Water rating
IPX6 and IPX7

Compass-safe distance
5 cm

What's in the Box:

• GOS 10 Hub for the Garmin OnBoard System


• 12-pin fused power and engine cut-off harness with external buzzer


• External antenna for wireless connection to MOB tags


• NMEA 2000 T-connector


• NMEA 2000 drop cable


• Installation hardware


• Documentation
