Garmin GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - Black

GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - Black

The GPS 24xd position receiver and antenna give users precise location with multi-band GNSS and heading accuracy even at slow speeds.

Features:

• Navigate to more locations with expanded GNSS support
• Get high-sensitivity tracking with a fast GPS update rate
• Accurately pinpoint, regardless of speed
• Its water-resistant (IPX7) to withstand the elements
• Install it easily with multiple mounting options
• The antenna is compatible with NMEA 2000 devices

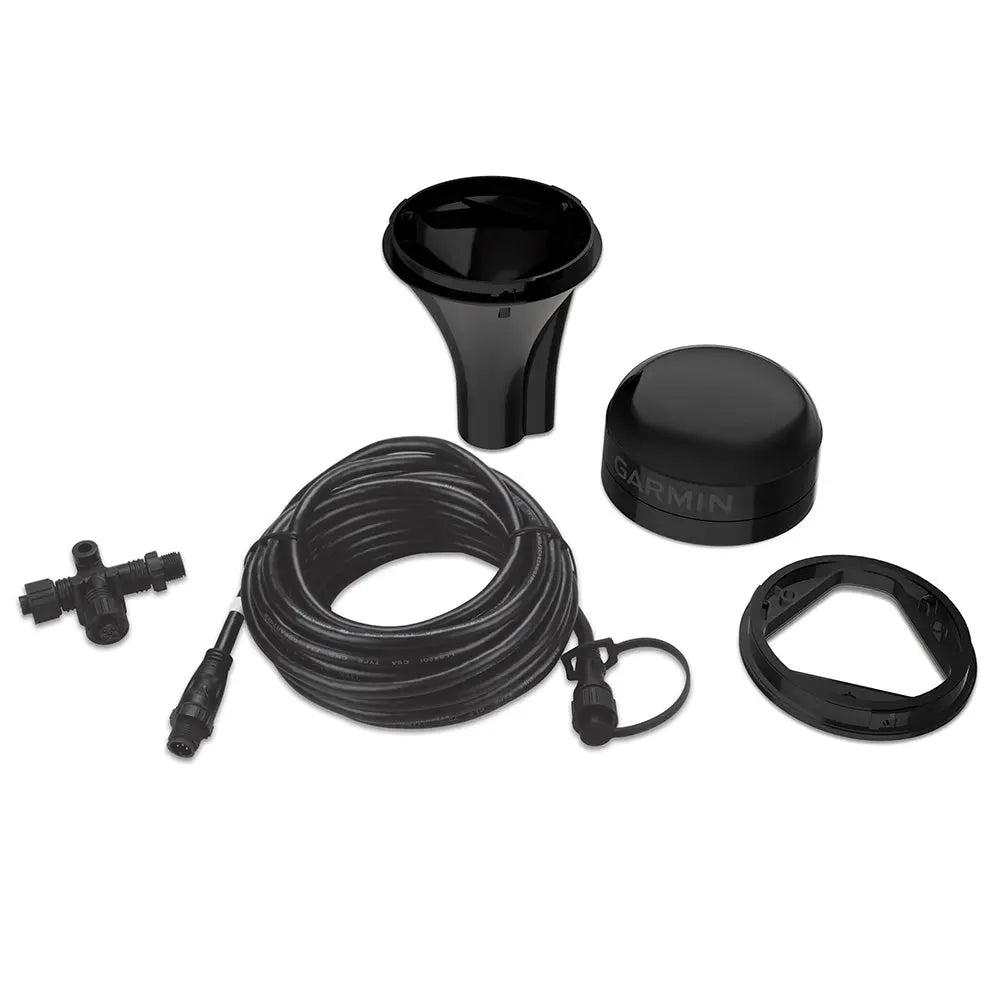

In the Box:

• GPS 24xd NMEA 2000
• Pole mount
• Surface mount
• NMEA 2000 backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

Specifications:

• Color: Black
• Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
• Weight: 7.1 oz (201 g), white; 6.2 oz (176 g), black
• Cable Length: 19 ft 8" (6 m)
• Temperature Range: -22 to 176 F (-30 to 80 C), white; -22 to 149 F (-30 to 65 C), black
• Case Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-Safe Distance: 5.9" (150 mm)
• Power Source Input: 9-32 Vdc
• Input Current: 150 mA at 12 Vdc
• NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
• Position Accuracy, Typical Marine Use: < 1-meter CEP, < 3 meters, 95%

The Garmin GPS 24xd GPS Antenna with Heading Sensor is designed for reliable marine and navigation applications, providing precise positioning with multi-band GNSS support and high-accuracy heading data. Its advanced receiver ensures accurate location tracking even at low speeds, making it ideal for a variety of navigation scenarios. The antenna's robust construction and IPX7 water resistance rating enable it to withstand harsh marine environments, ensuring durability and consistent performance. Installation is straightforward with multiple mounting options, including pole and surface mounts, allowing flexible setup on different vessels or vehicles. Compatibility with NMEA 2000 devices means it seamlessly integrates into existing marine networks, providing real-time position and heading data to compatible chartplotters and navigation systems. The GPS 24xd's fast update rate ensures responsive navigation, while its high-sensitivity tracking capability maintains signal lock in challenging conditions, such as heavy cloud cover or near obstacles. The antenna's compact design and lightweight profile make it suitable for various installation locations without adding significant weight or bulk. In the package, users will find the GPS 24xd antenna, pole and surface mounts, a 6-meter NMEA 2000 backbone/drop cable, a T-connector, and comprehensive documentation for easy setup. With a durable case constructed from high-impact plastic alloy, the antenna is built to endure the demanding conditions of marine environments, operating efficiently within a broad temperature range. Its precise positioning capability, combined with straightforward installation and rugged design, makes the Garmin GPS 24xd GPS Antenna with Heading Sensor an essential component for enhanced navigation accuracy and reliability on the water or in other GNSS-supported applications.

Features:

• Expanded GNSS support for navigation to more locations

• High-sensitivity tracking with a fast GPS update rate

• Accurately pinpoint position regardless of speed

• Water-resistant (IPX7) case for harsh environments

• Multiple mounting options for flexible installation

• Compatible with NMEA 2000 devices for seamless integration
