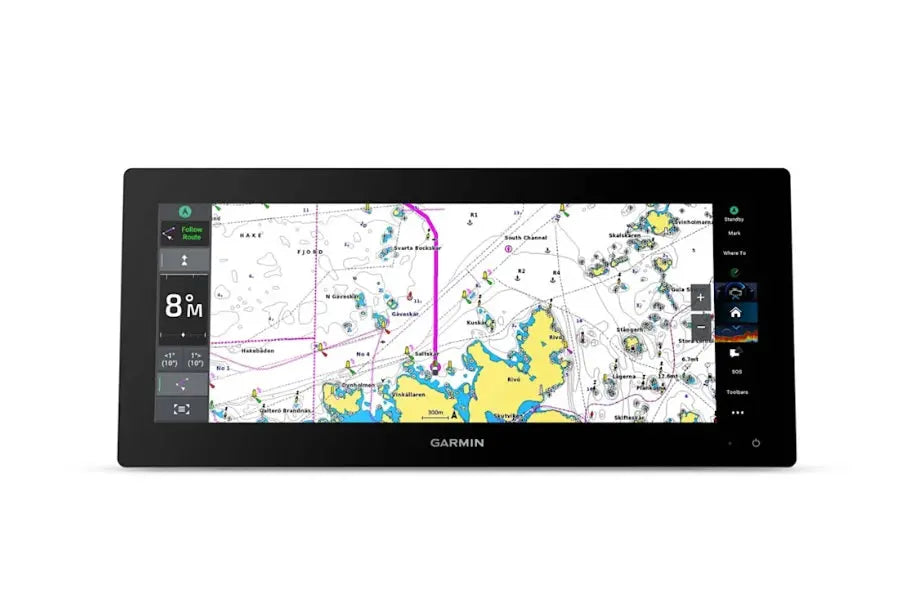

Garmin GPSMAP1523XSV 15in Ultrawide Combo No Transducer Worldwide Basemap

Garmin GPSMAP1523XSV 15in Ultrawide Combo No Transducer Worldwide Basemap

Model: 010-03855-00

• ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING "FLOATING DISPLAY" CONFIGURATIONS


• CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM INTEGRATIONS


• EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY


• NAVIGATE WATERS CONFIDENTLY WITH PRELOADED GARMIN NAVIONICS+ CHARTS ON SELECT MODELS


• SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES


• MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

Stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses.

Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.

Specifications

General

Weight
7.2 lbs (3.26kg)

Water rating
IPX7

Touchscreen
Yes

Display Type
Ultrawide display, IPS

Display Size
13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal)

Display resolution
1920 x 720 pixels

Mounting Options
Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)

Polarized lens viewability
Yes

Maps & Memory

Accepts Data Cards
2 microSD cards (back of device)

Compatible with Garmin SD card reader
Yes (USB card reader)

Waypoints
5000

Track points
50,000

Tracks
50 saved tracks

Navigation Routes
100

Sensors

GPS
Yes

GLONASS
Yes

Galileo
Yes

Has built-in receiver
Yes

Receiver
10 Hz

NMEA 2000 Compatible
Yes

NMEA 0183 Compatible
Yes

Supports WAAS
Yes

Supports multi-band, multi-constellation GPS
Yes (with external GPS antenna)

Electrical Features

Power Input
10 to 32 Vdc

Typical current draw at 12 Vdc
2.44 A

Maximum current draw at 12 Vdc
4.21 A

Maximum power usage at 10 Vdc
56.93 W

Sonar Features

Displays sonar
Yes

Power output
1 kW

Traditional sonar (dual frequency/beam)
Yes

ClearVü
Yes

SideVü
Yes

Panoptix sonar
Yes

LiveScope
Yes

Connections

NMEA 2000 ports
1

NMEA 0183 Input (Rx) Ports
1

NMEA 0183 output (Tx) ports
1

Video input ports
1 (BNC composite)

J1939 ports
1

Garmin Marine Network Ports
2

12-pin transducer ports
1

USB ports
Yes

BLUETOOTH pairing
Yes (BLE)

Garmin Wi-Fi network (local connection)
Yes

Input Voltage
10 to 32 Vdc

Dimensions
15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm)

What's in the Box:

• GPSMAP 1523xsv ultrawide chartplotter


• microSD card preinstalled


• Power cable


• Thin flush mount kit with gasket


• Protective cover


• 8-pin transducer to 12-pin sounder adapter cable


• 2 m backbone/drop cable and T-connector for NMEA 2000 Network


• Documentation
