Garmin GPSMAP743XSV 7in Combo No Tranducer US and Canada GN+

Experience Advanced Navigation with Garmin GPSMAP743XSV

Garmin GPSMAP743XSV 7in Combo No Tranducer US and Canada GN+

Garmin GPSMAP® 743xsv SideVü, ClearVü and Traditional CHIRP Sonar with Mapping

Model: 010-02365-61

• Easily integrate with more engines.
• Connect to compatible third-party devices with OneHelm digital switching.
• Easily build your marine system using the best of network connectivity.
• Navigate any waters with preloaded Garmin Navionics+ charts and mapping.
• See below your boat with built-in sonar capabilities.
• Manage your marine experience from nearly anywhere.

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities.

Pair with Panoptix or LiveScope easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.

New higher-resolution IPS displays for 9" and 12" plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.

Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more3.

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Helm, Garmin Quickdraw Community data and more4.

Connect with some of your favorite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.

Specifications

General

DIMENSION
7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm)

DISPLAY SIZE
6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal)

DISPLAY RESOLUTION
1024 x 600 pixels

DISPLAY TYPE
WSVGA

WEIGHT
2.8 lbs (1.3 kg)

WATER RATING
IPX7

Maps & Memory

ACCEPTS DATA CARDS
2 microSD cards (back of unit)

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Sensors

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

NMEA 0183 COMPATIBLE
Yes

GPS
Yes

GLONASS
Yes

SUPPORTS WAAS
Yes

Built-in Maps

BUILT-IN AUTO GUIDANCE+
Yes

GARMIN NAVIONICS+ INLAND & COASTAL
Yes

TIDE TABLES
Yes

Optional Map Support

GARMIN NAVIONICS+
Yes

GARMIN NAVIONICS VISION+
Yes

TOPO
Yes

STANDARD MAPPING
Yes

GARMIN QUICKDRAW CONTOURS
Yes

RASTER CHART SUPPORT
Yes

Chartplotter Features

SMART MODE COMPATIBLE
Yes

AIS
Yes

DSC
Yes

SUPPORTS FUSION-LINK COMPATIBLE RADIOS
Yes

GSD BLACK BOX SONAR SUPPORT
Yes

GCV BLACK BOX SONAR SUPPORT
Yes

ACTIVECAPTAIN® COMPATIBLE
Yes

GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE
Yes

WIRELESS REMOTE COMPATIBLE
Yes

SAILING FEATURES
Yes

SPOKEN AUDIO ALERTS
Yes

ONEHELM SUPPORT
Yes

Sonar Features & Specifications

DISPLAYS SONAR
Yes

POWER OUTPUT
1 kW

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVü
built-in 260/455/800/1000/1200 kHz

SIDEVü
built-in 260/455/800/1000/1200 kHz

PANOPTIX SONAR
Yes

LIVESCOPE
Yes

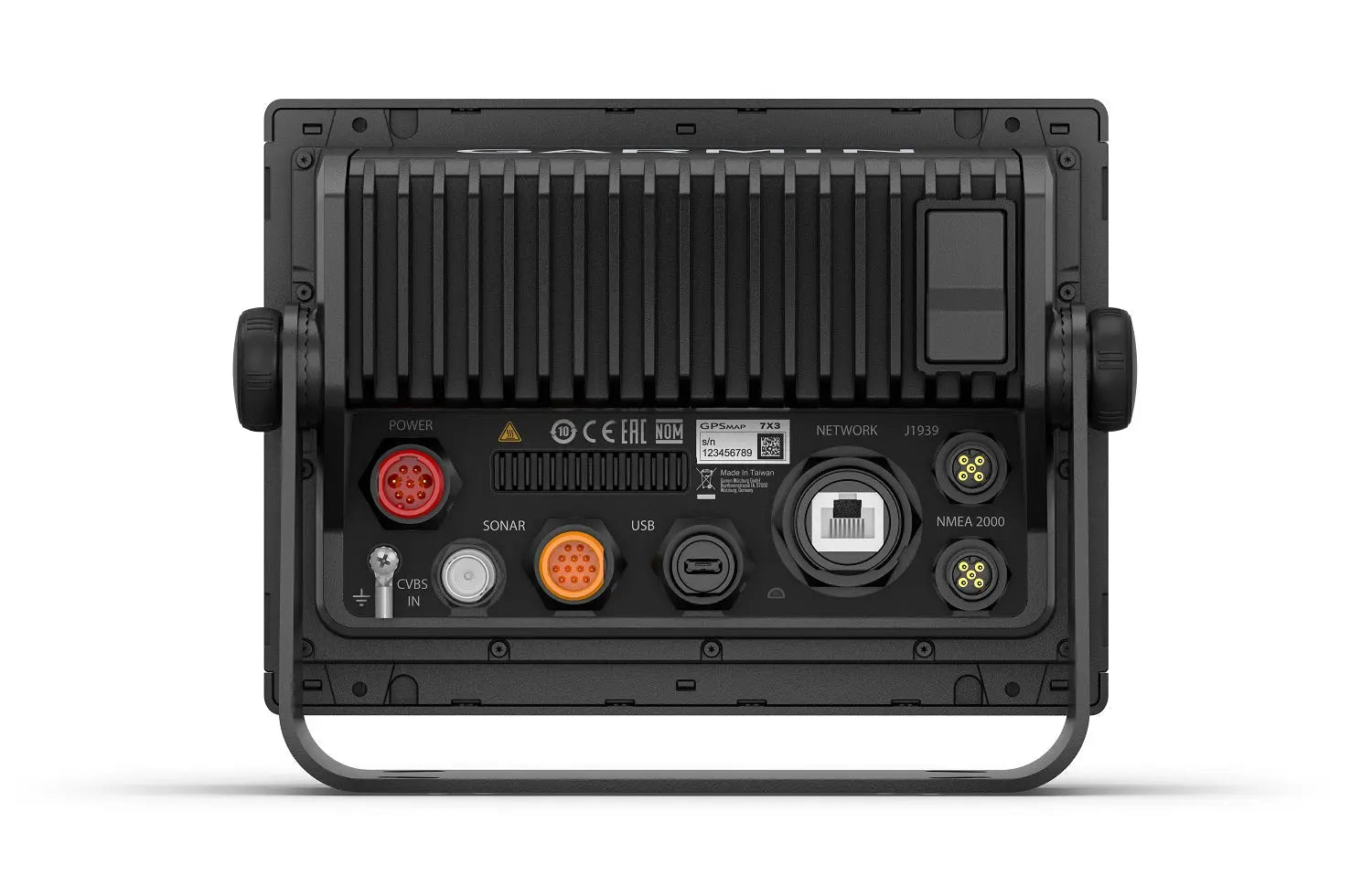

Connections

NMEA 2000 PORTS
1

CONNECTIONS NMEA0183 INPUT PORTS
1

VIDEO INPUT PORTS
1 (BNC composite)

GARMIN MARINE NETWORK PORTS
1

WIRELESS CONNECTIVITY
Yes

J1939 COMPATIBLE
Yes

What's in the Box:

• GPSMAP 743xsv chartplotter
• microSD card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

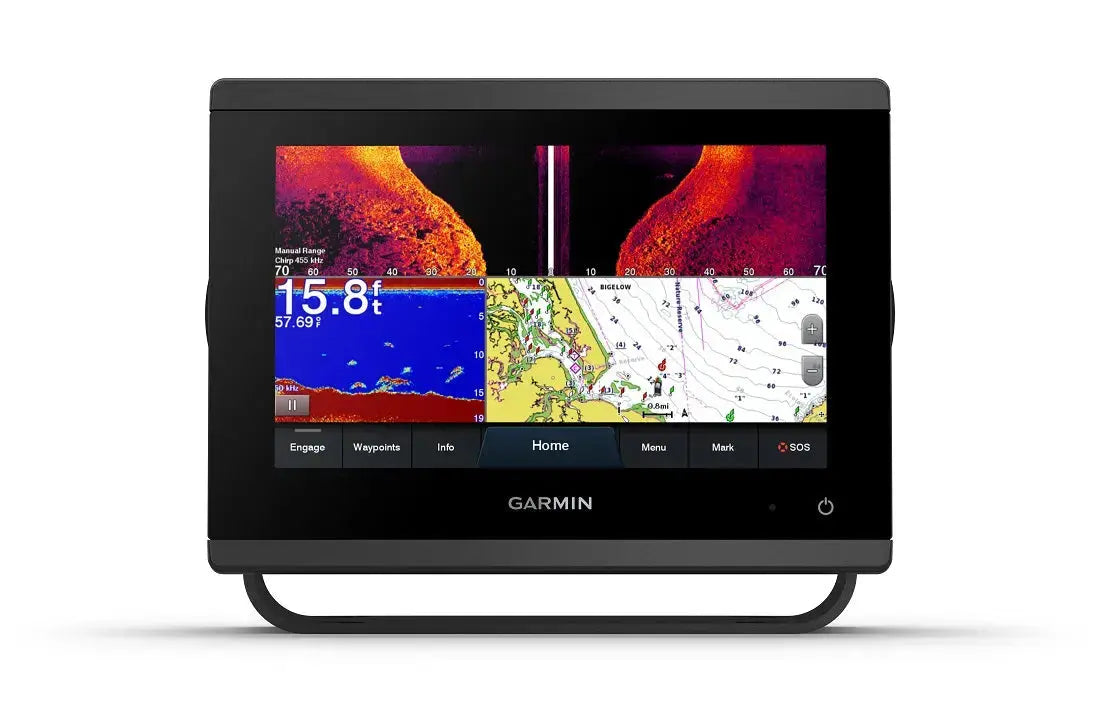

7-Inch High-Resolution Display for Clear Navigation

The Garmin GPSMAP743XSV features a vibrant 7-inch high-resolution touchscreen that ensures clear and easy viewing even in bright sunlight. This bright display allows users to quickly access navigation information, charts, and sonar data with sharp detail and intuitive controls. Designed for boaters navigating US and Canadian waters, the screen size offers an optimal balance between visibility and space-saving design on your dashboard.

Comprehensive US and Canada Mapping with GN+ Capabilities

This Garmin combo unit comes preloaded with detailed maps covering both US and Canadian marine regions, providing extensive chart data to help you navigate confidently. Its GN+ technology enhances GPS accuracy by combining multiple satellite systems, resulting in faster location fixes and improved reliability on the water. Whether you are fishing or cruising, having such precise marine maps at your fingertips ensures safer and more efficient trips.

Combo Unit Without Transducer for Flexible Installation

The GPSMAP743XSV comes as a combo unit without a transducer, giving you the flexibility to choose or install your preferred sonar or fishfinder separately. This allows customization based on your specific boating or fishing needs while still benefiting from Garmin’s reliable GPS and mapping technology. The unit supports various sonar options compatible with Garmin systems, making it adaptable to many vessel types and user preferences.
