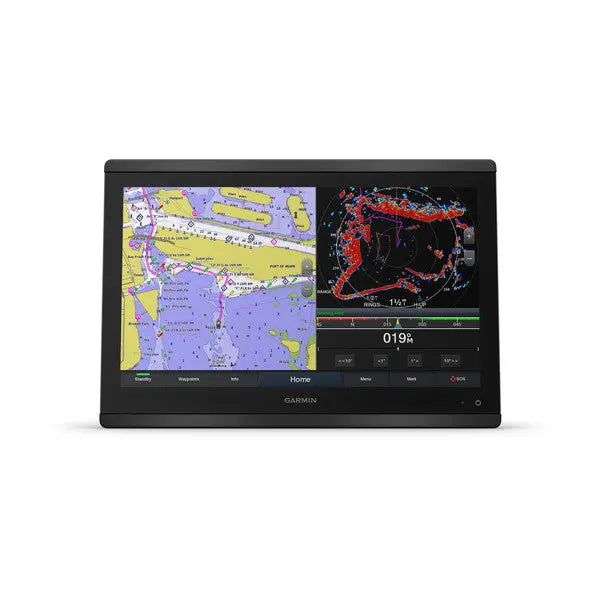

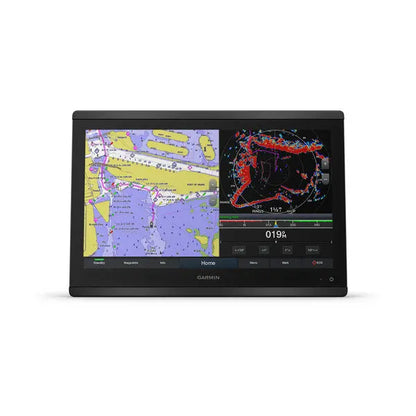

Garmin GPSMAP8616 16in Plotter With US and Canada GN+

Garmin GPSMAP8616 16in Plotter With US and Canada GN+

Garmin GPSMAP8616 16" Plotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada

Model: 010-02093-50

• Features a 16" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses


• Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush


• Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia


• ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind Wireless 2 wind sensor and more


• For full control of your boat on your chartplotter screen, use our exclusive OneHelm feature to connect to many third-party devices


• See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway


• Preloaded Garmin Navionics+ coastal charts and inland mapping feature Auto Guidance+ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there’s support for optional Garmin Navionics Vision+ premium map content.


• Compatible with the live sonar PS51 transducer with FrontVü forward-looking sonar, which helps you avoid running aground


• SmartMode station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more


• Built-in Garmin SailAssist features provide data, displays and prerace guidance needed to gain a competitive edge


• Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart feature, smart notifications, Garmin Quickdraw Community data and more.


• Dual microSD card slots on back of unit for use with the ActiveCaptain® app and cartography cards

The GPSMAP®8616 chartplotter features a 16" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+coastal charts and inland mapping that feature Auto Guidance+technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000®networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartModestation controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelmfeature to connect to many compatible third-party devices. Built-in Garmin SailAssistfeatures provide data, displays and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury®engines by using the SmartCraft®Connect gateway.

Specifications

General

Physical dimensions
15.1" x 10.3" x 3" (38.5 cm x 26.3 cm x 7.6 cm)

Weight
9.6 lbs (4.4 kg)

Water rating
IPX6 and IPX7

Display type
touchscreen IPS display (anti-glare finish)

Display size
13.6" x 7.7" (34.5 cm x 19.5 cm)

Display resolution
FHD; 1920 x 1080 pixels

Power consumption
3.5 A

Antenna
Internal or external over NMEA 2000

Mounting options
Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)

Receiver
10 Hz GPS/GLONASS/Galileo

Garmin Marine Network ports
2

Maps & Memory

Accepts data cards
2 microSD cards (on back)

Waypoints
5,000

Routes
100 (250 waypoints each)

Track log
50,000 points; 50 saved tracks

pre-loaded maps
Garmin Navionics+ coastal and inland water charts for the U.S. and Canada

Outdoor Recreation Features

Tide tables
Yes

Chartplotter Features

Garmin Radar compatible
Yes

Garmin Sonar compatible
Yes

Garmin SmartMode compatible (customizable monitor presets)
Yes

Supports AIS (tracks target ships position)
Yes

Supports DSC (displays position data from DSC-capable VHF radio)
Yes

Supports FUSION-Link compatible radios
Yes

GSD Black Box sonar support
Yes

GCV Black Box sonar support
Yes

ActiveCaptain compatible
Yes

Garmin Helm compatible
Yes

GRID (Garmin Remote Input Device) compatible
Yes

Wireless remote compatible
Yes

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable
Yes (with external black box, sold separately)

Dual-beam (77/200 kHz) sonar capable
Yes (with external black box, sold separately)

Frequencies supported
NA

Transmit power
NA

CHIRP sonar technology
Yes_(when_connected_to_another_compatible_sonar_device)

ClearVü
yes (with GCV black box, sold separately)

SideVü
yes (with GCV black box, sold separately)

Maximum depth
NA

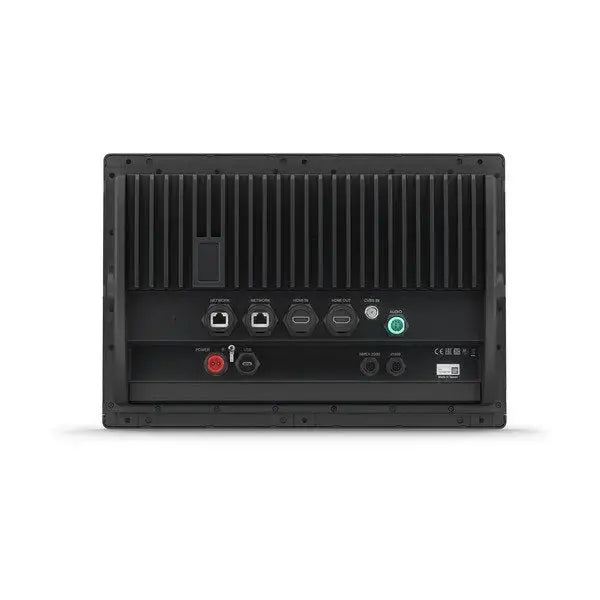

Connections

NMEA 2000® compatible
Yes

Transducer pin numbers
na

NMEA 0183 input ports
1 differential

NMEA 0183 output ports
1 differential

Video input ports
1 - BNC composite
1 - HDMI (HDCP compliant)

Video output ports
1 HDMI

Wireless connectivity
Yes

What's in the Box:

• GPSMAP 8616 Garmin Navionics+ coastal and inland water charts for the U.S. and Canada


• Power cable


• NMEA 2000® drop cable


• NMEA 2000 T-connector


• Documentation


• Flush mount kit


• Sun cover


• Trim piece snap covers
