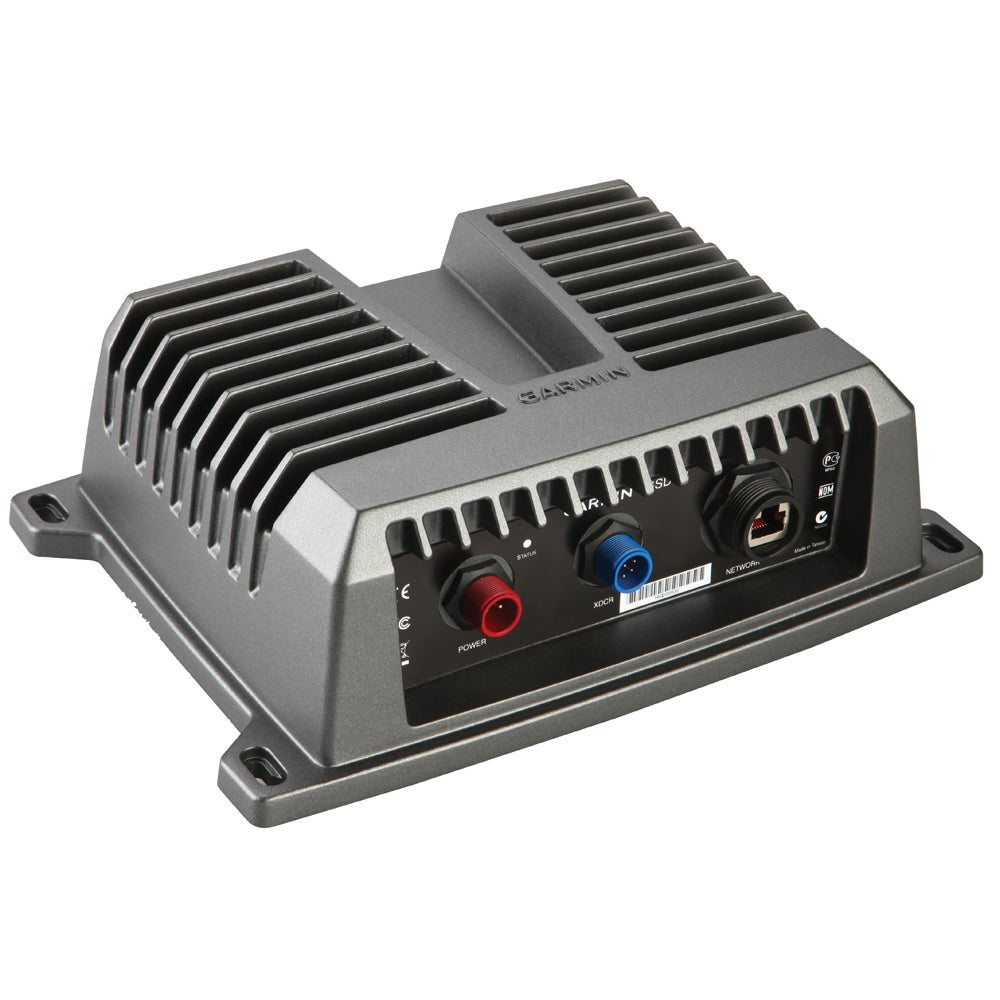

Garmin GSD 24 Digital Black Box Network Sounder for Deep-Water Marine Sonar Imaging

GSD 24 Digital Black Box Network Sounder

The GSD 24 features a vastly improved digital sonar design for superior target definition and deep-water performance.

Get the Whole Picture
With up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible Garmin chartplotter. The system is dual frequency (50/200 kHz) capable and offers selectable transmit power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at depths of up to 5,000 ft (1,500 m). So whether you're out sportfishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, you'll see a clearer picture with enhanced separation of images and deeper bottom detection.
Plug and Play
Thanks to the easy connectivity of the Garmin Marine Network, installation of the GSD 24 is a snap. Once connected, your sonar data will be shared on any compatible chartplotter on the network. Plus, the network's high-speed connections ensure that you get ultra-fast screen updates with minimal delay.

Product Features and Specifications

• Improved digital sonar design provides extraordinary target definition and deep water performance

• Selectable transmit power from 600W, 1kW and 2kW

• Discrete 50kHz and 200kHz frequencies

• Current GSD 22 users can upgrade to a GSD 24 with the included adapter -V users will notice improved performance after upgrading

• Dimensions: 10.85" L x 8.03" W x 3.22" H (27.56 x 20.40 x 8.18 cm)

• Weight: 4.22 lbs (1.9 kg)

• Waterproof IPX 7 standards

Please Note: The GSD 24 is only compatible with GPSMAP 4000, 5000, 6000, 7000, 8000 series.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GSD 24 Digital Black Box Network Sounder offers advanced sonar technology designed for superior target resolution and deep-water performance. This high-definition imaging system enhances your marine navigation and fishing experience by providing detailed underwater views with remarkable clarity. Featuring a digital sonar design, the GSD 24 delivers exceptional target definition, making it ideal for sportfishing, reef exploration, or hazard detection in challenging depths. Its dual-frequency capability (50/200 kHz) and selectable transmit power (600 W, 1 kW, and 2 kW) allow for precise, customizable scanning at depths of up to 5,000 feet (1,500 meters). Whether you’re targeting fish or mapping the seabed, the GSD 24 ensures you see a clearer picture with improved separation of images and deeper bottom detection, all integrated seamlessly with compatible Garmin chartplotters.
Connectivity with the Garmin Marine Network simplifies installation and sharing of sonar data across multiple devices. Once connected, the system provides ultra-fast screen updates with minimal delay, enabling real-time decision-making on the water. The compact design measures approximately 11 inches in length, 8 inches in width, and 3.2 inches in height, with a weight of just over 4 pounds, making it suitable for various vessel configurations. Its waterproof IPX7 rating ensures reliable operation in harsh marine environments. Please note, the GSD 24 is compatible exclusively with Garmin GPSMAP 4000, 5000, 6000, 7000, and 8000 series chartplotters, and can be upgraded from the GSD 22 model using the included adapter.
For installation and operation, detailed guidance is available through the Garmin owners manual linked here. Please be aware that this product contains chemicals known to cause reproductive harm in certain jurisdictions, as detailed in the California Proposition 65 warning. Proper handling and disposal are recommended to ensure safety and environmental compliance.

Features:

• Improved digital sonar design provides extraordinary target definition and deep water performance

• Selectable transmit power from 600W, 1kW, and 2kW for customized depth scanning

• Discrete 50kHz and 200kHz frequencies for versatile underwater imaging

• Easy upgrade path from GSD 22 with included adapter for enhanced performance

• Compact design with waterproof IPX7 rating suitable for demanding marine environments

• Seamless integration with Garmin Marine Network for shared data and fast screen updates
