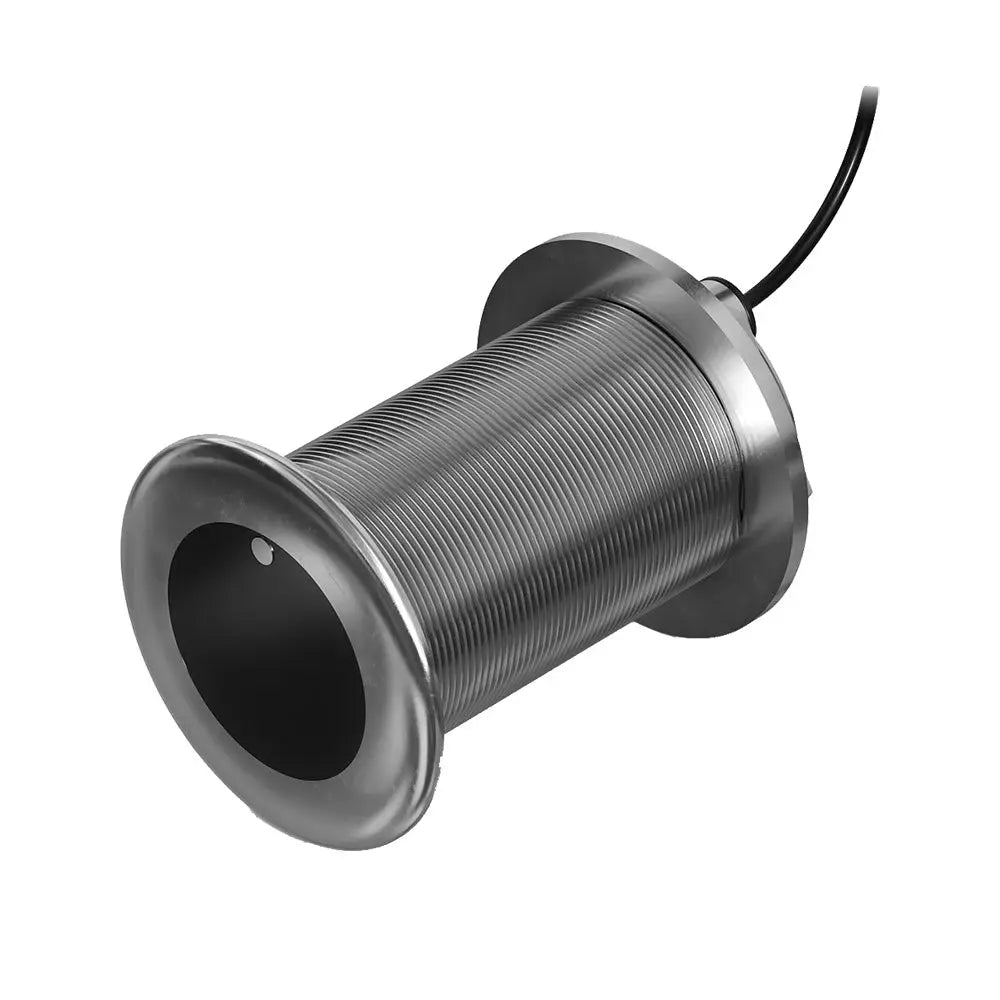

Garmin GT15M-THF 20 Degree 600W Stainless Steel Thru-Hull Transducer for Midsize Boats

GT15M-THF 20 Degree 600W SS Thru-Hull Transducer

Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Midband Chirp Traditional Sonar

This 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200 in saltwater and 1,900 in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology which enables the sonar to configure itself to the transducer being used automatically.

Fits Various Hull Types

Configurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 020 degrees without a fairing block.

Specifications:

• Transducer Frequency: Medium band chirp (85-165 Khz)
• Transducer Power: 600 W
• Transducer Beam Width: 24-16 degrees
• Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater
• Transducer Cable Length: 50 ft.
• Transducer Depth/Speed/Temperature: Depth, temperature
• Transducer Number of Pins: 8-Pin
• Transducer Supported Deadrise/Transom Angles: 20 degrees support hull deadrise angles from 16 degrees to 24 degrees
• Housing Material: Stainless steel

In the Box:

• GT15M-THF transducer
• Jam nut
• Washer
• Thread isolator
• Hull isolator
• Documentation

The Garmin GT15M-THF 20 Degree 600W stainless steel thru-hull transducer is engineered for optimal sonar performance and reduced drag on midsize fishing and cruising boats. Its flush-mounted design ensures a sleek profile while delivering high-definition mid-band CHIRP sonar that accurately defines fish arches, structures, and bottom contours. This transducer effectively reaches depths of up to 1,200 feet in saltwater and 1,900 feet in freshwater, providing clear target separation and detailed imaging for both salt and freshwater environments.

Features:

• Midband Chirp Traditional Sonar: Offers high-definition imaging to define fish targets and structures up to 1,200 feet in saltwater and 1,900 feet in freshwater

• Broad Frequency Range: Pulses from 85 to 165 kHz, allowing customization for different water conditions for crisp fish arches and accurate depth readings

• Optimum Ping Sensitivity: Ensures excellent sonar sensitivity, low noise, high resolution, and effective separation of targets for easier identification

• Thru-Hull Installation: Durable stainless steel housing supports flush mounting with minimal drag and optimal beam orientation for clear sonar returns

• Auto-ID Technology: Enables plug-and-play operation by automatically configuring the transducer with compatible chartplotters

• Versatile Hull Compatibility: Suitable for fiberglass, composite, steel, aluminum, and wood hulls, with tilt versions supporting deadrise angles from 16° to 24°
