SKU:104649

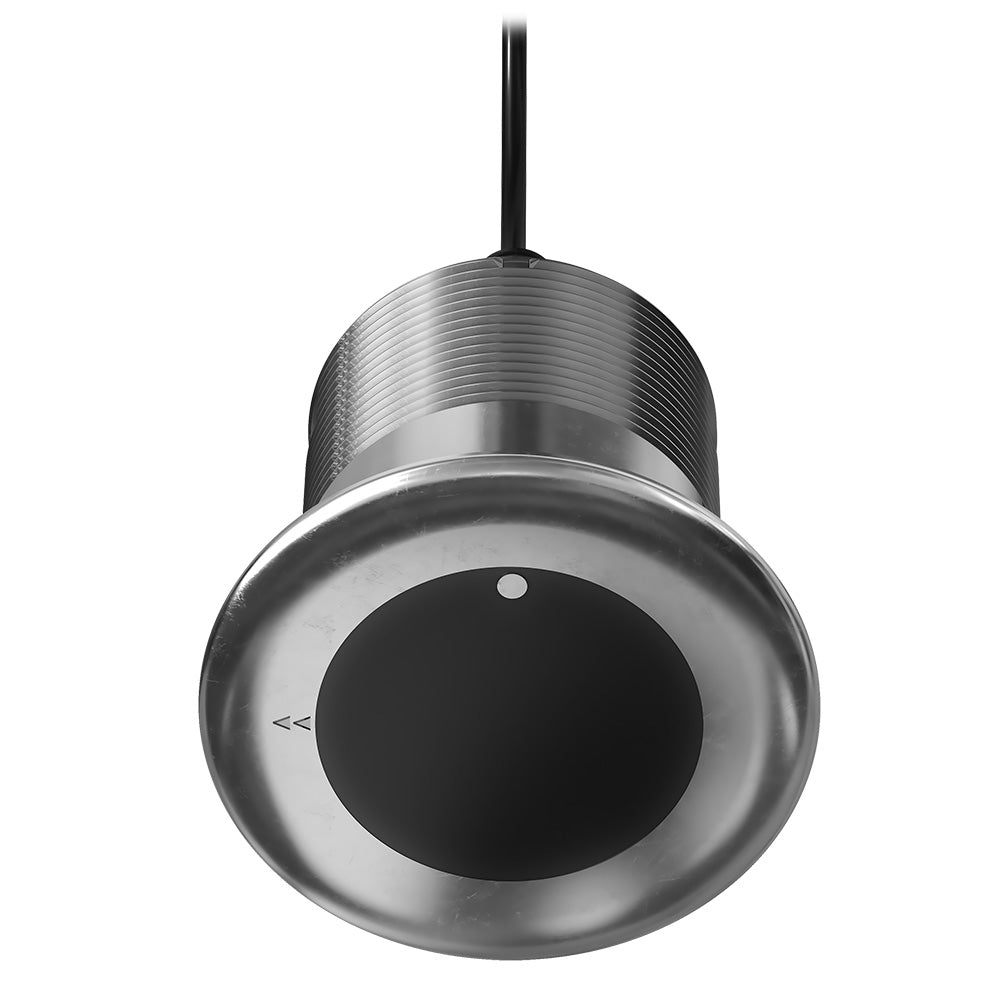

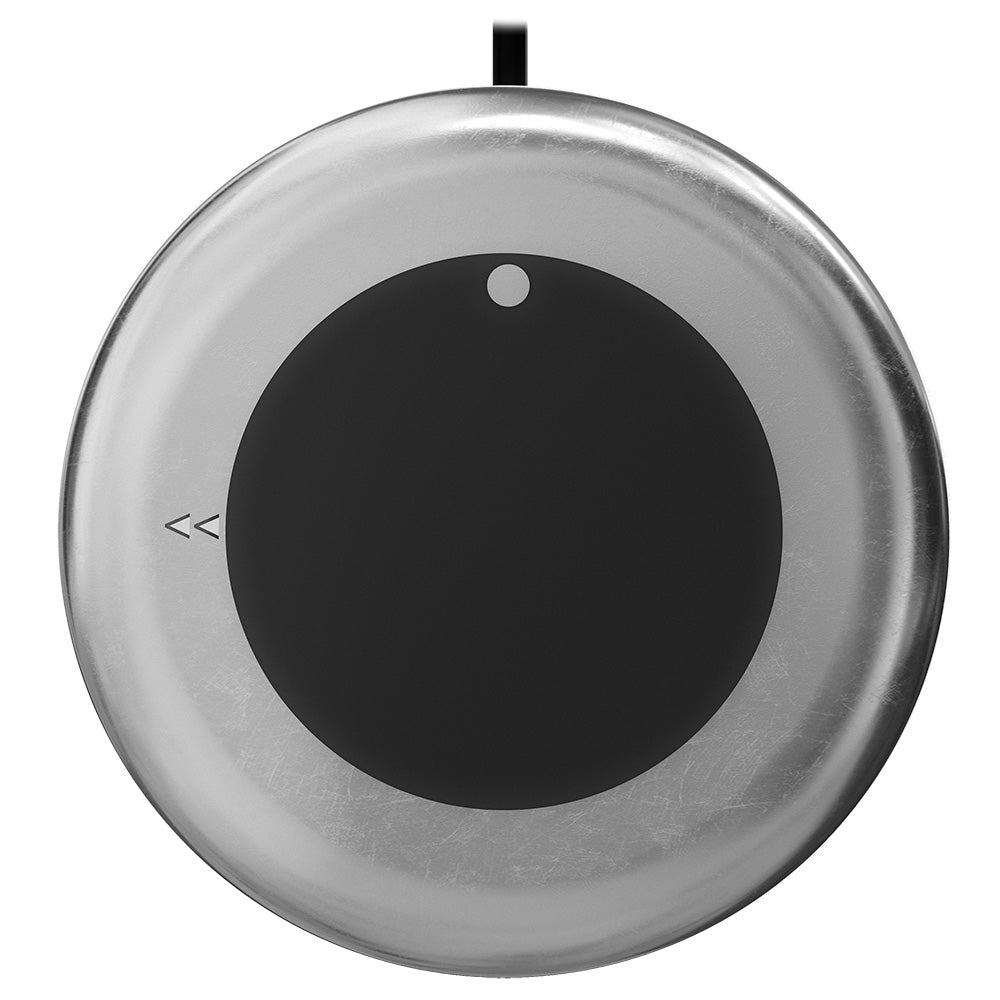

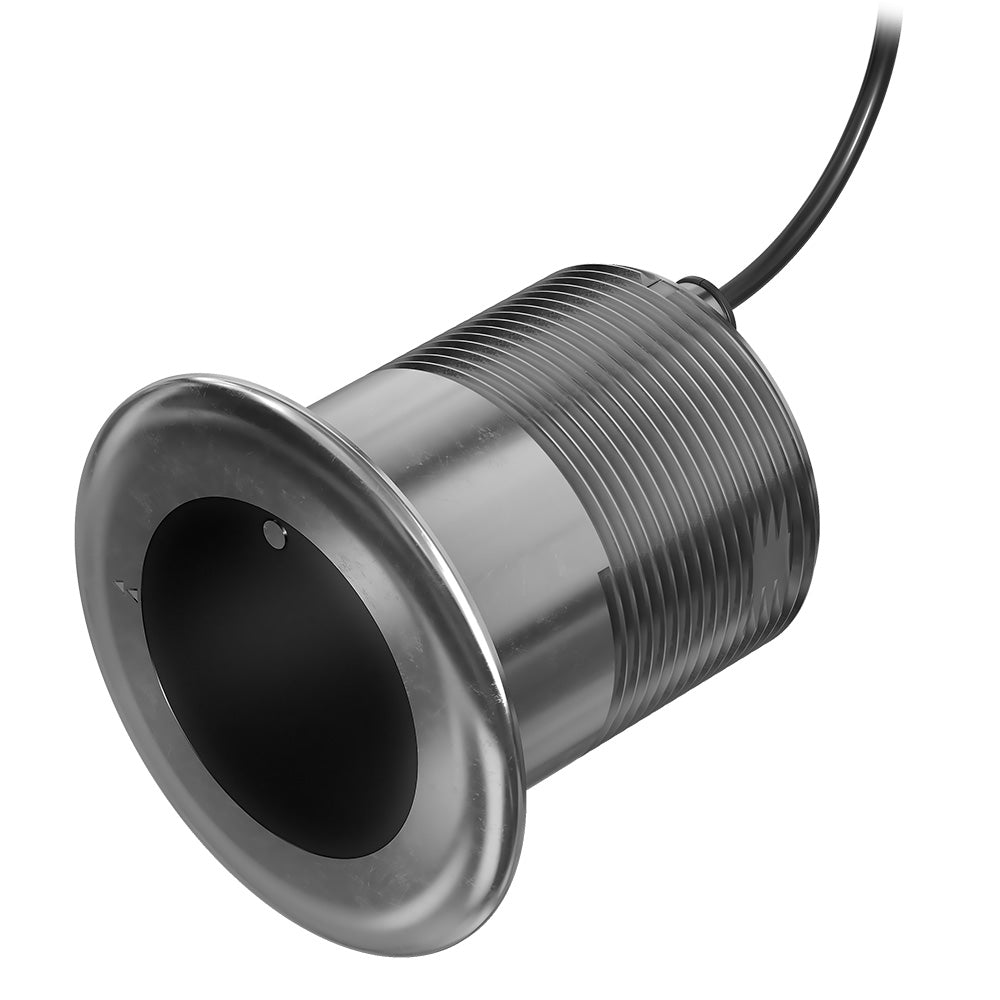

GT17M-THF SS Mid Band Chirp Transducer - 0 - 1kW - 8-Pin
Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.
Features:
Midband Chirp Traditional Sonar
This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800 in saltwater and 2,400 in freshwater.
Broad Frequency Range
Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.
Optimum Ping Sensitivity
Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.
Thru-Hull Installation
A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.
Auto-ID Technology
Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.
Fits Various Hull Types
Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 024 degrees without a fairing block.
In the Box:
Specifications:
The Garmin GT17M-THF stainless steel mid-band CHIRP transducer is designed to deliver high-definition sonar imaging for both fishing and cruising boats. This 1 kW transducer features a flush-mounted, thru-hull design that minimizes drag and provides optimal beam orientation for accurate and detailed fish and structure detection. With a maximum depth capability of 2,400 feet in freshwater and 1,800 feet in saltwater, it ensures reliable performance across various aquatic conditions. Its broad frequency range, spanning from 80 to 165 kHz, allows users to select the ideal frequency for their specific fishing environment, enhancing target separation and bottom detail resolution. The transducer’s beamwidth variability, between 9 and 18 degrees, offers flexible coverage tailored to different search patterns and depths. Equipped with fast-response water temperature sensing, it provides real-time temperature data crucial for fishing strategies. The auto-ID technology simplifies installation by automatically configuring the sonar to recognize the transducer, making it a plug-and-play solution for compatible Garmin chartplotters. The durable stainless steel housing ensures longevity and resistance to harsh marine conditions, while the versatile mounting options accommodate various hull materials, including fiberglass, aluminum, steel, and wood. Designed to support deadrise angles from 0 to 7 degrees, it fits a wide range of boat configurations without requiring a fairing block. The package includes essential mounting hardware such as a jam nut, spacer, washers, set screws, and isolators, facilitating straightforward installation. Whether you are seeking precise fish arches, structure, or bottom detail, the Garmin GT17M-THF transducer offers reliable, high-performance sonar imaging that enhances your marine navigation and fishing experience.
Features:
