SKU:104650

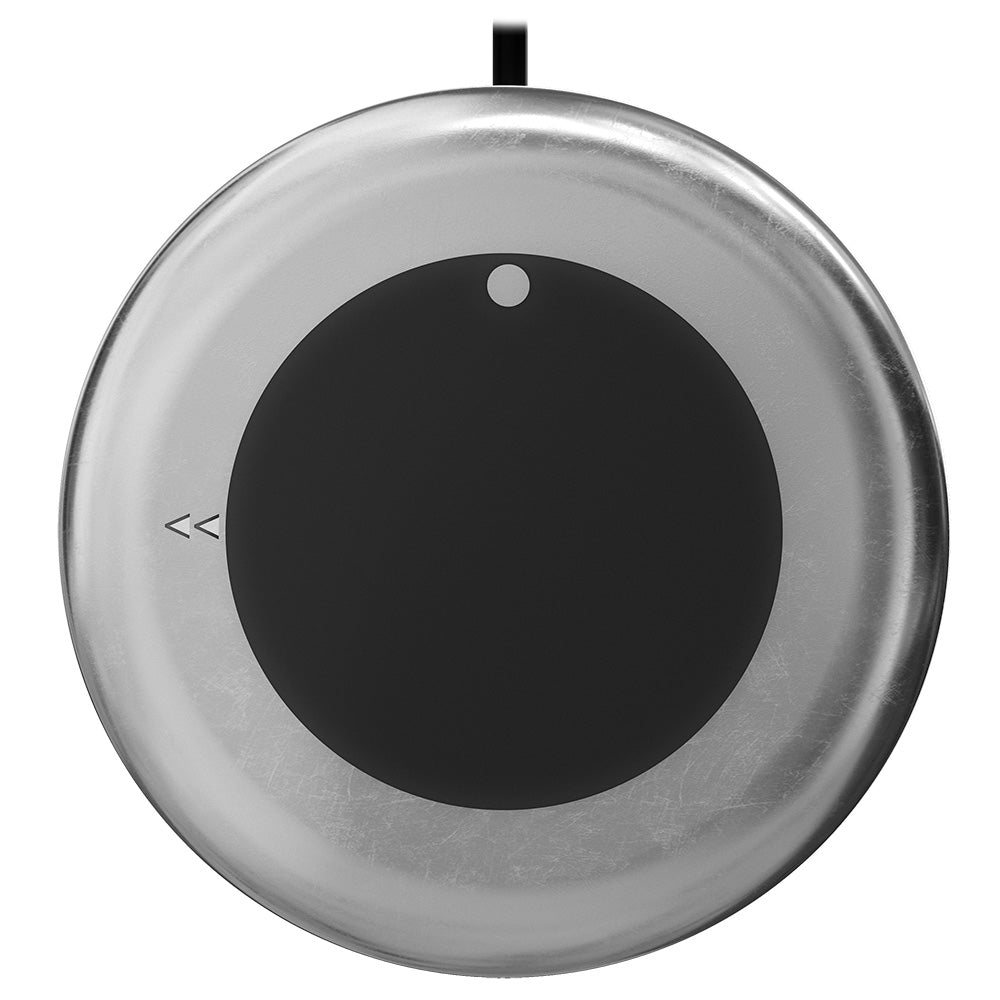

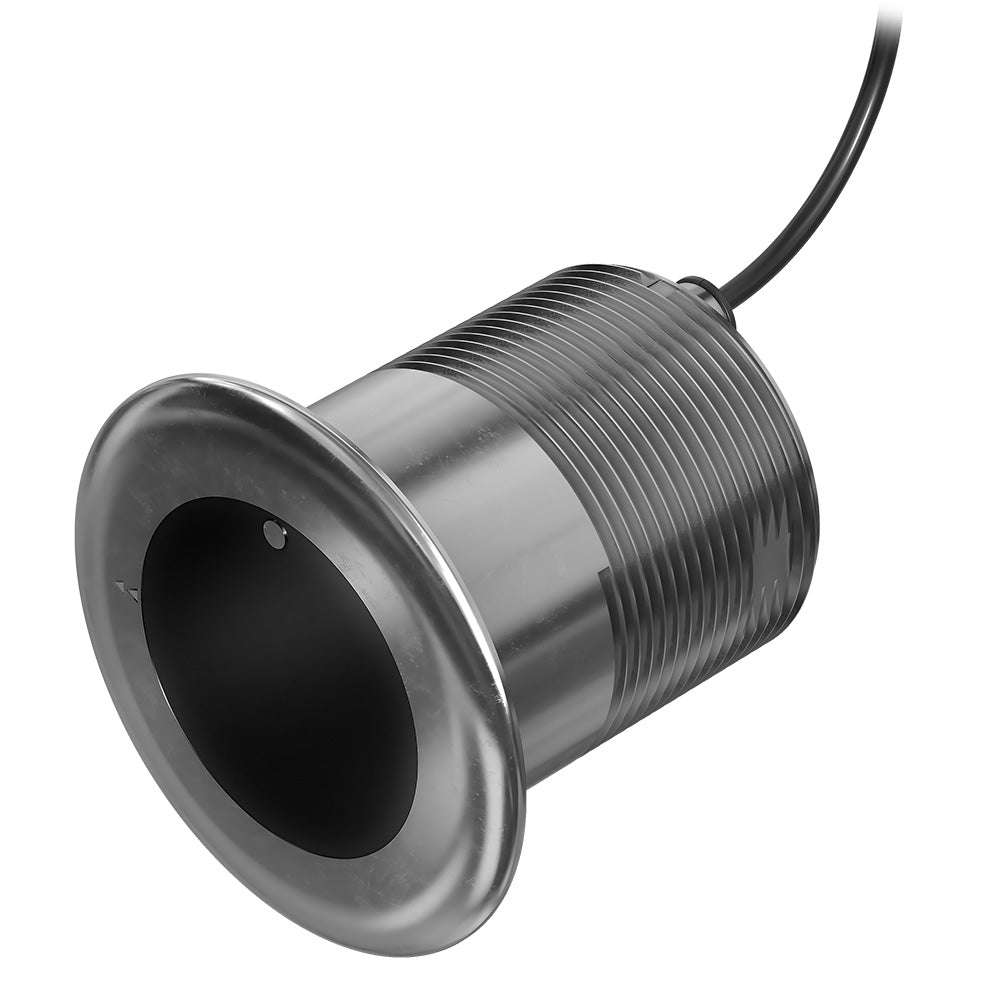

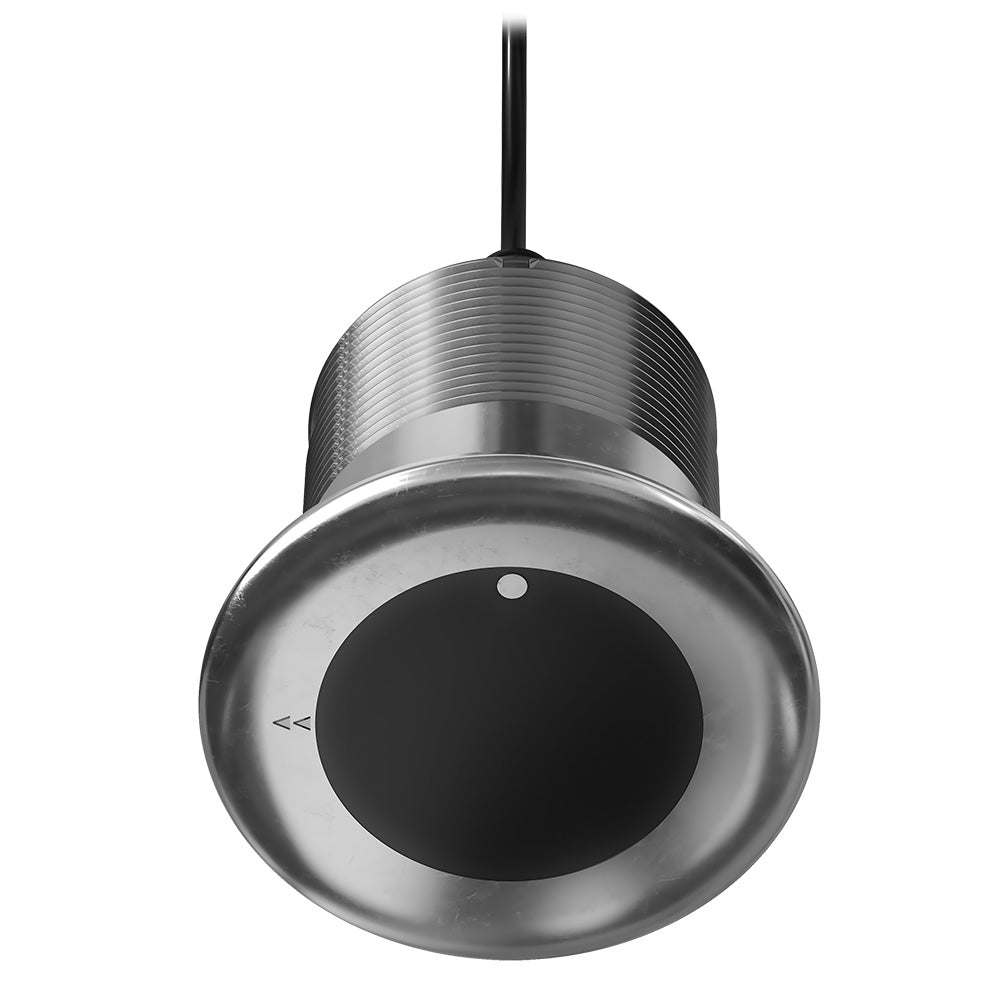

GT17M-THF SS Mid Band Chirp Transducer - 12 - 1kW - 8-Pin
Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.
Features:
Midband Chirp Traditional Sonar
This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800 in saltwater and 2,400 in freshwater.
Broad Frequency Range
Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.
Optimum Ping Sensitivity
Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.
Thru-Hull Installation
A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.
Auto-ID Technology
Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.
Fits Various Hull Types
Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 024 degrees without a fairing block.
In the Box:
Specifications:
The Garmin GT17M-THF SS Mid Band CHIRP Transducer is designed for optimal sonar performance on a variety of boats, offering clear imaging of fish arches, structures, and bottom contours. Its flush-mounted thru-hull construction with a 12-degree tilt ensures minimal drag and precise beam orientation, making it suitable for both fishing and cruising vessels. This transducer provides high-definition CHIRP sonar from 80 to 165 kHz, delivering detailed target separation and accurate depth readings up to 2,400 feet in freshwater and 1,800 feet in saltwater. Its broad frequency range allows users to select the optimal pulse for different fishing environments, enhancing target detection and bottom clarity. Featuring fast-response water temperature sensing and compatibility with RapidReturn sonar, the GT17M-THF ensures quick, reliable readings in various conditions. The auto-ID technology simplifies installation by automatically configuring itself for plug-and-play operation, reducing setup time and ensuring consistent performance. Its versatile design supports a wide range of hull materials, including fiberglass, aluminum, steel, composite, and wood, with adjustable tilt options to accommodate deadrise angles from 8 to 15 degrees. The durable stainless steel housing guarantees longevity and resistance to harsh marine environments. In the box, you'll find the transducer, jam nut, spacer, washers, set screws, thread and hull isolators, and comprehensive documentation, making installation straightforward. Whether used for deep-sea fishing or recreational boating, the Garmin GT17M-THF transducer provides reliable, high-quality sonar imaging to improve your navigation and fishing experience.
Features:
