SKU:104651

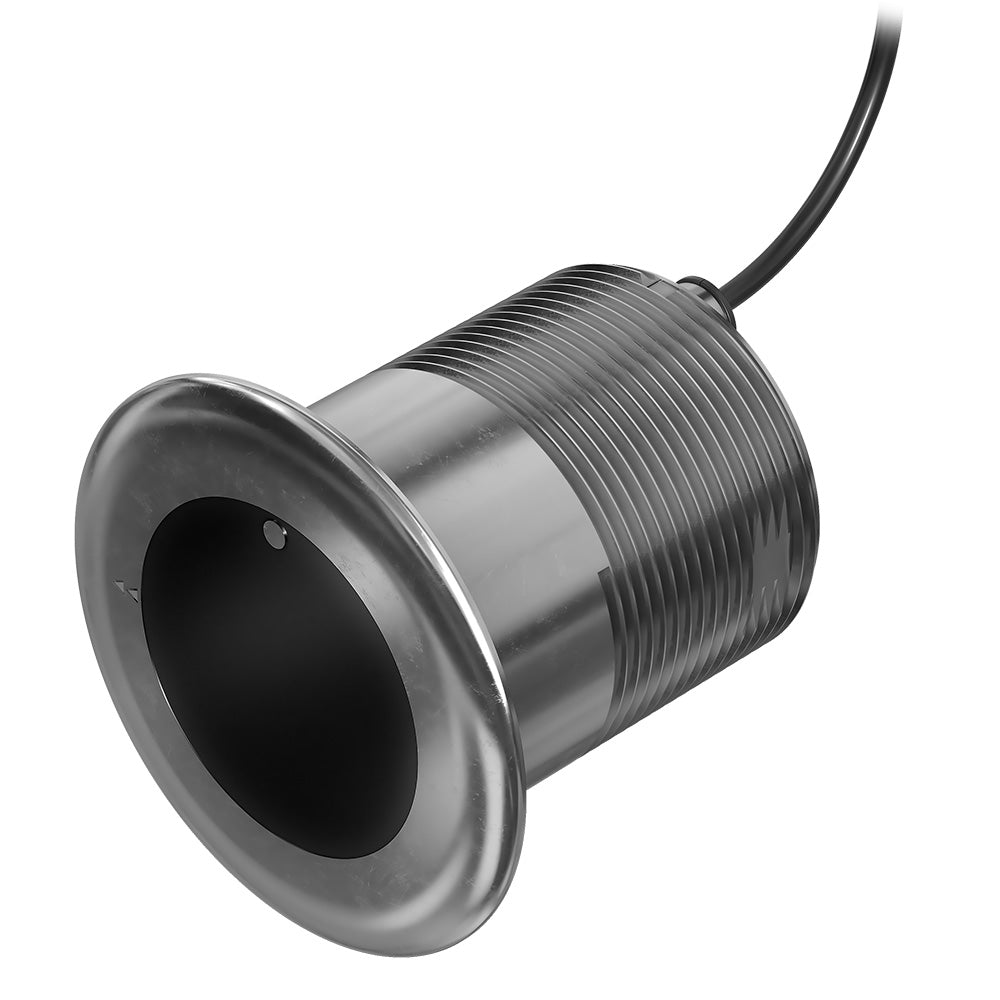

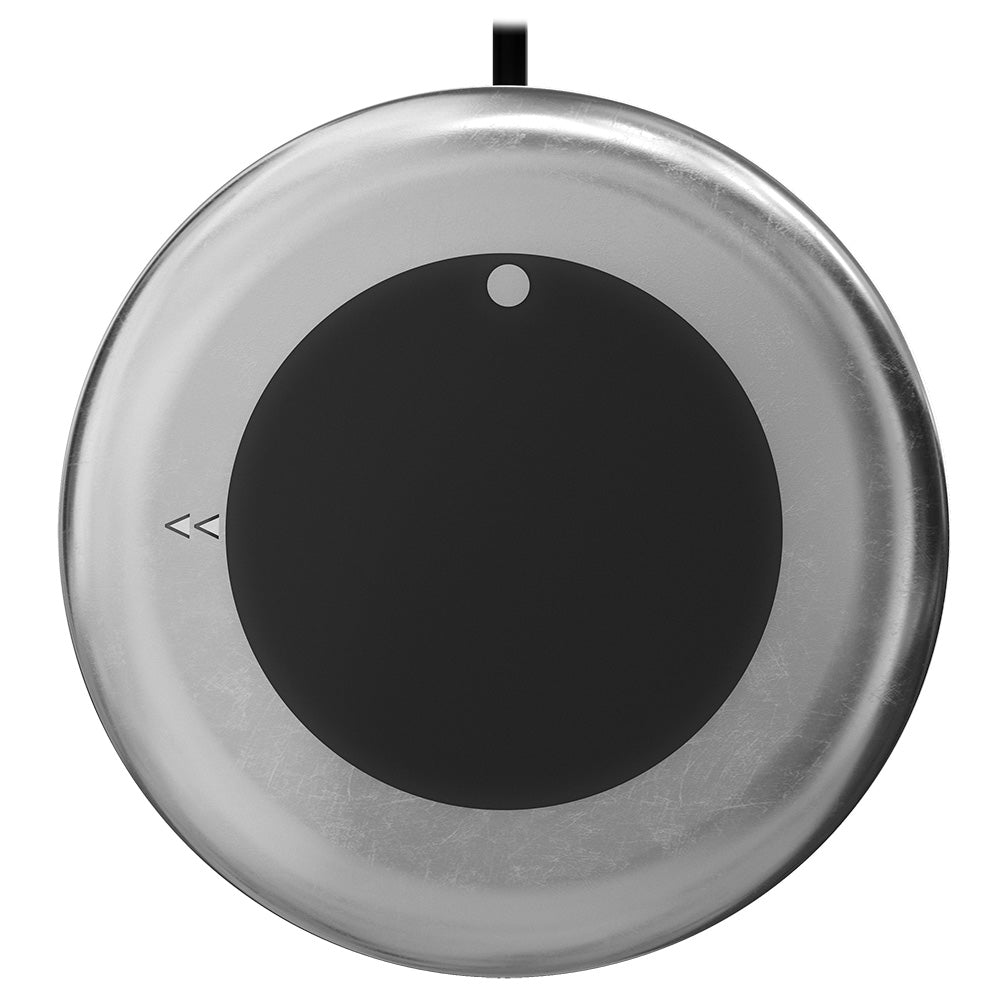

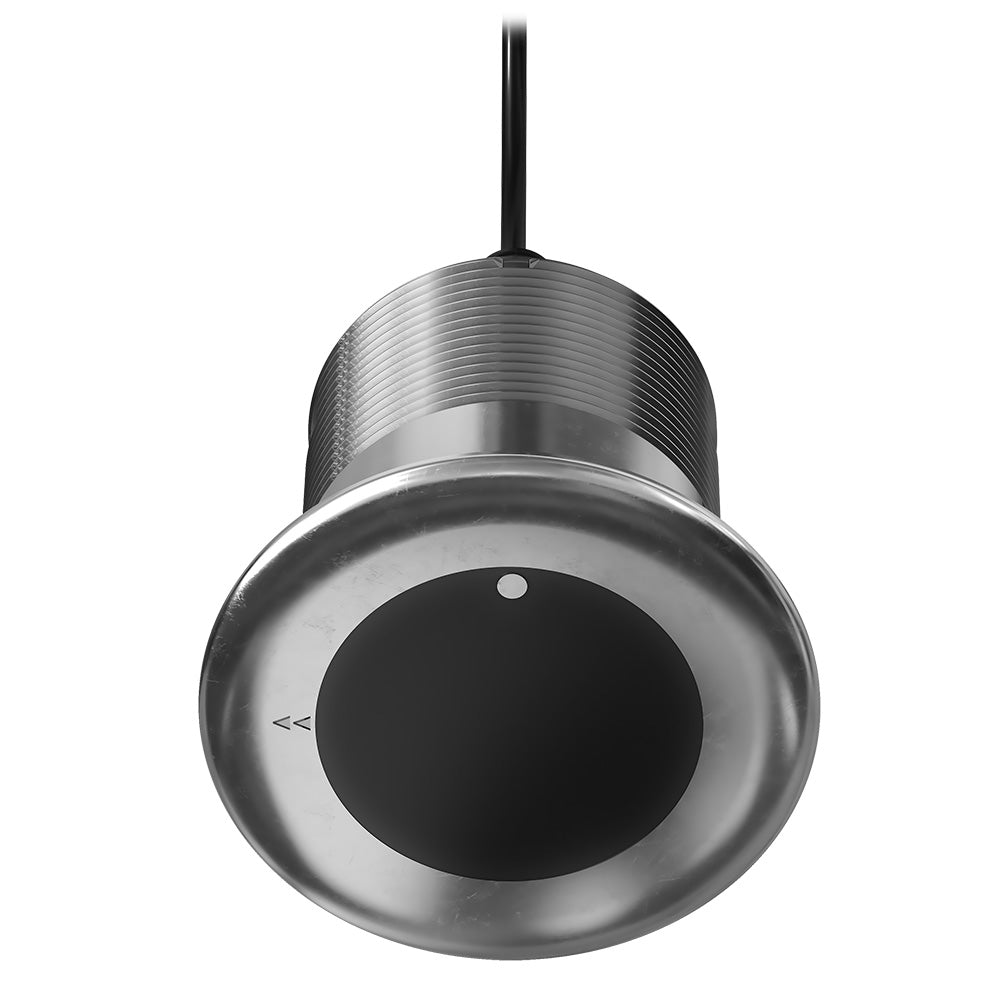

GT17M-THF SS Mid Band Chirp Transducer - 20 - 1kW - 8-Pin
Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.
Features:
Midband Chirp Traditional Sonar
This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800 in saltwater and 2,400 in freshwater.
Broad Frequency Range
Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.
Optimum Ping Sensitivity
Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.
Thru-Hull Installation
A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.
Auto-ID Technology
Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.
Fits Various Hull Types
Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 024 degrees without a fairing block.
In the Box:
Specifications:
The Garmin GT17M-THF SS Mid Band CHIRP Transducer is engineered for optimal sonar performance on both fishing and cruising boats, offering clear and detailed images of fish arches, structures, and bottom contours. Its flush-mounted design minimizes drag, ensuring smooth operation at high speeds while delivering high-definition sonar data. Designed with a stainless steel housing and stem, this transducer provides durability and reliable performance in various marine environments.
With a broad frequency range covering 80-165 kHz, the Garmin GT17M-THF allows users to select the ideal sonar frequency for their specific waters, whether freshwater or saltwater. Its medium band CHIRP technology produces precise target separation and high-resolution images, making it easier to identify fish and underwater structures. The transducer can reach depths of up to 2,400 feet in freshwater and 1,800 feet in saltwater, providing extensive coverage for deep-sea or inland fishing expeditions.
The transducer features auto-ID technology, enabling quick and effortless plug-and-play setup by automatically configuring itself to the compatible Garmin chartplotter. Its beamwidths of 9-18 degrees facilitate a wide coverage area, enhancing search capability while maintaining detailed imaging. The installation is straightforward, supporting various hull types, including fiberglass, aluminum, steel, composite, and wood, with tilt options to accommodate hull deadrise angles from 16 to 24 degrees. This versatility ensures optimal beam orientation and sonar return clarity across different boat configurations.
Included in the package are all necessary mounting hardware, such as jam nuts, spacers, washers, set screws, and isolators, simplifying installation and ensuring a secure fit. The transducer also supports rapid return sonar technology, providing faster and more accurate readings for dynamic fishing conditions. Its 50-foot cable length offers flexibility in mounting and cable management, making it suitable for a variety of vessel sizes and layouts. Whether used for fishing, navigation, or structure scanning, the Garmin GT17M-THF transducer is a reliable choice for serious anglers and boaters seeking detailed underwater insights.
Features:
