Garmin GT24UHD-TM Ultra HD Transom Mount Transducer

Garmin GT24UHD-TM Ultra HD Transom Mount Transducer

Garmin GT24UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Model: 010-12908-00

• One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar


• High wide CHIRP traditional sonar provides remarkably clear target separation and definition


• See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar


• Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

The GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.

Ultra High-Definition scanning sonar shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü scanning sonar. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.

¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combos

Specifications

Frequency

Traditional CHIRP
CHIRP High Wide (150-240 kHz)

Ultra High-Definition ClearVü
0.8 MHz (800 kHz), CHIRP range: 760-880 kHz

Ultra High-Definition SideVü
NA

SideVü
NA

Power

Traditional CHIRP
350 W

Ultra High-Definition ClearVü
350 W

Ultra High-Definition SideVü
NA

SideVü
NA

Beamwidth

Traditional CHIRP
Adjustable from 16° to 24° in 1° steps

Ultra High-Definition ClearVü
0.94° x 60°

Ultra High-Definition SideVü
NA

SideVü
NA

Maximum depth

Traditional CHIRP
800’

Ultra High-Definition ClearVü
200'

Ultra High-Definition SideVü
NA

SideVü
NA

Other

Sensors
Depth and Temperature

Number of pins
8-pin (blue connector)

Cable length
20 ft.

Supported deadrise/Transom angles
0°-70° degree transom

What's in the Box:

• GT24UHD-TM transducer

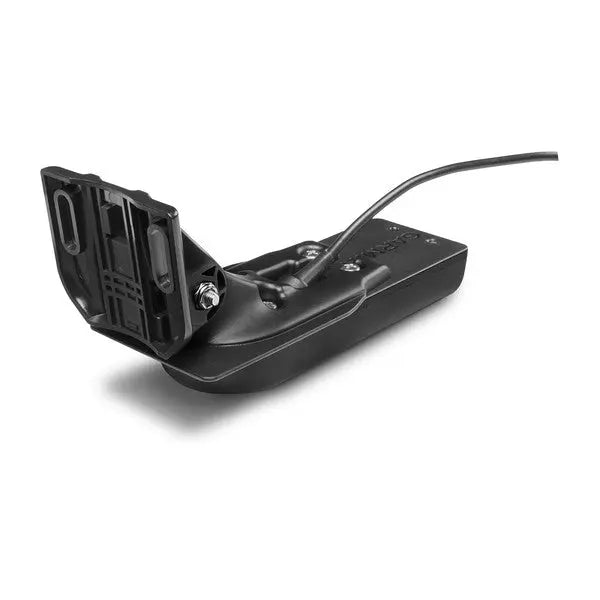

• Transom mount

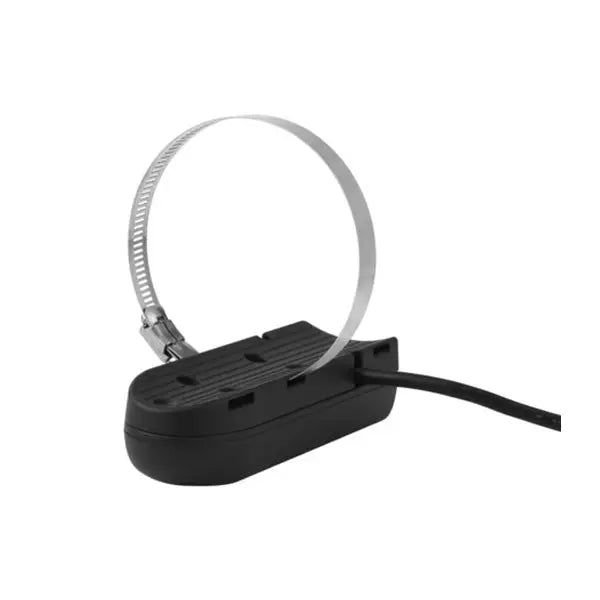

• Trolling motor mount


• Mounting hardware


• Documentation
