Garmin GT36UHD-TM Transom Mount Transducer

Garmin GT36UHD-TM Transom Mount Transducer Overview

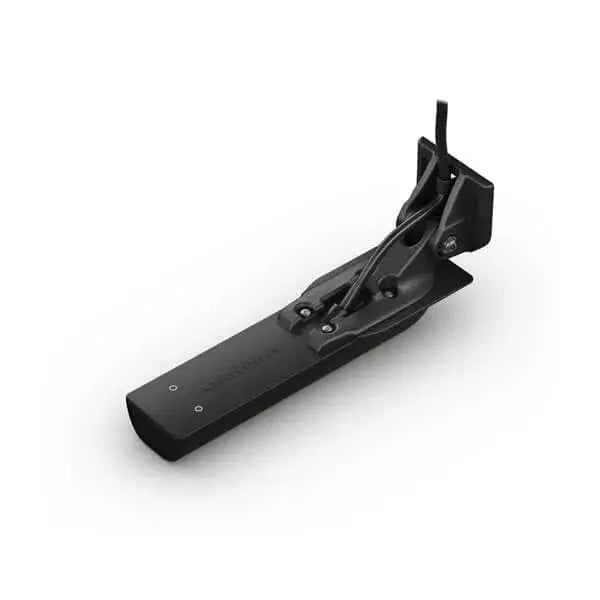

Garmin GT36UHD-TM Transom Mount Transducer

Model: 010-13072-00

• See everything below and around your boat with Ultra High-Definition scanning sonar.
• Multiple sonar frequencies have you covered - no matter what depth you're fishing.
• See targets and structure in bright, vivid color.
• Mount this transducer your way - transom or trolling motor.

This transducer offers ultimate versatility, featuring Ultra High-Definition ClearVu and SideVu scanning sonars for crystal-clear images of fish and structure, so you can spend more time catching fish.

Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.

See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVu sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

Use the perfect frequency for the waters you're fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Everyone's setup is different. That's why we've included transom and trolling motor mounting hardware.

Use a Y-cable (sold separately) to pair with a Garmin GT8HW-IH or Garmin GT15M-IH transducer (each sold separately) to add high wide CHIRP traditional sonar for remarkably clear target separation.

Specifications

FREQUENCYClearVu/SideVu 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)

POWER
ClearVu/SideVu 500 W

BEAMWIDTH
ClearVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz

MAXIMUM DEPTH
ClearVu: 400 ft; SideVu: 500 ft

DEPTH/SPEED/TEMPERATURE
Depth and temperature

NUMBER OF PINS
12

CABLE LENGTH
25 ft

SUPPORTED DEADRISE/TRANSOM ANGLES
SUPPORTED DEADRISE/TRANSOM ANGLES

Advanced Garmin Sonar Technology

The Garmin GT36UHD-TM transom mount transducer delivers cutting-edge sonar technology designed to provide boaters with clear and accurate underwater imaging. Featuring Ultra High Definition imaging and traditional CHIRP sonar, this device ensures superior target separation and detail, making it easier to identify fish and underwater structures. Built for reliability and performance, the Garmin transducer optimizes your marine electronics setup by providing essential data in any water condition, improving your fishing and navigation experience significantly.

Durable and Easy to Install Design

Designed with boating enthusiasts in mind, the Garmin GT36UHD-TM combines durability with ease of installation. Its transom mount setup is straightforward, requiring minimal tools and allowing quick attachment to a variety of boats. Constructed from corrosion-resistant materials, this transducer withstands harsh marine environments and consistent water exposure. The compact design minimizes drag, ensuring it does not affect boat performance, while maintaining the high-quality signal transmission Garmin is known for.

Versatile Compatibility and Performance

The Garmin GT36UHD-TM transducer is compatible with a wide range of Garmin fishfinder and chartplotter systems, allowing seamless integration into existing marine electronics. It operates effectively across multiple frequencies, supporting both traditional 77/200 kHz CHIRP sonar and Ultra High Definition ClearVü scanning sonar. This versatility enables users to get a comprehensive underwater view, from wide-area scanning to pinpoint fish targets, making it an indispensable tool for serious anglers and marine navigators alike.
