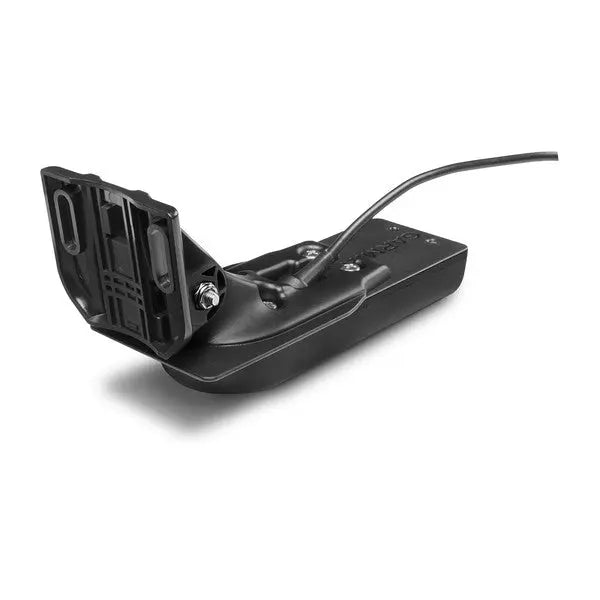

Garmin GT54UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Model: 010-12909-00

• One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar


• High wide CHIRP traditional sonar provides remarkably clear target separation and definition


• See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar


• Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts


• Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’

The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.

Ultra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.

¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combos

Specifications

Frequency

Traditional CHIRP
CHIRP High Wide (150-240 kHz)

Ultra High-Definition ClearVü
0.8 MHz (800 kHz), CHIRP range: 760-880 kHz

Ultra High-Definition SideVü
1.2 MHz (1,200 kHz), CHIRP range: 1,080-1,230 kHz

SideVü
455 kHz, CHIRP range: 425-485 kHz

Power

Traditional CHIRP
350 W

Ultra High-Definition ClearVü
350 W

Ultra High-Definition SideVü
350 W

SideVü
350 W

Beamwidth

Traditional CHIRP
Adjustable from 16° to 24° in 1° steps

Ultra High-Definition ClearVü
0.94° x 60°

Ultra High-Definition SideVü
0.64° x 52°

SideVü
1.62° x 50°

Maximum depth

Traditional CHIRP
800’

Ultra High-Definition ClearVü
200'

Ultra High-Definition SideVü
125' to each side; 250' total, at a maximum depth of 30'

SideVü
500' to each side

Other

Sensors
Depth and Temperature

Number of pins
12-pin (orange connector)

Cable length
20 ft.

Supported deadrise/Transom angles
0°-70° degree transom

What's in the Box:

• GT54UHD-TM transducer


• Transom mount

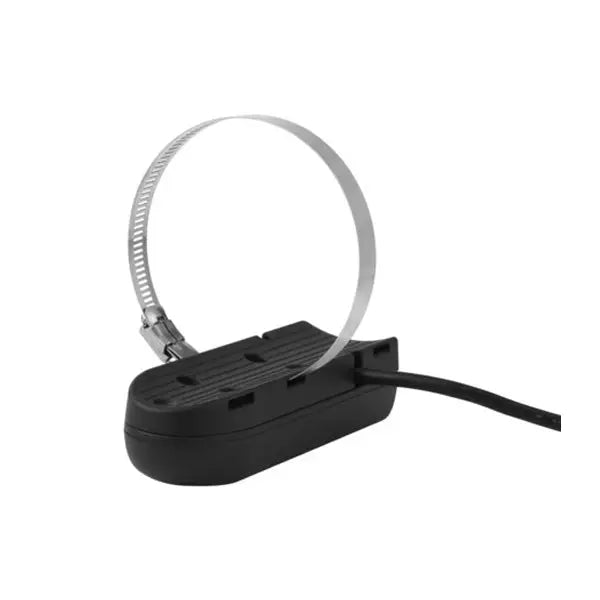

• Trolling motor mount


• Mounting hardware


• Documentation
