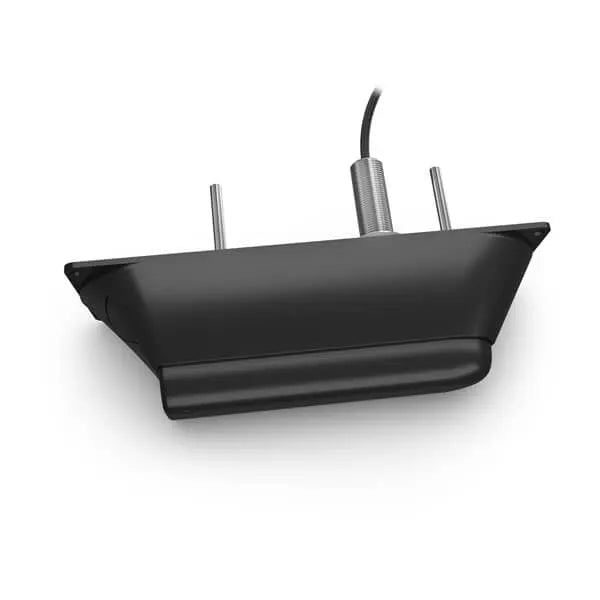

Garmin GT56UHD-TH Transducer Thru -Hull with 12-Pin
Garmin GT56UHD-TH Thr-Hull Transducer
Model: 010-02732-10
This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVu and SideVu scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.
Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.
See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVu sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.
Experience remarkably clear target separation and definition up to 800 feet below your boat.
Experience remarkably clear target separation and definition up to 800 feet below your boat.
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Everyone's setup is different. That's why we've included transom, trolling motor and thru-hull mounting hardware.
Specifications
TRANSDUCER CABLE LENGTH25 ft
TRANSDUCER FREQUENCY
Traditional High-wide CHIRP (150-240 kHz); ClearVu/SideVu 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
TRANSDUCER POWER
Traditional 350 W; ClearVu/SideVu 500 W
TRANSDUCER BEAMWIDTH
Traditional CHIRP: 24-16; ClearVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
TRANSDUCER MAXIMUM DEPTH
Traditional: 800 ft freshwater; ClearVu: 400 ft; SideVu: 500 ft
TRANSDUCER DEPTH/SPEED/TEMPERATURE
Depth and temperature
TRANSDUCER NUMBER OF PINS
12
TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES
0 deg-70 deg degree transom (GT56UHD-TM)
What's in the Box:
The Garmin GT56UHD-TH Transducer Thru-Hull with 12-Pin connector brings advanced sonar technology to your marine navigation system. Designed specifically for accurate underwater imaging, this transducer provides ultra-high-definition sonar signals, enabling crisp and clear details of underwater structures, fish, and bottom composition. Integrating seamlessly with compatible Garmin displays, it enhances your ability to navigate safely and fish effectively. The 12-pin connector supports easy installation and reliable connectivity, making it a trusted choice for professional and recreational mariners alike.
Built with marine-grade materials, the Garmin GT56UHD-TH is engineered to withstand harsh marine environments. Its thru-hull mounting style ensures optimal transducer placement below the waterline, reducing signal distortion and maximizing sonar performance. The rugged construction resists corrosion and damage from saltwater exposure, offering long-lasting reliability. The transducer is designed for easy installation on a variety of hull types, making it a versatile option for boat owners seeking durable and effective sonar solutions that maintain performance over time.
The Garmin GT56UHD-TH Transducer is equipped with a 12-pin connector that facilitates quick integration with select Garmin sonar units. This compatibility ensures users benefit from the latest Garmin sonar features without complex modifications. Installation is straightforward, thanks to the premium quality connector and thorough instructions for thru-hull mounts. Whether upgrading an existing system or equipping a new vessel, this transducer’s design ensures accurate data transmission and minimal signal loss, contributing to a superior sonar experience on the water.
