Garmin GT56UHD-THP Transducer Thru -Hull Pair with 12-Pin

Garmin GT56UHD-THP Transducer: Advanced Underwater Performance

Garmin GT56UHD-THP Transducer Thru -Hull Pair with 12-Pin

Garmin GT56UHD-THP Thru-Hull Transducer Pair

Model: 010-02732-11

• See everything below and around your boat with Ultra High-Definition scanning sonar.
• High wide CHIRP traditional sonar delivers target separation like no other.
• Multiple sonar frequencies have you covered - no matter what depth you're fishing.
• See targets and structure in bright, vivid color.
• Mount this transducer your way - transom, trolling motor or thru-hull.

This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVu and SideVu scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.

Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.

See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVu sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

Experience remarkably clear target separation and definition up to 800 feet below your boat.

Experience remarkably clear target separation and definition up to 800 feet below your boat.

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Everyone's setup is different. That's why we've included transom, trolling motor and thru-hull mounting hardware.

Specifications

TRANSDUCER CABLE LENGTH25 ft

TRANSDUCER FREQUENCY
Traditional High-wide CHIRP (150-240 kHz); ClearVu/SideVu 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)

TRANSDUCER POWER
Traditional 350 W; ClearVu/SideVu 500 W

TRANSDUCER BEAMWIDTH
Traditional CHIRP: 24-16; ClearVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz

TRANSDUCER MAXIMUM DEPTH
Traditional: 800 ft freshwater; ClearVu: 400 ft; SideVu: 500 ft

TRANSDUCER DEPTH/SPEED/TEMPERATURE
Depth and temperature

TRANSDUCER NUMBER OF PINS
12

TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES
0 deg-70 deg degree transom (GT56UHD-TM)

Dimensions (without mount):
218.5 mm x 51.8 mm x 27.7 mm Each

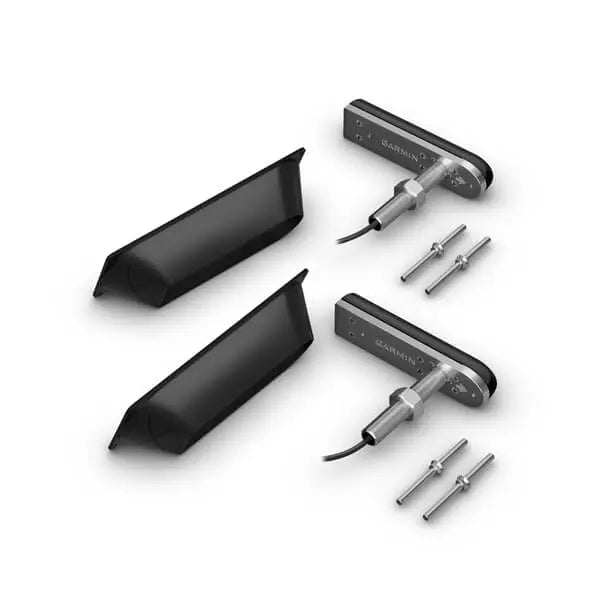

What's in the Box:

• GT56UHD-TH transducer x 2
• Stainless steel stem x 2
• Fairing block x 2
• Isolation plate and bushing x 2
• Y-Cable
• Mounting hardware
• Documentation

Superior Imaging Technology

The Garmin GT56UHD-THP transducer is designed to enhance your marine experience with its advanced imaging capabilities. Featuring a thru-hull design, it provides clear and detailed underwater images essential for anglers and boaters. The transducer supports ultra-high-definition sonar frequencies that improve fish detection, structure targeting, and seabed clarity. Compatible with Garmin’s network of marine devices, this transducer delivers reliable, accurate readings to keep you informed below the surface.

Durability and Installation

Built for long-lasting marine use, the Garmin GT56UHD-THP transducer is constructed from high-quality materials to withstand harsh water conditions. Its thru-hull design ensures a secure installation below the waterline, providing consistent performance without interference. The included 12-pin connector facilitates easy integration with Garmin fishfinders and chartplotters, making setup straightforward for boat owners and professionals looking for dependable sonar performance.

Versatile Compatibility and Performance

The Garmin GT56UHD-THP transducer is compatible with a broad range of Garmin sonar systems, offering flexibility for different vessel types and user needs. Its multi-frequency operation allows seamless switching between frequencies for optimized sonar imaging in various water conditions. Whether you’re fishing in saltwater or freshwater, this transducer provides enhanced target separation and better fish detection, supporting effective navigation and unparalleled underwater visibility.
