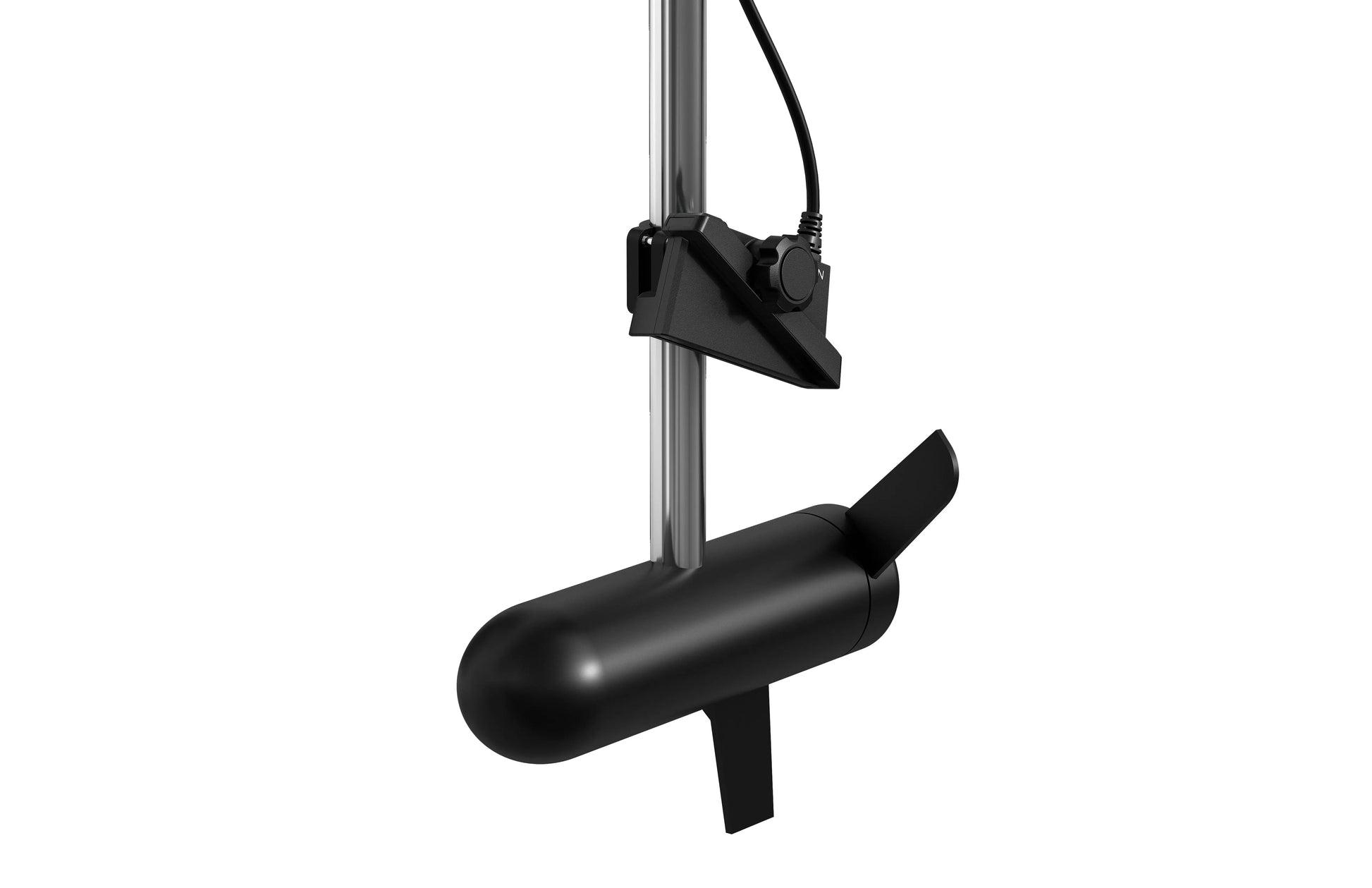

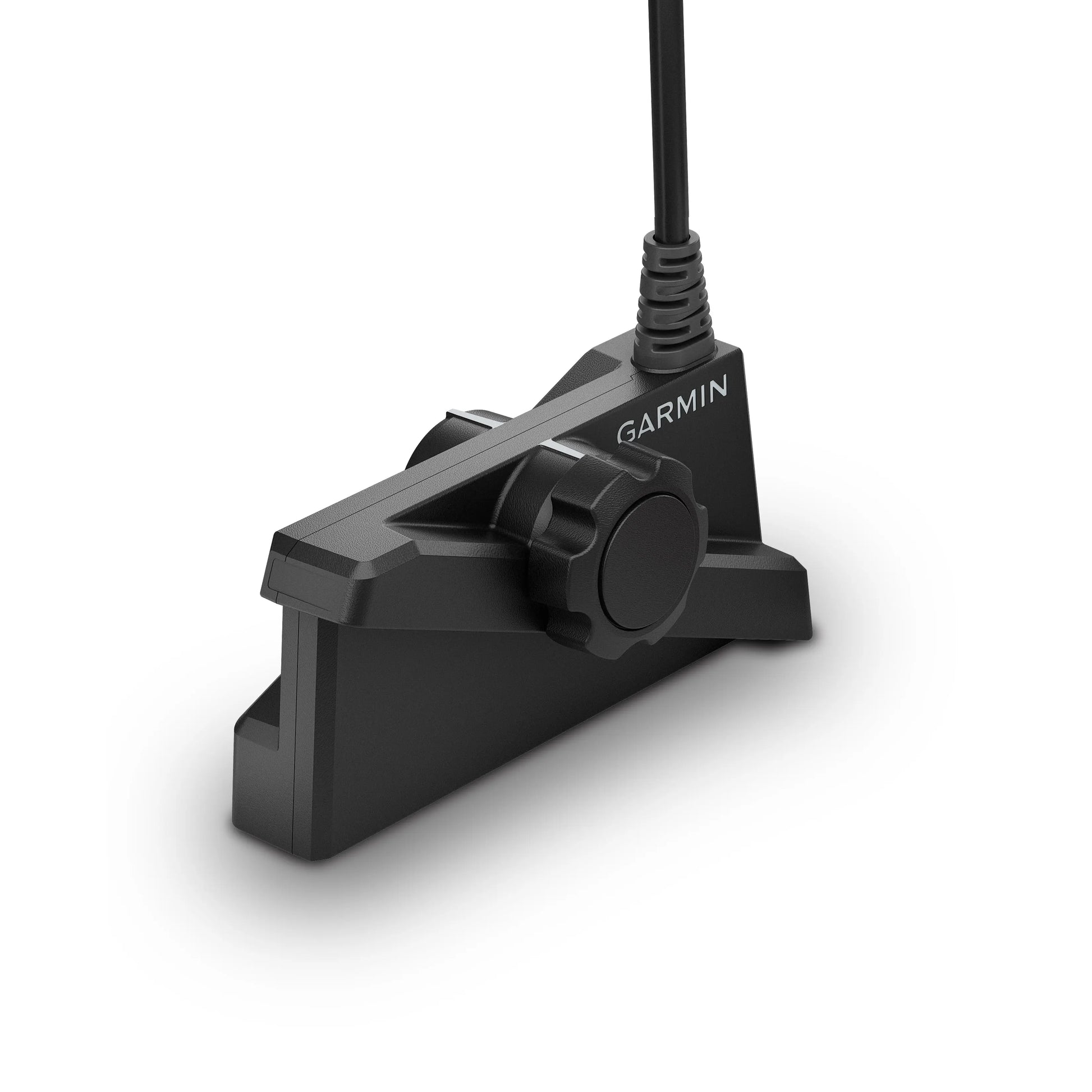

Garmin LVS34 Transducer Replacement for LiveScope Plus Transom/Trolling Motor Mount

Garmin LVS34 Transducer Replacement for Enhanced LiveScope Plus Performance

Garmin LVS34 Transducer Replacement for LiveScope Plus Transom/Trolling Motor Mount

Garmin LVS34 Transducer for Panoptix Livescop Plus

Model: 010-02706-10

• See images clearly with improved screen clarity, transducer sensitivity and target separation.
• Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
• Upgrade your current LiveScope System black box (GLSTM 10 sonar module) with just a new transducer.
• Get maximum contrast and clarity in your images with vivid color palettes.
• Don't miss a thing with supported Forward, Down and Perspective modes and necessary mount.

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.

REAL-TIME IMAGES - Real-time sonar ensures that your live images are as accurate as possible

CLEAR VISION - See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

IMAGE STABILIZATION - A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES - Choose from seven vivid color options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.

Specifications

DIMENSION6.4 in x 3.1 in x 1.9 in (16.2 x 3.1 x 4.8 cm)

WEIGHT
2.25 lbs (1.02 kg)

WATERPROOF
WATERPROOF

WATERPROOF
Operating: 0 C to 40 C

Sonar Features & Specifications

FREQUENCY
530 - 1,100 kHz

MAXDEPTH
Down and Forward: 200 feet (61.0 m)

Connections

CONNECTIONS GARMIN MARINE NETWORK PORTS
1 (small connector)

Electrical Features

POWER INPUT
10-32 V

POWER USAGE
21 W typical, 58 W max

TRANSMIT POWER
500 W

FUSE
7.5 A

COMPASS-SAFE DISTANCE
4 (0.1 m)

Additional

Minimum depth
3 feet (0.91 m)

Sonar type
Live

Beamwidth
20 deg x 135 deg

Transducer cable length
20 ft

Transducer number of pins
21

What's in the Box:

• Panoptix LVS34 transducer
• Perspective mount
• Trolling motor barrel mount
• Trolling motor barrel mount
• Documentation
"

Overview of Garmin LVS34 Transducer Replacement

The Garmin LVS34 Transducer Replacement is designed specifically for LiveScope Plus systems, providing an essential upgrade or repair option for anglers seeking to maintain peak sonar performance. This replacement transducer is compatible with both transom and trolling motor mounts, ensuring versatility and convenience while fishing. Engineered to deliver high-resolution, real-time imaging, it allows you to clearly view underwater activity and structure. Whether you're replacing a worn-out transducer or upgrading your setup, this product maintains the reliability and precision expected from Garmin's advanced fish-finding technology.

Key Features and Benefits

This Garmin LVS34 Transducer Replacement offers exceptional clarity and coverage, helping anglers detect fish and obstacles with ease. With its durable construction, it resists damage from harsh aquatic environments and frequent usage. The transducer operates seamlessly with the LiveScope Plus system, providing a wide scanning range and accurate sonar returns. Easy installation on either transom or trolling motor mounts reduces downtime, so you can get back on the water faster. The high-performance transducer ensures that your LiveScope Plus system functions optimally, improving your fishing efficiency and confidence.

Installation and Compatibility Details

The Garmin LVS34 Transducer Replacement is simple to install, compatible with all LiveScope Plus transom and trolling motor setups. It includes all necessary mounting hardware and instructions to ensure a straightforward replacement process. The plug-and-play design prevents technical complications, reducing installation time even for users with minimal experience. Additionally, its compatibility extends to various boat configurations, giving versatility for different fishing conditions. Proper installation maximizes sonar performance, allowing anglers to fully utilize LiveScope Plus’s real-time scanning capabilities for accurate underwater imaging.
