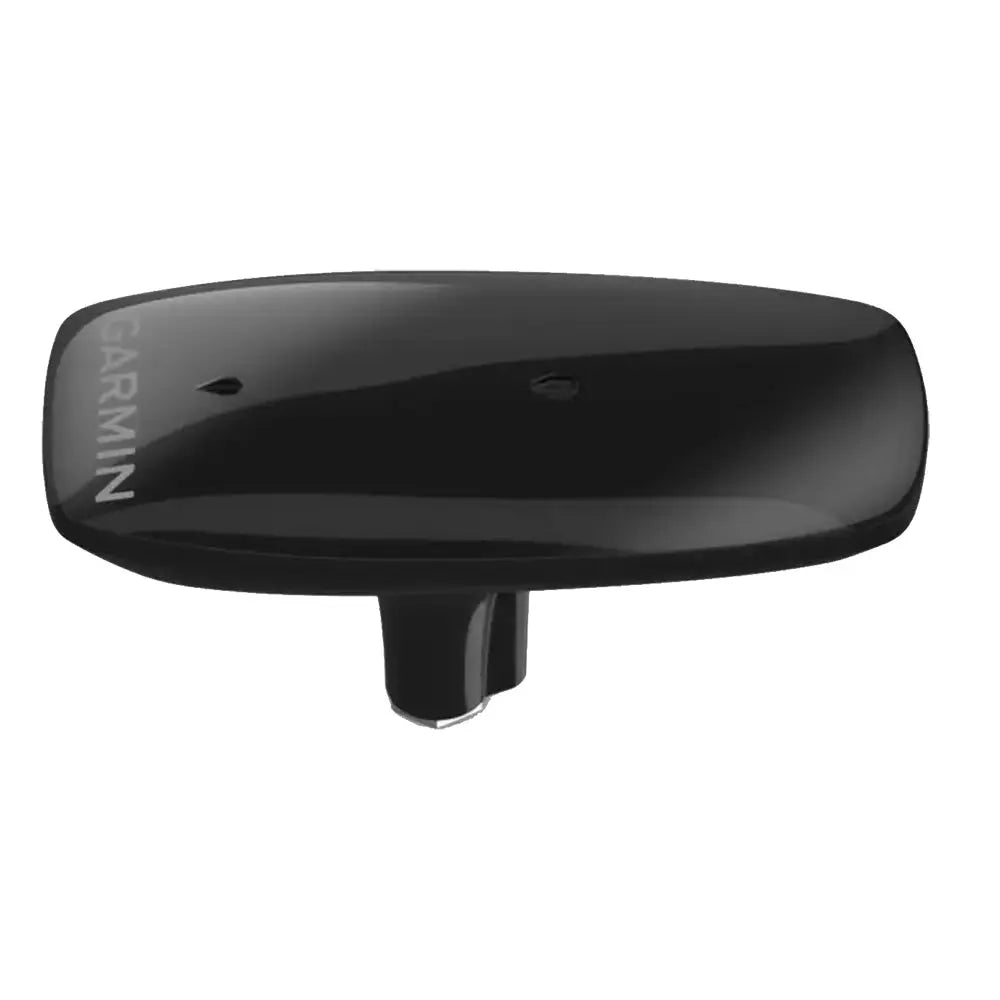

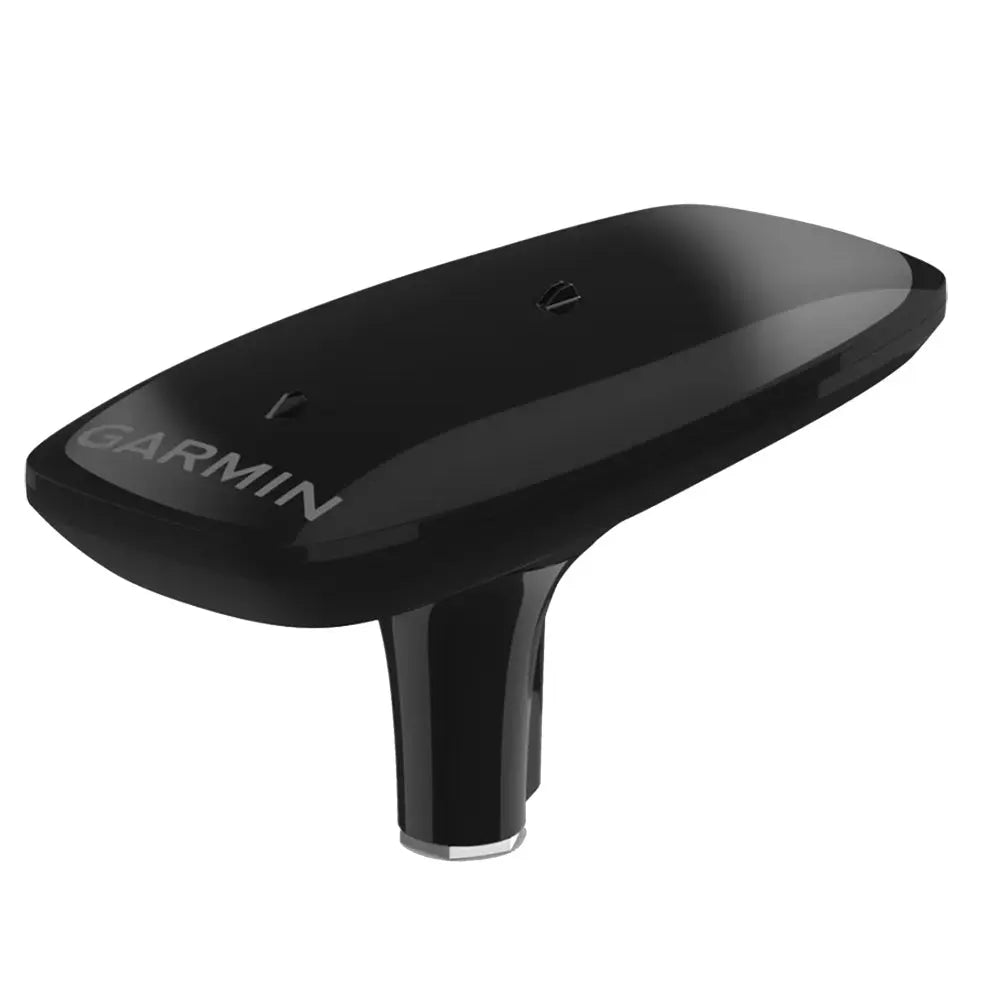

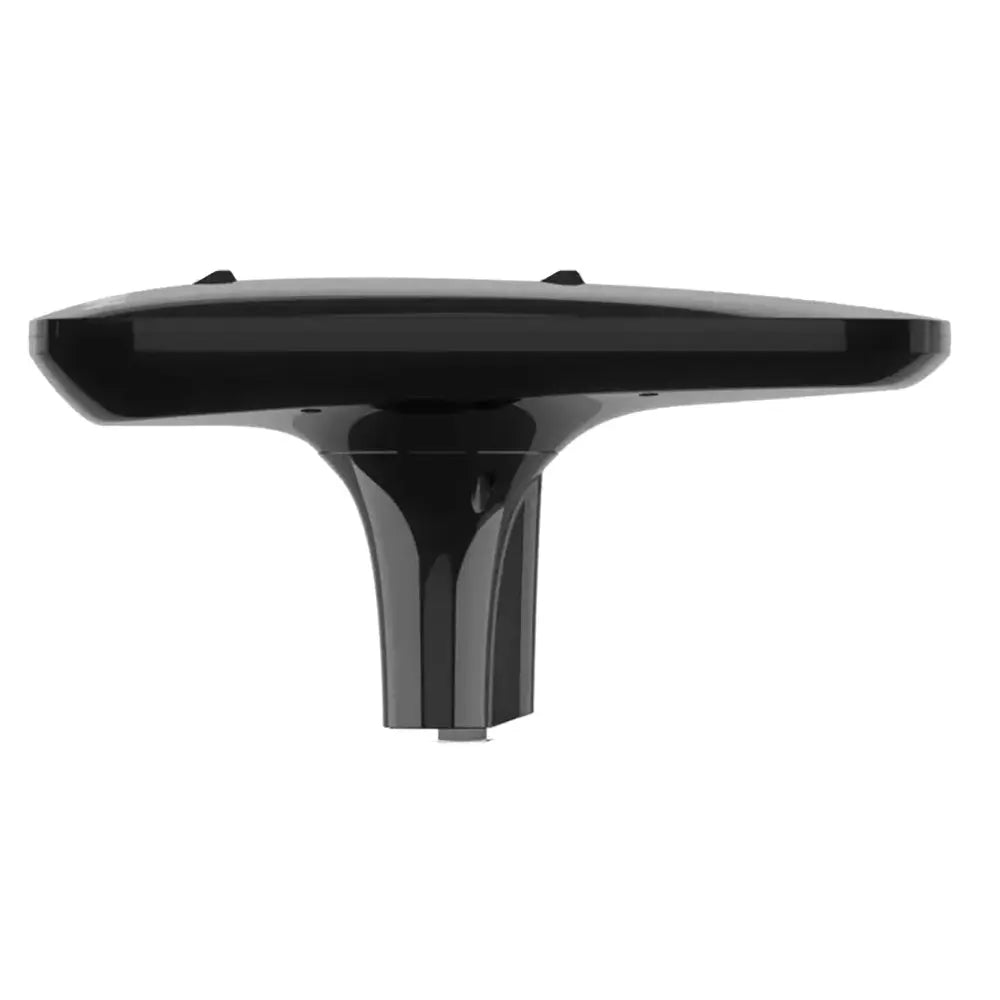

Garmin MSC 10 Marine Satellite Compass - Black | Accurate Heading & Navigation

MSC 10 Marine Satellite Compass - Black

KNOW EXACTLY WHERE YOU'RE HEADED

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.

Features:

• Accuracy comes easy when youve got a multi-band GNSS receiver on board.
• Faster updates. More detailed tracking.
• Rough waters got you worried MSC 10 delivers pitch, roll, and heave info, too.
• If other onboard systems need a heading sensor, weve got you covered.

MULTI-BAND GNSS AND MULTI-CONSTELLATION

The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo1, GLONASS, and BeiDou1) receiver deliver precise positioning2.

BOAT HEAVE AND MORE

Get reliable, accurate boat heave, pitch, and roll information even in rough waters.

BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)

With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.

ACCURATE HEADING DATA

Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you dont have to worry about magnetic interference.

PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS

You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.

NMEA 2000 NETWORK COMPATIBLE

Get heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.

EASY TO INSTALL

This compact device is simple to install and easily integrates into your Garmin marine ecosystem.

10 HZ UPDATE RATE

Get better, more detailed tracking information, thanks to the 10 Hz position update rate.

BACKUP HEADING SENSOR

In the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading3.

What's In The Box

• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

1Supported when available

2< 1 meter CEP, < 3 meters 95%

3 Magnetometer calibration required for backup magnetic heading support

The Garmin MSC 10 Marine Satellite Compass provides reliable, precise heading information essential for marine navigation. Equipped with a multi-band GNSS receiver supporting L1 and L5 GPS signals, along with multiple satellite constellations including Galileo, GLONASS, and BeiDou, it ensures accurate positioning even in challenging conditions. Its fast update rate of 10 Hz offers detailed tracking, making it ideal for high-performance navigation and autopilot systems. The integrated attitude and heading reference system (AHRS) enhances GPS heading accuracy at all speeds, including during sharp turns or pitching in rough seas. This compact device is designed for easy installation and seamless integration into Garmin's marine ecosystem, delivering critical data via the NMEA 2000 network to compatible chartplotters and onboard systems.

Features:

• Accuracy with multi-band GNSS and multi-constellation support for precise positioning

• Fast 10 Hz update rate for detailed, real-time tracking

• Provides pitch, roll, and heave information, suitable for rough water conditions

• Built-in attitude heading reference system (AHRS) for improved GPS heading even at low speeds

• Multiple receivers deliver heading accuracy within 2 degrees, free from magnetic interference

• Can serve as the primary heading sensor for autopilots and other systems

• NMEA 2000 network compatible for straightforward data sharing with Garmin chartplotters

• Compact and easy to install, integrates seamlessly with Garmin marine systems

• Backup magnetic heading sensor with magnetometer calibration for signal loss scenarios
