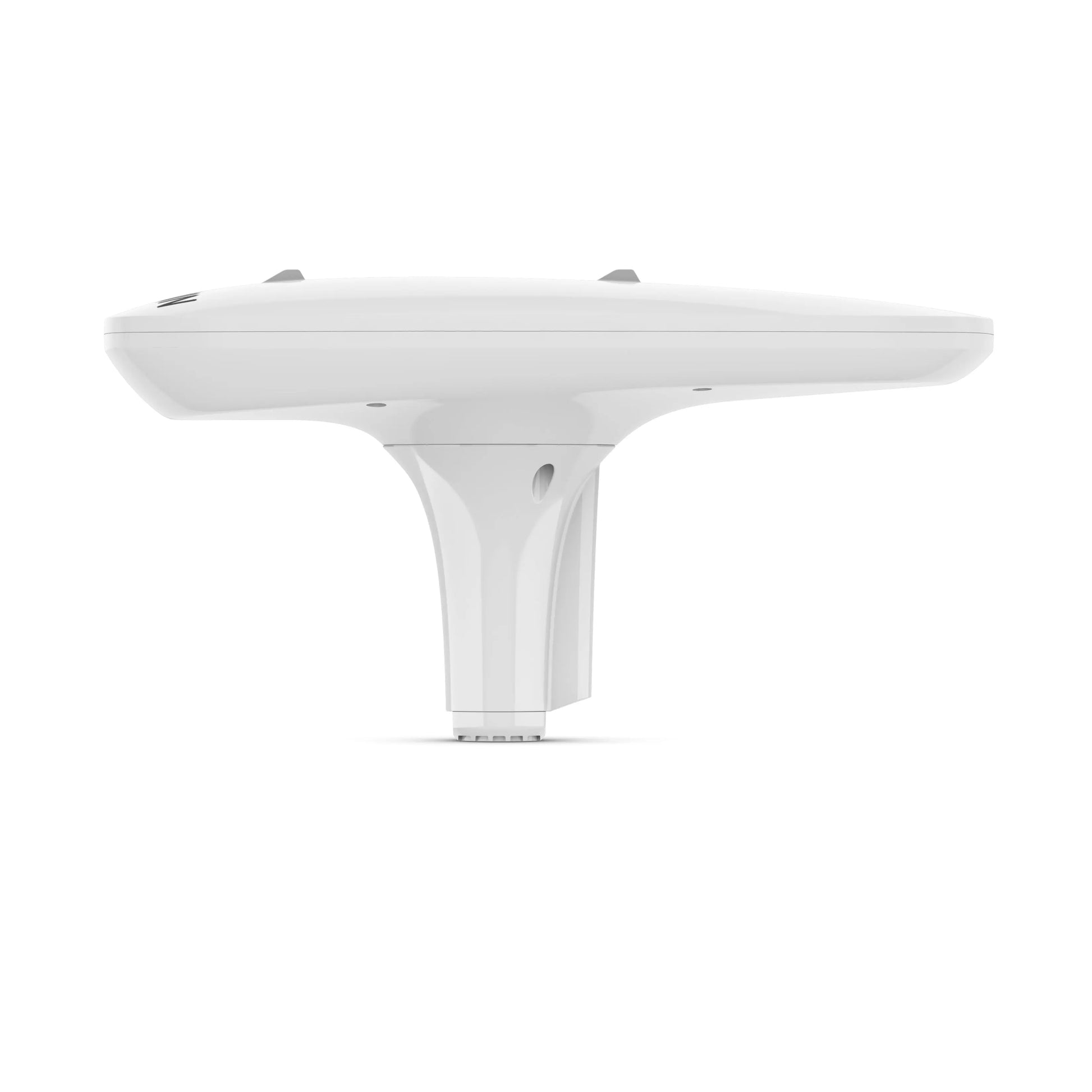

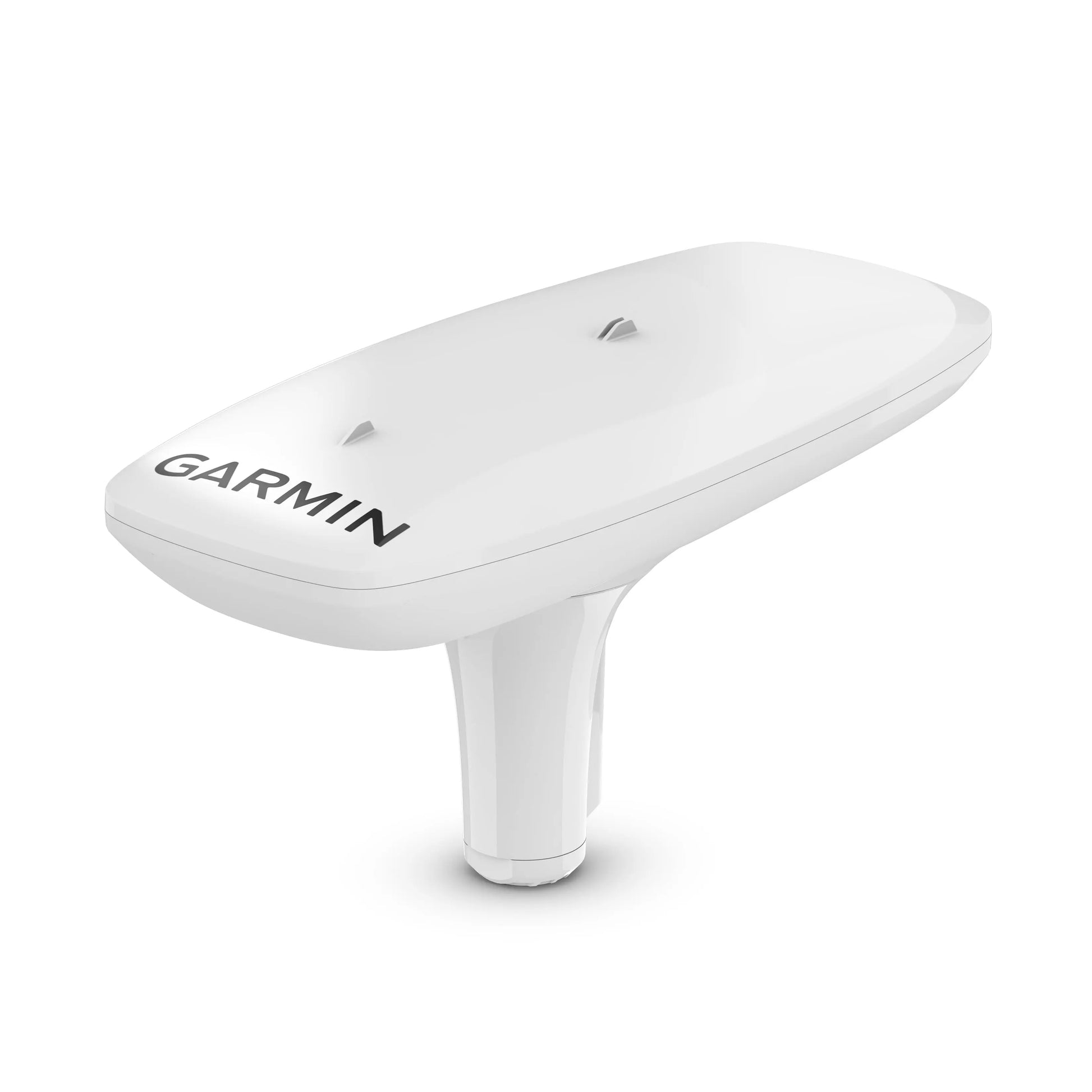

Garmin MSC10 Marine Satellite Compass with Multi-Band GNSS and NMEA 2000 Integration

The Garmin MSC10 Marine Satellite Compass is an advanced navigation tool designed for precise heading and positioning on your boat. Featuring a built-in attitude and heading reference system, this device filters and smooths GPS-derived heading data, providing reliable navigation even at high speeds. Its seamless transition from GPS-based to magnetometer-based heading ensures continuous operation, with magnetometer calibration required only if backup magnetic heading is used. The MSC10 supports multi-band GNSS (L1 and L5 GPS), delivering position accuracy within 1 meter and a heading RMS error of just 2 degrees in dynamic conditions, making it ideal for demanding marine environments.

This compact device easily integrates into your Garmin marine ecosystem and can serve as the primary sensor for autopilots and other onboard systems requiring accurate heading data. The unit features 10 Hz update rates, allowing for high-sensitivity tracking and real-time responsiveness. It also provides accurate boat heave information via the NMEA 2000 network, enhancing your chartplotter's situational awareness. Installation is straightforward, with no calibration needed unless magnetometer backup is utilized, simplifying setup aboard your vessel. The MSC10's robust design and reliable performance make it a valuable addition to any navigation setup, ensuring you stay on course under various conditions.

Features:

• Built-in attitude and heading reference system to filter GPS data

• Seamless transition from GPS to magnetometer heading with calibration as needed

• Provides accurate heave data via NMEA 2000 network

• Multi-band GNSS (L1 and L5 GPS) receiver for precise positioning within 1 meter

• Heading accuracy of 2 degrees RMS in dynamic environments

• Supports 10 Hz update rate for high-sensitivity tracking

• Compatible as the primary sensor for autopilots and onboard navigation systems

• Easy installation with no calibration required unless using magnetic backup

• Integrates smoothly with Garmin marine ecosystem
