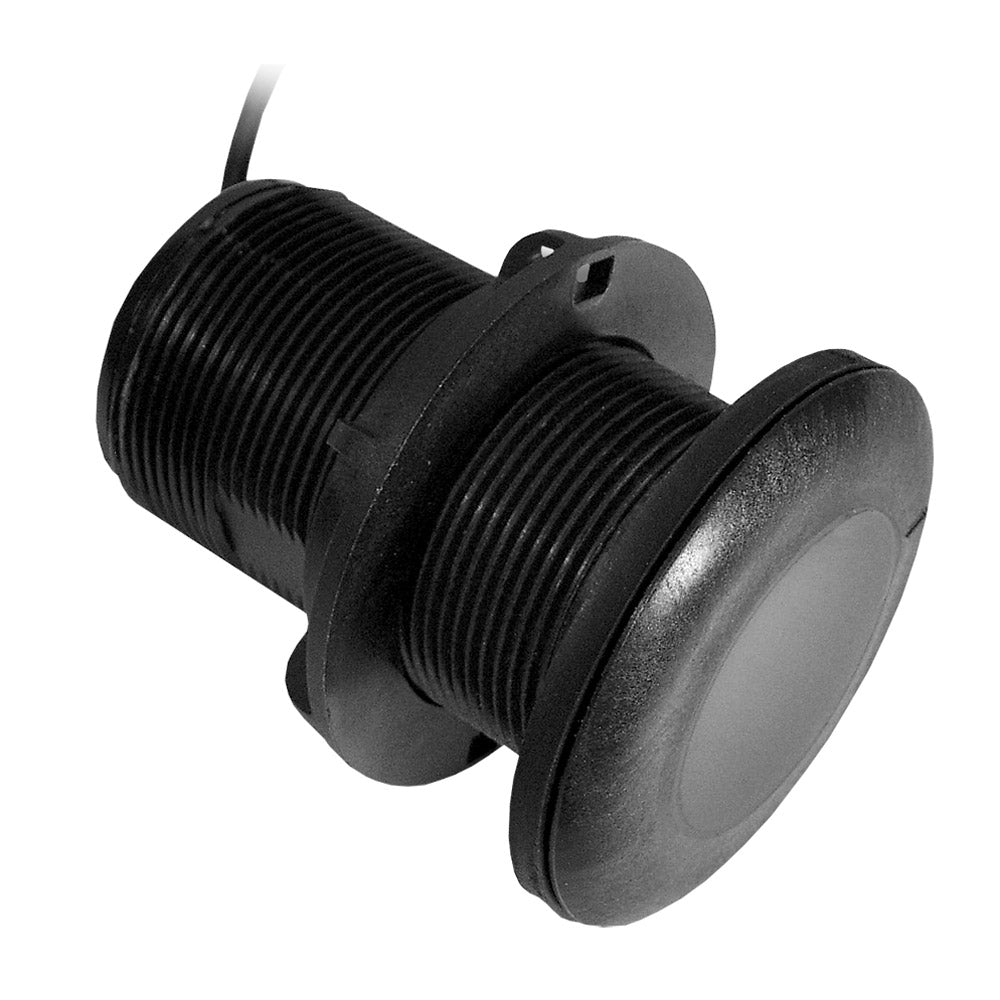

Garmin P19 Nylon 20 Degree Tilt Transducer with 8-Pin Connector for Deep Echo Sounding

P19 20 Degree Tilted Element Thru-Hull with 8 pin Connector for Garmin

Minimize Your Drag

The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echo sounding up to 206M (700). These nearly flush units minimize drag as only 5mm (2/10) of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings.

Applications

• Cruising powerboats and sailboats
• Sailboats

Features

• Depth and temperature
• Fixed 20 tilted versions for 16 to 24 hull deadrise
• Right angle cable exit offers low headroom and protection when transducer is stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Housings are ABYC H-27 compliant
• Optional temperature sensor
• Plastic housing
• Boat Size: Up to 9M (30)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin P19 Nylon 20 Degree Tilt Transducer (Part Number: 010-10218-22) is designed for precise depth and temperature measurements on cruising powerboats and sailboats up to 30 feet in length. Its low-profile, nearly flush mount design extends only about 0.2 inches outside the hull, significantly reducing drag and improving vessel performance. Featuring a large sensitive ceramic element, the P19 can provide accurate echo sounding up to 700 feet (206 meters), making it suitable for a variety of marine navigation applications. The built-in tilt compensates for deadrise angles, ensuring vertical beam alignment for consistent and reliable depth readings. The fixed 20-degree tilt version is optimized for hull deadrise angles ranging from 16 to 24 degrees, enhancing signal quality across different boat configurations. The durable plastic housing is ABYC H-27 compliant to meet safety standards, and the right-angle cable exit minimizes headroom issues and protects the cable when stepped on. An included rubber washer helps secure the transducer to irregular hull surfaces, providing a tight, waterproof seal. Optional temperature sensors are available for additional environmental monitoring, making this transducer a versatile choice for serious anglers and boaters seeking accurate depth and temperature data. Suitable for boats up to 30 feet, the Garmin P19 Tilt Transducer is an excellent addition for enhancing your marine navigation system with minimal drag and maximum reliability.

Features:

• Depth and temperature measurement capabilities

• Fixed 20-degree tilt design for 16 to 24-degree hull deadrise

• Nearly flush mounting with only 0.2 inches extending outside hull

• Large sensitive ceramic element for deep echo sounding up to 700 feet

• Right-angle cable exit reduces headroom and cable protection

• Includes rubber washer for secure mounting on irregular hull surfaces

• Constructed with durable plastic housing that complies with ABYC H-27 standards

• Optional temperature sensor for environmental data collection

• Suitable for vessels up to 30 feet in length
