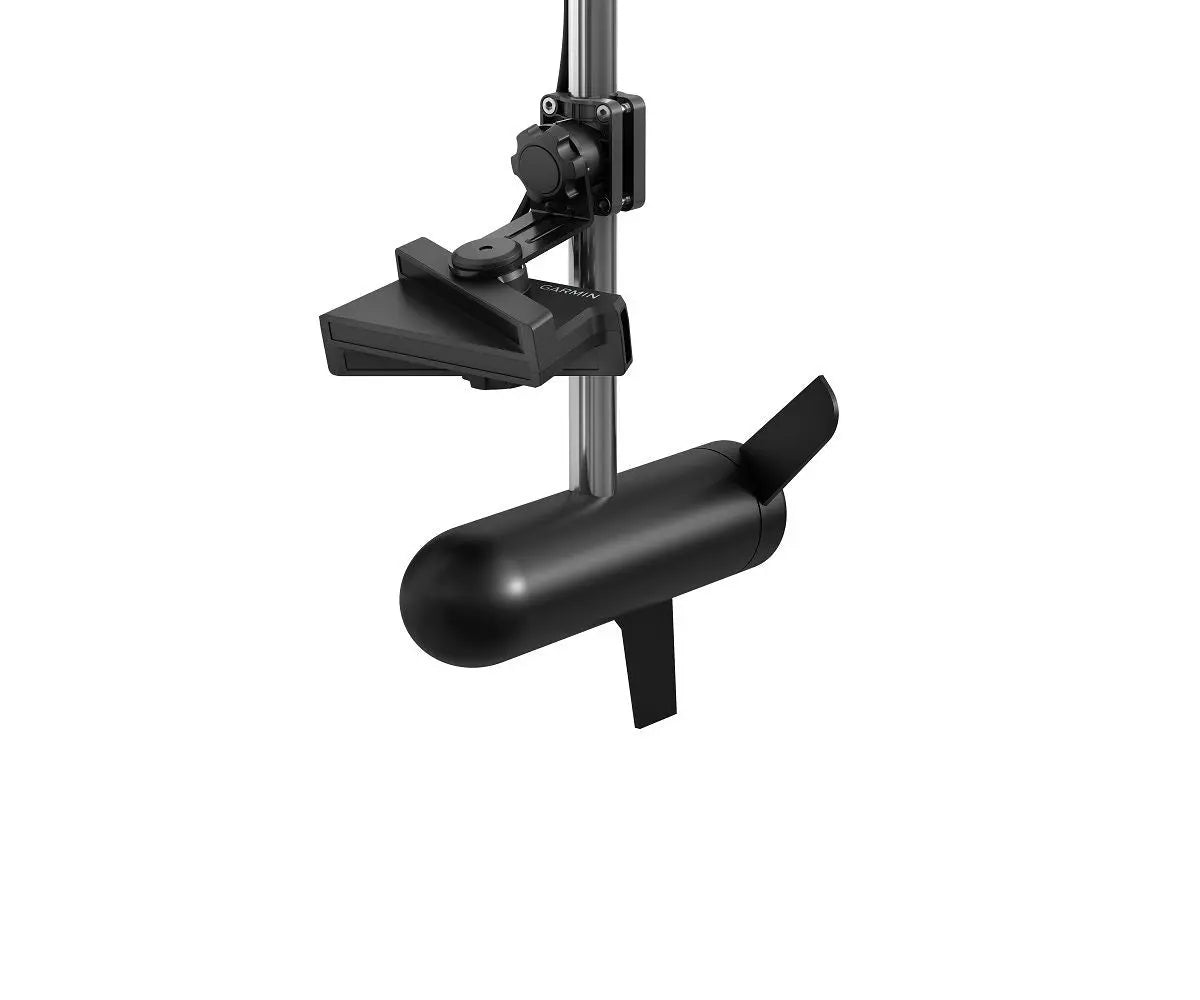

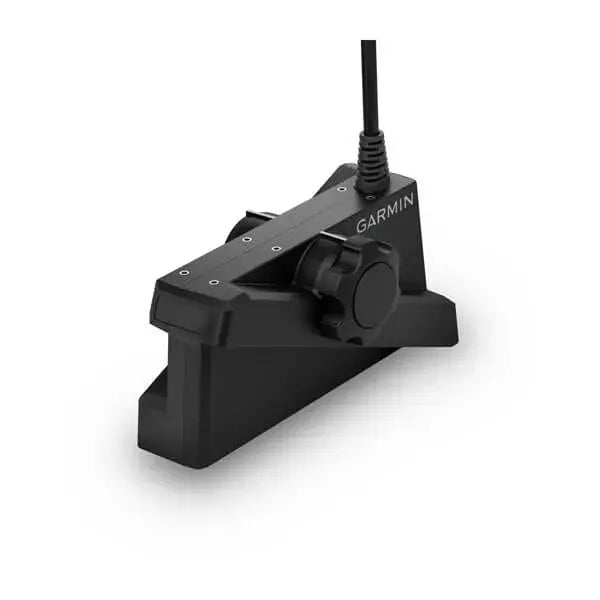

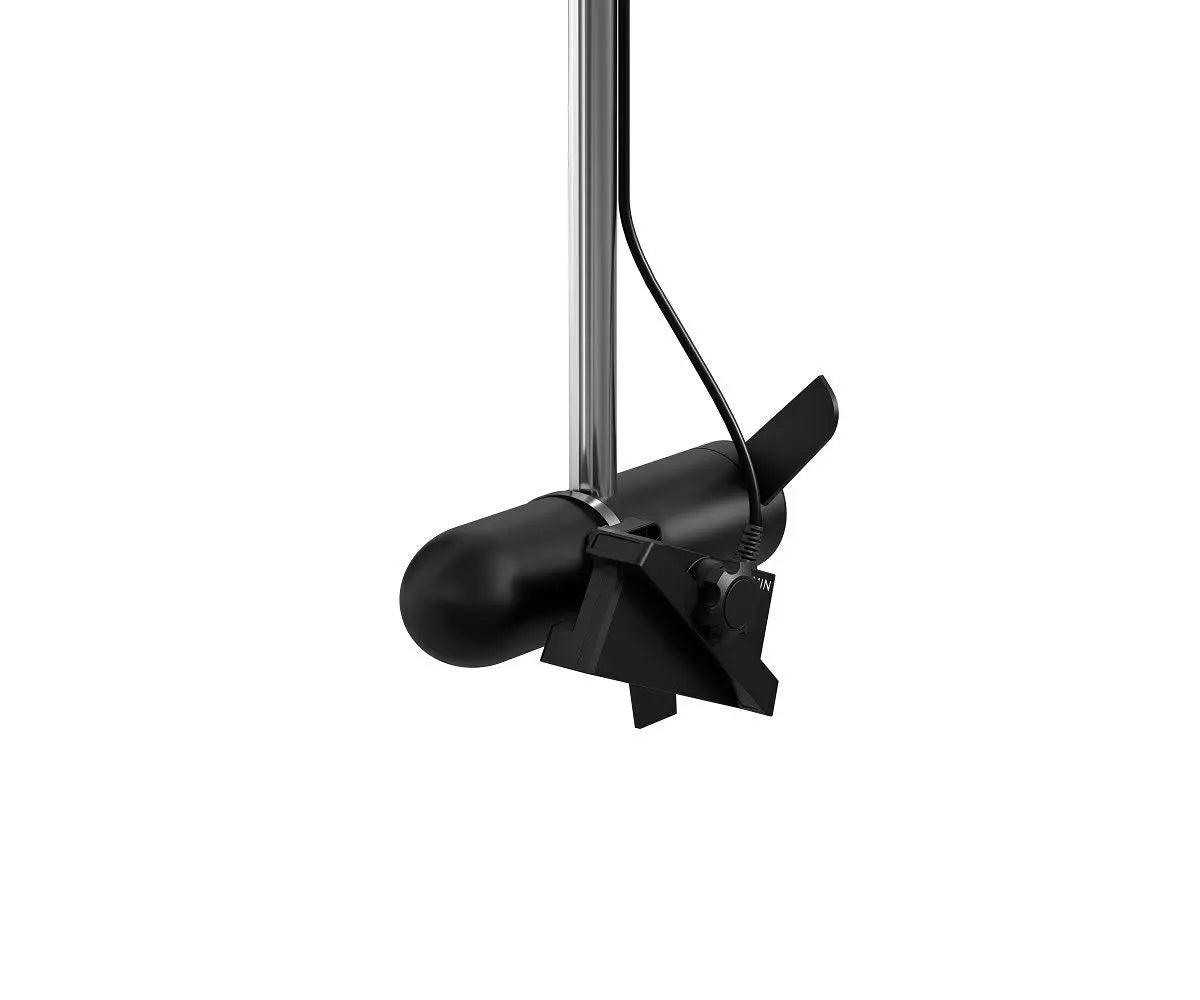

Garmin Panoptix LVS62 Transducer Only

Explore the Advanced Features of Garmin Panoptix LVS62

Garmin Panoptix LVS62 Transducer Only

Garmin LVS62 Transducer Only for Livescope XR

Model: 010-02719-10

• Explore the deep with an extended range up to 500 feet in freshwater and 350 feet in saltwater.
• Find fish circling your boat with clear views close around your hull.
• Upgrade your current LiveScope System black box (GLSTM 10 sonar module) with just a new transducer.
• Get maximum contrast and clarity in your images with vivid color palettes.
• Don't miss a thing with supported Forward, Down and Perspective modes plus necessary mount.

You didn't think it could get better, but it did with the extended range of the LiveScope XR System. It's the latest in LiveScope technology, now for coastal and open-water fishing.

The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500 feet in freshwater and 350 feet in saltwater.

The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.

Real-time sonar ensures that your live images are as accurate as possible.

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

Choose from seven vivid color options - including aqua, Caribbean, lava and more - to see fish and structure in maximum contrast and clarity.

Now scout even farther ahead of your boat to see what's happening in real time.

Explore live views of the activity deeper beneath your boat.

See under the water with a view from your perspective above the water.

Specifications

DIMENSIONLVS62 transducer: 8.20 in x 3.98 in x 2.76 in (20.8 x 10.1 x 7.0 cm)

WEIGHT
LVS62 transducer with cable: 3.92 lbs (1.78 kg)

WATERPROOF
IPX7

TRANSDUCER BEAMWIDTH
20 deg x 135 deg

TRANSDUCER CABLE LENGTH
20 ft

TRANSDUCER NUMBER OF PINS
21

TEMPERATURE RANGE
LVS62 Transducer: Operating: 0 C to 40 C

Sonar Features & Specifications

FREQUENCY
265 - 550 kHz

MAXIMUM DEPTH
Freshwater: Down and Forward: 500 feet (152.0 m)

Saltwater: Down and Forward: 350 feet (106.0 m)

SONAR TYPE
Live

TARGET SEPARATION @100 feet
22

PERSPECTIVE MODE MOUNT INCLUDED
Yes

Connections

GARMIN MARINE NETWORK PORTS
1 (small connector)

Electrical Features

POWER INPUT
10-32 V

POWER USAGE
21 W typical

High Definition Real-Time Sonar Imaging

The Garmin Panoptix LVS62 offers remarkable real-time sonar imaging, allowing anglers and boaters to see fish and structure clearly beneath the water surface. This transducer is engineered to deliver precise scanning sonar, providing both forward and downward views with exceptional clarity. Its advanced technology transmits sonar beams that capture live detailed images, helping users track bait fish movements while navigating aquatic environments. Whether you're fishing in shallow waters or deep-sea environments, the Panasonic LVS62 ensures you don’t miss any underwater activity.

Compact Design and Easy Installation

Designed with practicality in mind, the Garmin Panoptix LVS62 transducer only features a compact, robust housing suitable for various vessel types. It installs easily through the hull or on a trolling motor, offering flexibility for different boat setups. This ease of installation ensures that boating enthusiasts can quickly upgrade their sonar systems without complicated procedures or extra modifications. Its durable construction resists corrosion and withstands harsh marine environments, providing long-lasting performance for years to come.

Broad Compatibility and Versatile Use

The Garmin Panoptix LVS62 is compatible with a wide range of Garmin fishfinders and multifunction displays, making it an adaptable choice for upgrading existing marine electronics. Its versatile sonar capabilities work seamlessly with Panoptix LiveScope systems, providing live scanning sonar in both forward and downward directions. This transducer’s broad compatibility allows users to enhance their underwater imaging experience regardless of their current Garmin setup. Perfect for serious anglers and professional mariners, the LVS62 transducer contributes significantly to safer and more productive outings on the water.
