Garmin Panoptix PS22-IF Portable Live Sonar

Garmin Panoptix PS22-IF Portable Live Sonar

Model: 010-01945-10

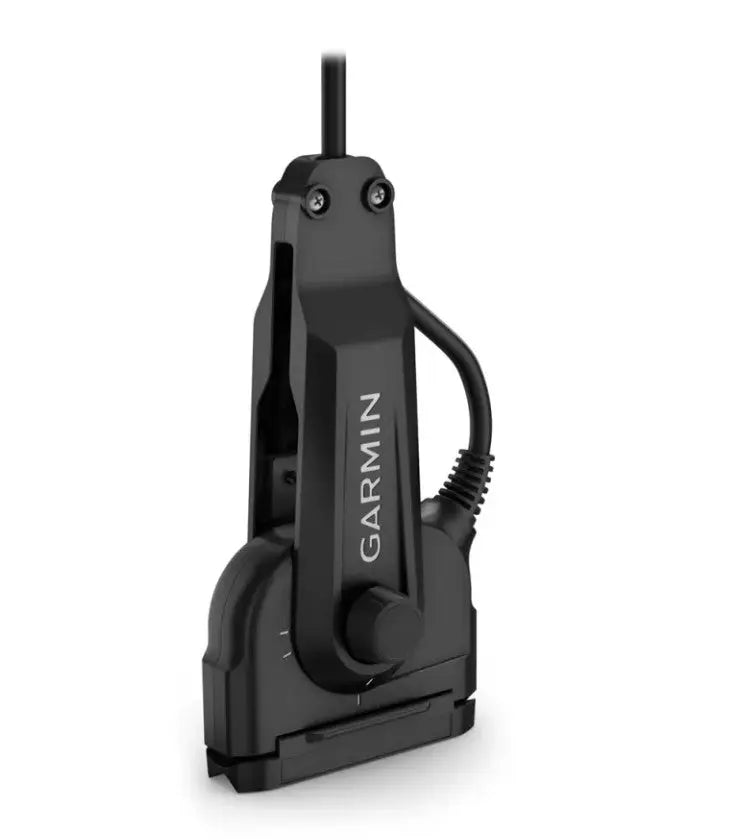

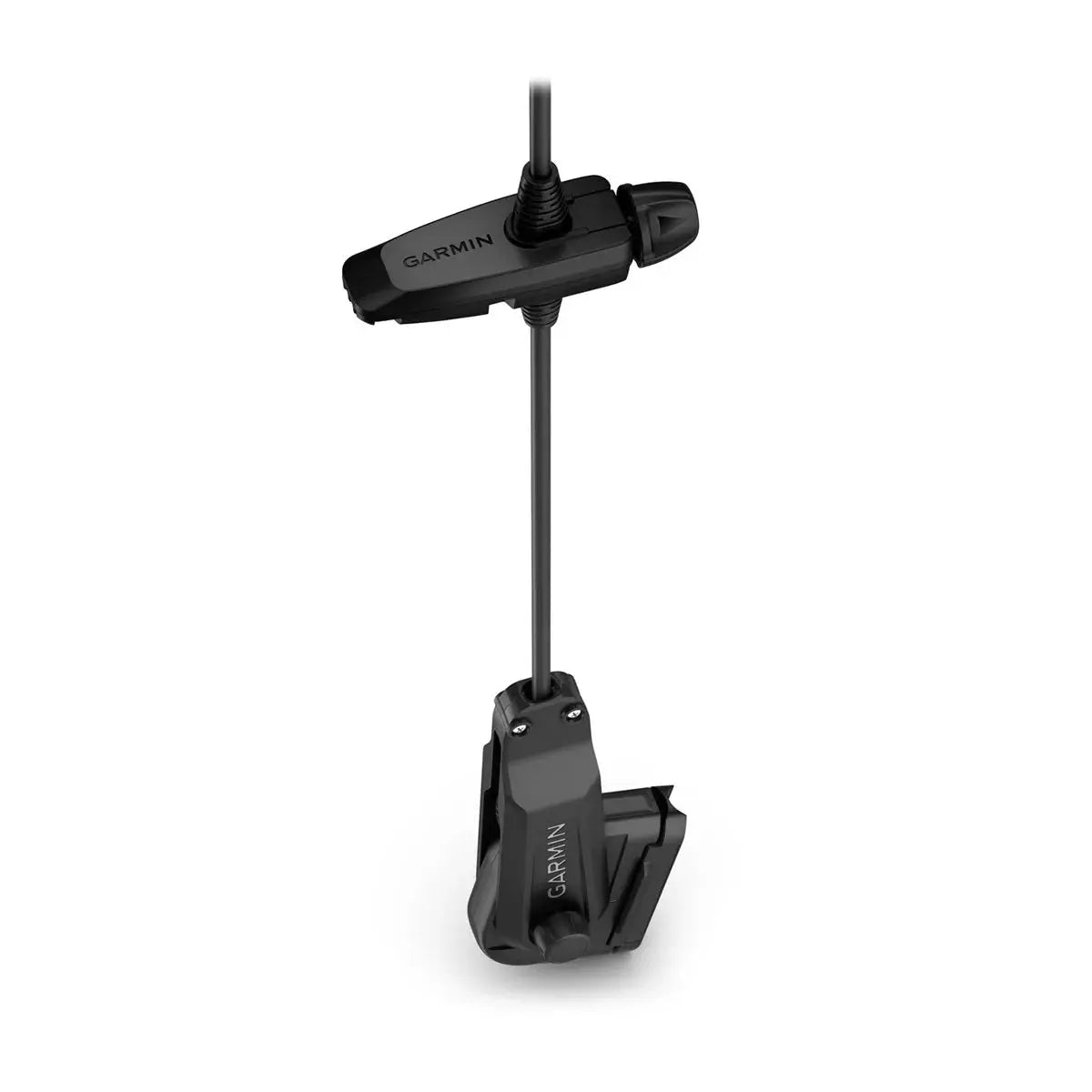

Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator — which eliminates the need for a bulky pole mount — as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVü Forward and LiveVü Down scan modes.

Specifications

General

Transducer beamwidth
With lens: 12° x 120°
Without lens: 57° x 120°

Transducer cable length
9.8' (3 m)

Dimension
9.1" x 4.1" x 2.5" (23.1 x 10.4 x 6.4 cm)

Weight
2.60 lbs (1.18 kg)

Temperature range
Operating: 0° C to 40° C

Electrical Features

Power input
10-32 V

Fuse
4A

Sonar Features

Frequency
417 kHz

Transmit power
48 W

Maximum depth
300'

Connections

Garmin Marine Network Ports
1 (standard connector)

Sonar Modes

LiveVü Down
Yes

LiveVü Forward
Yes

Traditional sonar source
Yes

What's in the Box:

• Panoptix PS22-IF transducer


• Transducer rotator and bracket


• Removable lens


• Hardware


• Documentation
