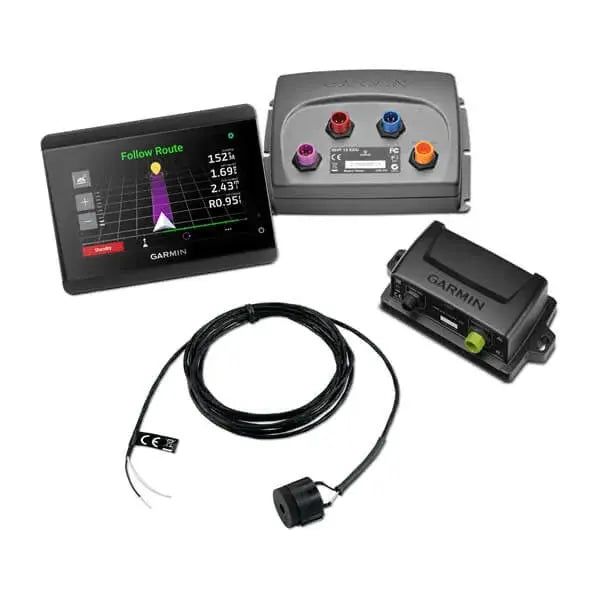

Garmin Reactor 40 Mechanical Retrofit Corepack with GHC50

Garmin ReactorTM 40 Mechanical/Retrofit/Solenoid Corepack With GHCTM 50 Autopilot Instrument

Model: 010-02794-02

• The Reactor 40 mechanical/retrofit/solenoid corepack works with a wide variety of steering systems.
• Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.
• Even when you're pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
• You just want to get on the water, so we made calibration fast and easy. That's the power of simple.
• Combine with your compatible Garmin chartplotter, and control your autopilot - from anywhere on your boat.
• The GHCTM 50 autopilot instrument enhances your autopilot experience.

This corepack works with direct or cable-actuated steering systems to support heading hold, wind hold, step turns and tack/jibe modes.

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.

Hold your course on the sea - this autopilot reacts to conditions, so you can remain confident even when you're pitching or rolling.

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

Gain more freedom when maneuvering your boat. On hydraulic installations, this corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.

Choose between class A, class B compact or class B drive units for your steering system (sold separately). All Garmin linear drives include built-in rudder feedback sensing.

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix(R) marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).

Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.

For even more peace of mind, add the GRF 10 rudder feedback sensor to further enhance your autopilot's performance (requires GHC 50 autopilot instrument or compatible Garmin chartplotter).

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns - plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+TM features1.

1 Auto Guidance is for planning purposes only and does not replace safe navigation operations

Specifications

CCU dimensions: 4.3 x 4.4 in x 1.9 in (10.9 x 11.2 x 4.8 cm)CCU dimensions4.3 in x 4.4 in x 1.9 in (10.9 x 11.2 x 4.8 cm)

ECU dimensions
6.6 in x 4.6 in x 2.1 in (16.8 x 11.7 x 5.3 cm)

Supply voltage
10 V to 30 V

Operating temperature
-15 deg C to 60 C deg (5 deg F to 140 deg F)

Maximum sustained motor current
15A

Maximum instantaneous motor current
40A

Maximum clutch current
2.5A (for drives requiring higher current than 2.5A

Advanced Autopilot Technology with Garmin Reactor 40

The Garmin Reactor 40 Mechanical Retrofit Corepack is designed to bring precise and dependable autopilot functionality to your vessel. Utilizing the Garmin Reactor 40 corepack combined with the GHC50 display unit, the system delivers smooth steering response and simplified controls. This retrofit solution fits mechanical steering systems, making it perfect for upgrading older boats without replacing existing hardware entirely. With its integrated technology, the Garmin Reactor 40 offers excellent course-keeping ability and stability, helping captains navigate efficiently in various sea conditions.

Easy Installation and User-Friendly Interface

The Garmin Reactor 40 Mechanical Retrofit Corepack is engineered for simple installation and intuitive use. The GHC50 display provides clear visual feedback with an easy-to-read LCD interface that shows heading, status, and autopilot modes at a glance. Installation requires minimal modifications to your boat’s steering system. This setup is ideal for boaters seeking a hassle-free upgrade to modern autopilot performance. The ergonomic design allows users to access advanced autopilot features like waypoint steering, wind compensation, and remote operation effortlessly from the helm.

Durability and Compatibility for Marine Environments

Built with the harsh marine environment in mind, the Garmin Reactor 40 retrofit corepack is rugged and reliable. The system is fully waterproof and designed to withstand saltwater exposure, vibrations, and extreme temperatures. It works seamlessly with other Garmin marine products to enhance your vessel’s navigation capabilities. Whether you are cruising coastal waters or offshore passages, the Garmin Reactor 40 ensures consistent autopilot control and confidence in your journey. Its compatibility with diverse mechanical steering systems makes it a versatile choice for many boat types.
