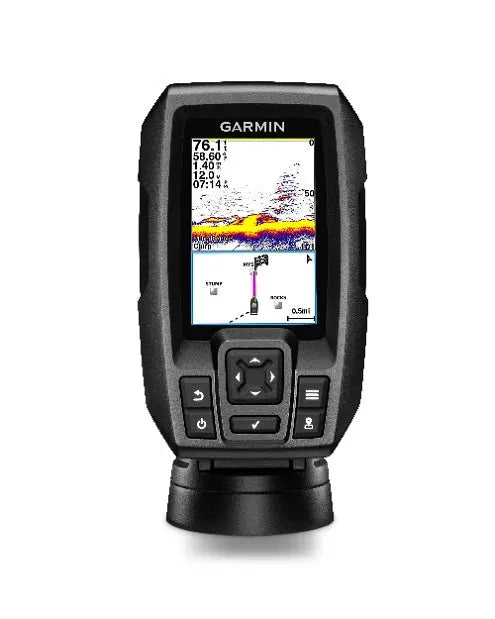

Garmin Striker 4 3.5in Color Fishfinder GPS Track Plotter

Explore Advanced Features of the Garmin Striker 4

Garmin Striker 4 3.5in Color Fishfinder GPS Track Plotter

Garmin Striker 4 3.5-inch CHIRP Fishfinder with GPS

Model: 010-01550-00

UPC: 753759147013

• Easy-to-use 3.5-inch color fishfinder with built-in, high-sensitivity GPS
• Find fish; mark and return to hot spots, docks and ramps
• Convenient keypad operation
• Includes CHIRP (77/200 kHz) sonar transducer; transmit power (200 W RMS)/(1,600 W peak-to-peak)
• Upgrade to high performance CHIRP with a GT8 or GT15 transducer (each sold separately)

Finding fish is easier than ever with STRIKER 4 fishfinder. Mark and return to your hot spots, boat ramps and docks, and share your favorite waypoints and routes with other STRIKER and echoMAPTM combos. Smooth ScalingTM graphics provide uninterrupted imagery when switching between depth-range scales. Sonar history rewind allows you to scroll back through sonar images to mark waypoints you originally may have missed. Plus, it has a built-in flasher and displays speed data. Includes tilt/swivel mount, CHIRP (77/200 kHz) transducer with transom and trolling motor mounting hardware and cable. For high-performance CHIRP, purchase a GT8 or GT15 transducer (each sold separately).

Experience the Clarity of CHIRP
STRIKER 4 fishfinder includes a Garmin CHIRP (77/200 kHz) transducer, which provides a visibly higher level of clarity and detail for fish and structure than traditional 77/200 kHz transducers.

Instead of sending just 1 single frequency, CHIRP sends a continuous sweep of frequencies, ranging from low to high, then interprets them individually upon their return. Since the frequencies provide a wider range of information, CHIRP sonar technology can create crisper fish arches with greater target separation.

You also can upgrade to high-performance Garmin CHIRP technology, which provides crystal-clear sonar images with even more remarkable target separation and resolution from shallow to deeper depths. For better fishing, bottom contours are more visible, even at higher speeds, and signal noise can be suppressed at greater depths to provide a more timely interpretation of what's below.

Mark Spots with High-sensitivity GPS
Unlike regular fishfinders, STRIKER fishfinders have built-in, high-sensitivity GPS to locate your current position quickly and precisely, then maintain your GPS location anywhere you go on the lake. More importantly, they allow you to mark spots where the fish are biting so you can return to them again in the future. You also can mark docks, boat ramps and other locations on the lake. Just follow the path created on your screen to return to them whenever you wish.

Navigate Easily with Waypoint Map
Since the STRIKER fishfinder series includes high-sensitivity GPS, you can see your position in relation to waypoints you have marked. Use the waypoint map to easily view, mark and navigate to locations such as brush piles, stumps and docks. It's also a great tool for finding your way back to the boat ramp.

Check Your Speed on Screen
You can quickly and easily see your boat's speed on the screen of your STRIKER fishfinder. It's a great tool to make sure you are trolling at the right speed for the lure you're using and for a particular fish species. It's also a good way to tell if you are going the right speed in wake-controlled areas.

Fish Vertically with Built-in Flasher
STRIKER provides you with both a fishfinder and flasher all in 1 unit. Anytime you are stationary fishing, such as ice fishing or jigging for crappie, the built-in flasher will show you the bottom, whether it is solid or muddy, your jig or weighted bait, and the depth of fish as they swim into the sonar beam. You can even watch how high your jig is being lifted and dropped and whether fish move toward or away from it.

Take Your Fishfinder Anywhere
A portable kit is available to protect and carry your STRIKER fishfinder with GPS, so it's perfect for kayak, canoe or ice fishing. It includes a sealed, rechargeable battery with charger, built-in transducer cable management and storage and suction cup transducer mount and float.

Specifications

Display Size 1.9 feet' x 2.9 feet' (4.9 x 7.3 cm); 3.5 feet' diag, (8.7 cm)

Display resolution

480 x 320 pixels

Display type

HVGA color

Water rating

IPX7

Audible alarms

Yes

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable

Yes

Dual-beam (77/200 kHz) sonar capable

Yes

Frequencies supported

Traditional: 50/77/200 kHz CHIRP (mid and high)

Transmit power

200 W (RMS)

Maximum depth

1,600 ft freshwater*, 750 ft saltwater*

Bottom lock

Yes

Water temperature log and graph

Yes

Fisfinder Features

Split screen zoom

Yes

Ultrascroll(R) (displays fish targets at higher boat speeds)

Yes

Fish Symbol ID (helps identify fish targets)

Yes

AutoGain Technology (minimizes clutter, maximizes targets)

Yes

Adjustable depth line (measures depth of underwater objects)

Yes

A-scope (real time display of fish passing through transducer beam)

Yes

Water temperature sensor included

Yes

Additional

Titl/swivel mount

Yes

Integrated GPS

yes

Mark Waypoints

Yes

Course over Ground (COG)

Yes

Dimensions

3.6 feet' x 5.9 feet' x 1.6 feet' (91.6 x 150.8 x 42.8 cm)

What's in the Box:

• Striker 4
• Dual-beam transducer
• Transom and trolling motor mounts
• Tilt/swivel mount
• Power cable
• Documentation

Clear and Bright 3.5-inch Color Display

The Garmin Striker 4 offers a crisp 3.5-inch color display that ensures excellent visibility in bright sunlight and low-light conditions. This vibrant screen makes it easy to distinguish fish, structure, and bottom contours, giving anglers a clear and detailed sonar picture. The intuitive interface simplifies navigation through menus and settings, enhancing the overall user experience. Whether you're fishing in shallow lakes or deep waters, the LCD screen ensures you stay informed and ready for action.

Built-in GPS for Accurate Navigation and Waypoints

Equipped with an integrated GPS, the Garmin Striker 4 provides precise positioning and allows you to mark favorite fishing spots, launch ramps, and docks. This feature helps you navigate unfamiliar waters with confidence, creating efficient routes and ensuring you never lose your way. The GPS also enables real-time track plotting, letting you see your boat's path and retrace it effectively, improving your chances of replicating successful fishing trips.

High-Performance Sonar with CHIRP Technology

The Garmin Striker 4 utilizes high-frequency CHIRP sonar technology to deliver superior target separation and detailed fish arches. This advanced sonar sends a continuous sweep of frequencies, producing clearer images and greater depth penetration. With this technology, anglers can identify fish species and underwater structures more accurately, enhancing fishing precision. Whether you're a weekend angler or a seasoned pro, the Striker 4’s sonar offers reliable data that can transform your fishing experience.
