Garmin Striker Vivid 5cv 5in Ice Fishing Bundle NOT A CHART PLOTTER

Garmin Striker Vivid 5cv: Advanced Ice Fishing Technology

Garmin Striker Vivid 5cv 5in Ice Fishing Bundle NOT A CHART PLOTTER

Garmin STRIKERTM Vivid 5cv Ice Fishing Bundle With GT8HW-IF Transducer and Lead Acid Battery

Model: 010-02551-04

• View all the action on an easy-to-use fishfinder with bright 5 in display.
• See clearly below the ice with the Garmin CHIRP traditional sonar.
• Got a favorite honey hole Find it easily on the ice with GPS.
• Create your own maps of your favorite fishing spots using Quickdraw Contours.
• Take your gear with you across the ice with a rugged carrying case.

This ice fishing bundle includes the STRIKER Vivid 5cv fishfinder and everything you need for a great day on the ice.

The GT8HW-IF transducer with Garmin CHIRP traditional sonar offers adjustable beam angles and crystal-clear images with remarkable target separation.

See your jig or weighted bait, as well as the depth of fish swimming into the sonar beam. You can even watch your jig being lifted or dropped - and see whether fish are moving toward or away from it.

High-sensitivity GPS helps you find and mark your favorite hot spots - plus create routes and view your boat's speed for year-round use.

Nobody knows the waters you fish better than you. STRIKER Vivid 5cv can now store up to 2 million acres of maps with 1 feet contours.

An optional all-season kit adds the GT20-TM transducer, so you can use your STRIKER Vivid 5cv all year - with high-contrast color palettes that make it easier to see what's beneath the surface.

Take your bundle along with a rugged, portable carrying case that lets you easily transport it from hole to hole and season to season.

Specifications

PHYSICAL DIMENSIONS7.4 feet' x 4.5 feet' x 2.1 feet' (18.8 x 11.6 x 5.4 cm)

DISPLAY RESOLUTION
800 x 480 pixels

DISPLAY TYPE
WVGA color

WEIGHT
Unassembled kit with device: 8.5 lb (3.9 kg)

WATER RATING
IPX7

Sonar Features & Specifications

FREQUENCIES SUPPORTED
Traditional: 50/77/200 kHz

CHIRP (mid and high)

ClearVu 260/455/800 kHz

Fishfinder Features

SPLIT-SCREEN ZOOM
Yes

ULTRASCROLL(R) (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
Yes

FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
Yes

AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
Yes

ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
Yes

A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
Yes

Additional

Quickdraw Contours
Yes

Vivid Scanning Sonar color palettes (requires accessory purchase): yes
Yes

Bag size
Small

What's in the Box:

• STRIKER Vivid 5cv fishfinder
• GT8HW-IF transducer
• Power/data cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
• Documentation
• Bag with handle
• Foam float
• Rechargeable battery - Lead Acid
• Battery charger

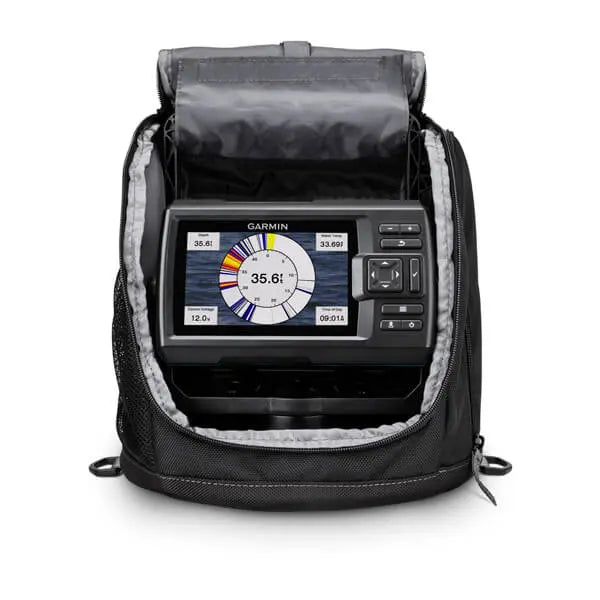

Compact 5-Inch Display Designed for Ice Fishing

The Garmin Striker Vivid 5cv features a bright 5-inch display specially designed for ice fishing enthusiasts. This compact size ensures the device is portable and easy to handle, especially in harsh cold environments. With its exceptional screen clarity and anti-glare technology, anglers can clearly view sonar returns even in bright sunlight or snowy conditions. The vivid color palette enhances target separation, helping users identify fish and underwater structures more efficiently. This screen size and quality make the Garmin Striker Vivid 5cv an ideal companion for anyone serious about ice fishing success.

Powerful Sonar Technology for Clearer Fish Detection

At the core of the Garmin Striker Vivid 5cv is its powerful sonar capability, which provides real-time, vivid sonar images beneath the ice. The device includes traditional CHIRP sonar and ClearVü scanning sonar, offering detailed views of fish targets, bottom structure, and vegetation. Its high-frequency sonar beams penetrate through ice and water with accuracy, allowing anglers to detect fish at various depths efficiently. This technology ensures you won't miss a catch, delivering reliable and detailed underwater information crucial for ice fishing.

Easy-to-Use Ice Fishing Bundle with Essential Accessories

The Garmin Striker Vivid 5cv ice fishing bundle comes equipped with essential accessories that complement the device’s functionality. This bundle includes an ice transducer tailored to work effectively with the ice environment and various mounting options for easy setup. Its user-friendly interface simplifies sonar adjustments so anglers can spend more time fishing and less time navigating menus. Designed specifically for ice fishing rather than chart plotting, this bundle provides focused sonar features that improve your fishing experience without unnecessary extras.
