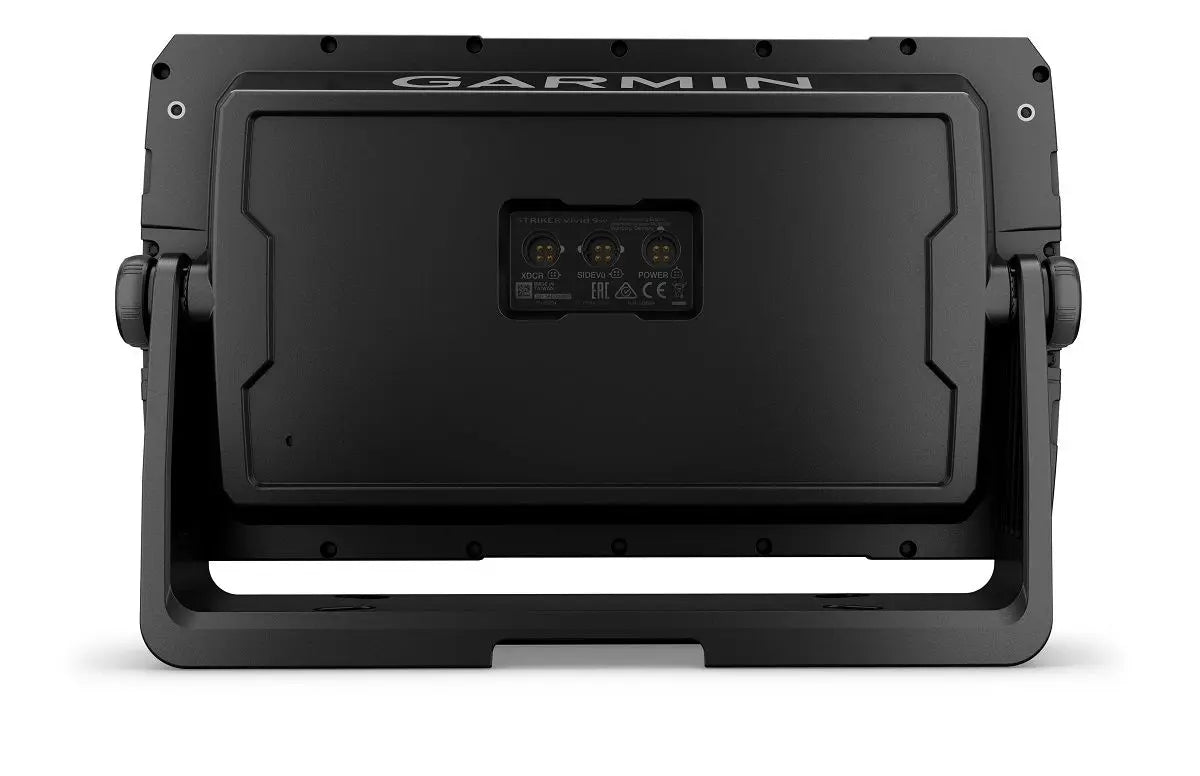

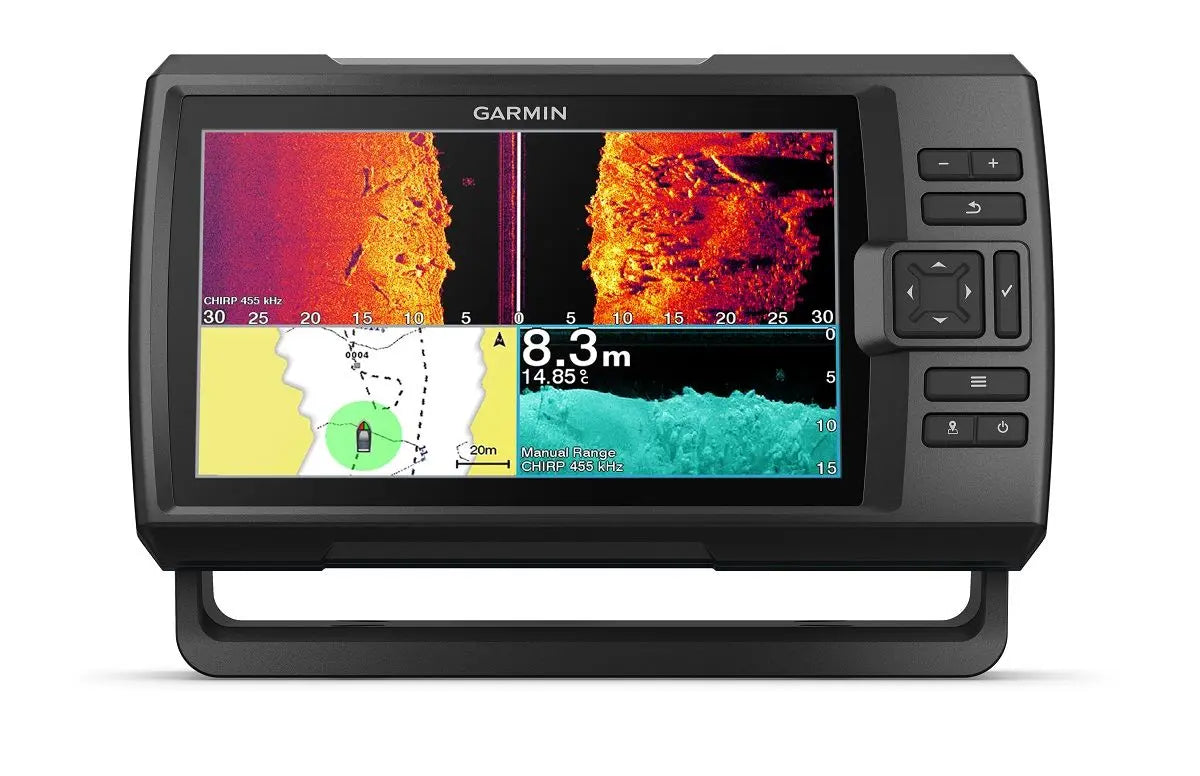

Garmin Striker Vivid 9sv 9in Fishfinder GPS Track Plotter No Transducer

Garmin Striker Vivid 9sv 9in Fishfinder GPS Track Plotter No Transducer

Garmin STRIKER Vivid 9sv without Transducer

Model: 010-02554-02

• The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.


• What a view. This fishfinder supports 3 different types of CHIRP sonars when you pick up a transducer separately.


• Never lose a hot spot again. Use waypoint marking to find your way back.


• What’s under the water’s surface looks pretty good as 1" contours, just saying.


• Wi-Fi® connection1 on land opens up a world of possibilities on the water.

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 9sv fishfinder.

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 5" fishfinder.

This fishfinder supports 3 types of sonar: Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars with a compatible transducer (sold separately).

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw Community.

The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Specifications

General

DIMENSION
11.1" x 6.5" x 2.4" (28.2 x 16.5 x 6.0 cm)

WEIGHT
2.4 lbs (1.1 kg)

WATER RATING
IPX7

DISPLAY TYPE
WVGA color

DISPLAY RESOLUTION
800 x 480 pixels

Maps & Memory

NAVIGATION ROUTES
100

MAPS
Not Applicable

Sonar Features

FREQUENCY
Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü and SideVü 260/455/800 kHz

TRANSMIT POWER
500 W (RMS)

BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
Yes

WATER TEMPERATURE LOG
Yes

Fishfinder Features

SPLIT-SCREEN ZOOM
Yes

FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
Yes

AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS)
Yes

ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
Yes

A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
Yes

WATER TEMPERATURE SENSOR INCLUDED
Yes

Additional

One 4-pin transducer port
Yes

One 4-pin SideVü transducer port
Yes

Wireless Connectivity
Yes

Quickdraw Contours
Yes

Integrated GPS
Yes

Mark Waypoints
Yes

Course over Ground (COG)
Yes

Current draw @ 12V
0.75A

Waypoints
5,000

Track Log
50,000 points; 50 saved tracks

Routes
100

What's in the Box:

• STRIKER Vivid 9sv fishfinder


• Power/data cable


• 12-pin to dual 4-pin transducer adapter cable


• Tilt/swivel mount


• Hardware


• Garmin bumper sticker


• Documentation
