SKU:GAR0100209700

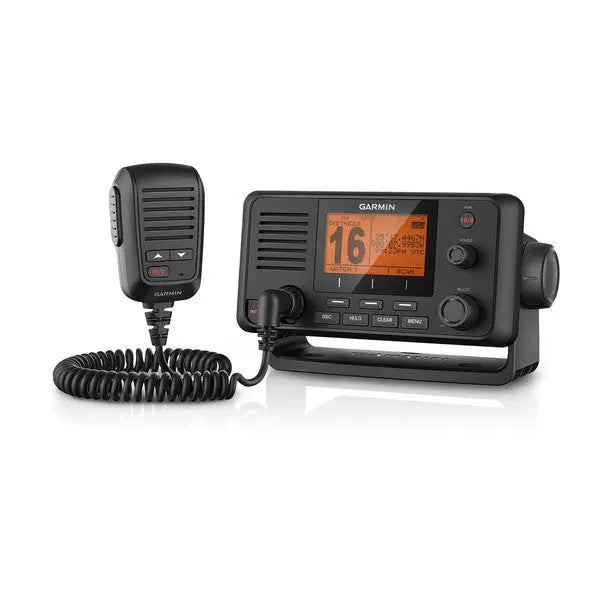

Garmin VHF215 VHF Radio
Garmin VHF 215 Marine Radio
Model: 010-02097-00
During an emergency situation, the 25-watt transmit power of VHF 215 gives fishermen, sailors and cruisers confidence at their fingertips.
VHF 215 is easy to install and use and features a large, easy-to-read display. Just plug and play to compatible Garmin chartplotters and MFDs via the NMEA 2000 network. It provides standard Class D DSC functionality (distress calling and direct calling with user-programmed MMSI). The radio also includes frequency bands for all U.S., Canadian and international marine channels and 10 NOAA weather channels. VHF 215 is NMEA 0183 compatible, and its removable fist microphone can be relocated away from the radio. It’s compatible with the GHS 11 second-station handset.
Because your helm is a source of pride, the VHF 215 marine radio is designed to complement the appearance of GPSMAP® 7x2/9x2, 10x2/12x2, 7400/7600 series chartplotters and GPSMAP 8400/8600 series MFDs.
Specifications
Unit Dimensions
HxWxD: 3.9" x 7.8" x 5.8" (9.8 x 19.7 x 14.9 cm)
Weight
Radio without microphone 42.8 oz. (1.2 kg); Microphone 8.8 oz. (0.25 kg)
Water rating
IPX7
Temperature Range
Operating (from -15 C to 70 C; from 5 F to 158 F); Storage (from -20 C to 70 C; from -4 F to 158 F);
Compass-safe Distance
29.5" (75 cm)
NMEA 2000
Yes
NMEA 0183
Yes
Digital Selective Calling
Class D
Frequency Bands
All USA, Canadian, and international marine channels; 10 NOAA weather channels
Operating Voltage
12.0 Vdc
Current Draw
Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A (from 1 W to 25 W)
Frequency Range
156.050 MHz to 163.275 MHz (including WX channels)
Hailer Output Power
20 W at 4 Ω
Hailer horn impedance
4 Ω
External speaker impedance
4 Ω
Antenna connector
S0-239 (50 Ω)
Maximum antenna gain
9 dBi
What's in the Box:
The Garmin VHF215 VHF Radio is designed to bring reliable communication to marine environments, ensuring that boaters stay connected during their voyages. Garmin, a leader in GPS and communication technology, integrates advanced features into the VHF215 so users can count on clear channels and automatic switching between marine channels. This radio supports Digital Selective Calling (DSC), enabling quick emergency alerts and routine communication with other vessels and coast stations. With Garmin’s commitment to durability and precision, the VHF215 is built to withstand harsh marine conditions while delivering consistent performance on the water.
This model is equipped with an intuitive interface that makes operation straightforward even for first-time users. The large, easy-to-read display allows quick channel selection and clear visibility, even under bright sunlight or rough conditions. The 6-watt transmit power gives robust communication range, while the radio's backlit keypad and display ensure you can operate it efficiently at night. Moreover, the VHF215 features an enhanced speaker for crystal-clear audio, preventing miscommunication in noisy environments typical aboard boats.
The Garmin VHF215 is designed for durability and convenience. It meets strict waterproof standards, protecting it against splashes, rain, and saltwater exposure. Its compact design allows for versatile mounting options on various boat types and sizes. Additionally, the radio supports easy integration with other Garmin marine electronics to create a comprehensive communication setup. Whether you are a casual sailor or a professional mariner, the VHF215 combines rugged construction with practical features to deliver a reliable marine radio solution.
