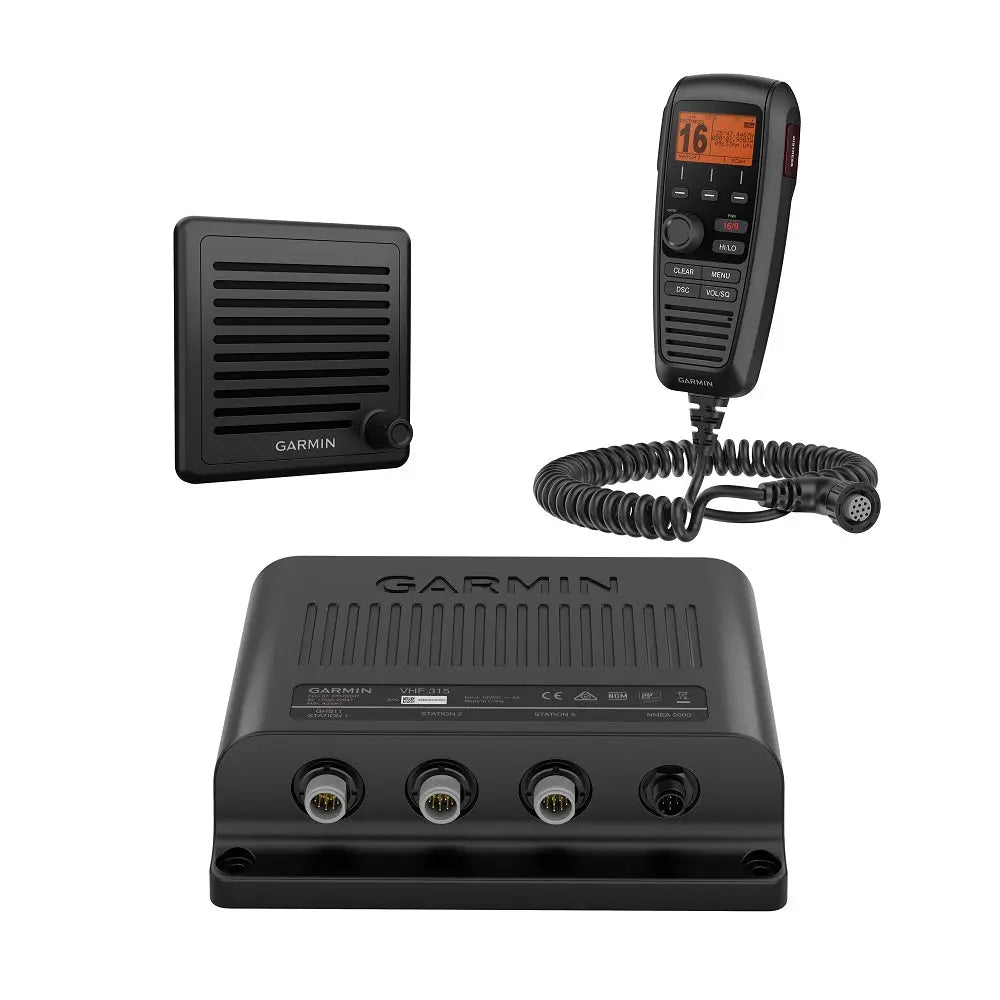

Garmin VHF315 VHF Radio Black

Garmin VHF315 VHF Radio Black

Garmin VHF315 Marine VHF

• Reliable 25-watt VHF Class D DSC marine radio


• Built-in GPS receiver (requires external antenna)


• Includes GHS 11 handset and new active speaker to use as intercom between up to 3 stations


• NMEA 2000® connectivity for easy integration with compatible chartplotters and multifunction displays


• Preprogrammed with U.S., Canadian and international marine channels plus 10 NOAA weather channels

The 25-watt VHF 315 marine radio with Class D DSC is a modular communication solution. It provides the security of reliable communication and full NOAA weather alerts on the water by meeting the latest industry standards. It’s easy to use and integrates seamlessly into the Garmin onboard system. It has a built-in GPS receiver with connector for required external antenna. VHF 315 includes a GHS 11 handset and new active speaker to use as an intercom between up to 3 stations. It’s also equipped with a two-way 30-watt hailer system for communication with other boats or deckhands. NMEA 2000 connectivity enables easy integration with compatible chartplotters, multifunction displays and convenient software updates. Simplified handset connectors and an uncomplicated, easy-to-use interface allow you to get your radio set up quickly, so you can get back out on the water and start communicating.

Weight
3.4 lbs. (1.53 kg)

Operating Temperature Range
-13°F to 131°F (-25°C to 55°C)

Water rating
IPX7

Compass-safe Distance
2" (5 cm)

Digital Selective Calling
Class D

Frequency Bands
All USA, Canadian, and international marine channels; 10 NOAA weather channels

Transmitter Power (at 13.6 Vdc): High Power: 23-25 W; Low Power
0.7-1 W

NMEA 2000 LEN
1

Input Voltage
9.6 - 16 Vdc

Input Draw
350 mA; Receive: 600 mA; Transmit High Power: 6 A max; Transmit Low Power: 2 A max

Dimensions
8.1" x 7.1" x 2.4" (20.5 x 18.1 x 6.0 cm)

What's in the Box:

• VHF 315 marine radio


• GHS 11


• Cradle (for GHS 11)


• Active speaker


• Power cable


• Deck cable (10 meters)


• Microphone hanger


• Mounting hardware


• Documentation
