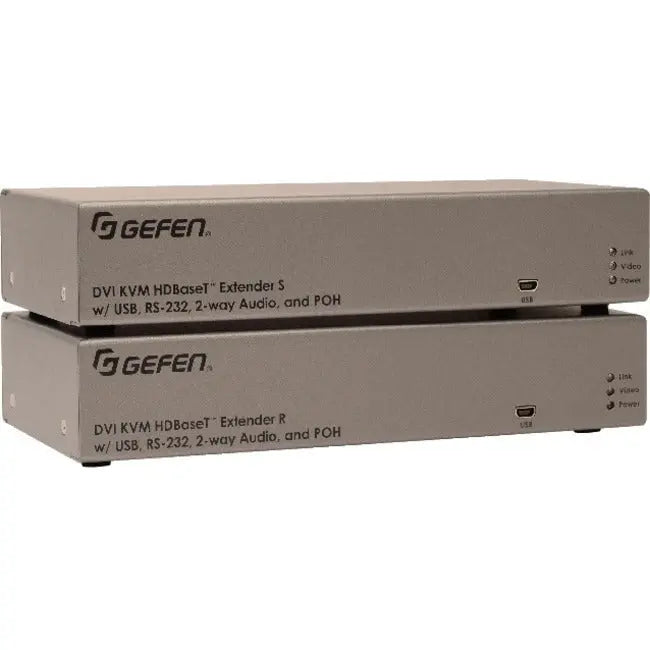

Gefen DVI KVM HDBaseT 2.0 Extender with RS-232 and 2-Way Audio - Rack-Mountable, Model EXT-DVIKA-HBT2

Gefen DVI KVM HDBaseT 2.0 Extender ?w/ RS-232 and 2-Way Audio???

The Gefen EXT-DVIKA-HBT2 is a high-performance DVI KVM extender designed to deliver reliable video, audio, and control signal extension over long distances using a single CAT-5e cable. Utilizing Gefen's advanced HDBaseT™ 2.0 Colligo™ platform, this device supports transmission distances of up to 495 feet (150 meters), making it ideal for professional audiovisual installations where seamless connectivity is essential. The extender supports high resolutions up to 1080p and WUXGA (1920 x 1200), as well as 4K DCI and Ultra HD formats at 60Hz, ensuring compatibility with modern high-definition displays and digital signage applications. It also handles multi-channel digital audio formats, including Dolby Atmos®, Dolby TrueHD, DTS:X™, and DTS-HD Master Audio™, providing immersive sound for critical media playback.

The system's versatile design extends beyond video and audio, offering RS-232 control and two-way analog audio extension, which facilitates remote device management and integration with existing control systems. USB extension capabilities allow for keyboard, mouse, and select peripheral connectivity, transforming the setup into a comprehensive workstation solution. Power Over HDBaseT™ (PoH) technology simplifies installation by powering the transmitter unit via the same CAT-5e cable from the receiver, reducing cabling complexity and eliminating the need for additional power supplies at the transmitter end. The receiver unit requires only an external power supply, and PoH ensures compatibility with other PoH-class devices, streamlining integration.

Gefen's Syner-G™ software enhances the user experience by providing EDID management, real-time link monitoring, and firmware updates, ensuring optimal performance and easy configuration. The robust, rack-mountable enclosure fits into a standard 19-inch rack or can be surface-mounted using included brackets, making it suitable for both fixed installations and mobile setups. The package includes all necessary cables, mounting brackets, and a quick-start guide, ensuring a straightforward installation process. Backed by a two-year warranty, the EXT-DVIKA-HBT2 is a reliable choice for professional AV environments requiring long-distance DVI extension with advanced control and audio features.

Features:

• HDBaseT™ 2.0 Colligo™ platform for enhanced reliability and additional features

• Supports video resolutions up to 1080p, WUXGA (1920 x 1200), and 4K formats at 30Hz or 60Hz

• Extends DVI, USB, RS-232, and two-way analog audio over a single CAT-5e cable up to 495 feet (150 meters)

• Power Over HDBaseT™ (PoH) technology powers the transmitter from the receiver, reducing cabling requirements

• Supports high-bandwidth digital audio formats including Dolby Atmos®, Dolby TrueHD, DTS:X™, and DTS-HD Master Audio™

• Rack-mountable design with included brackets, compatible with standard 19-inch racks

• Gefen Syner-G™ software provides EDID management, link monitoring, and firmware updates

• Includes comprehensive accessories such as mounting brackets, cables, power supply, and quick-start guide
