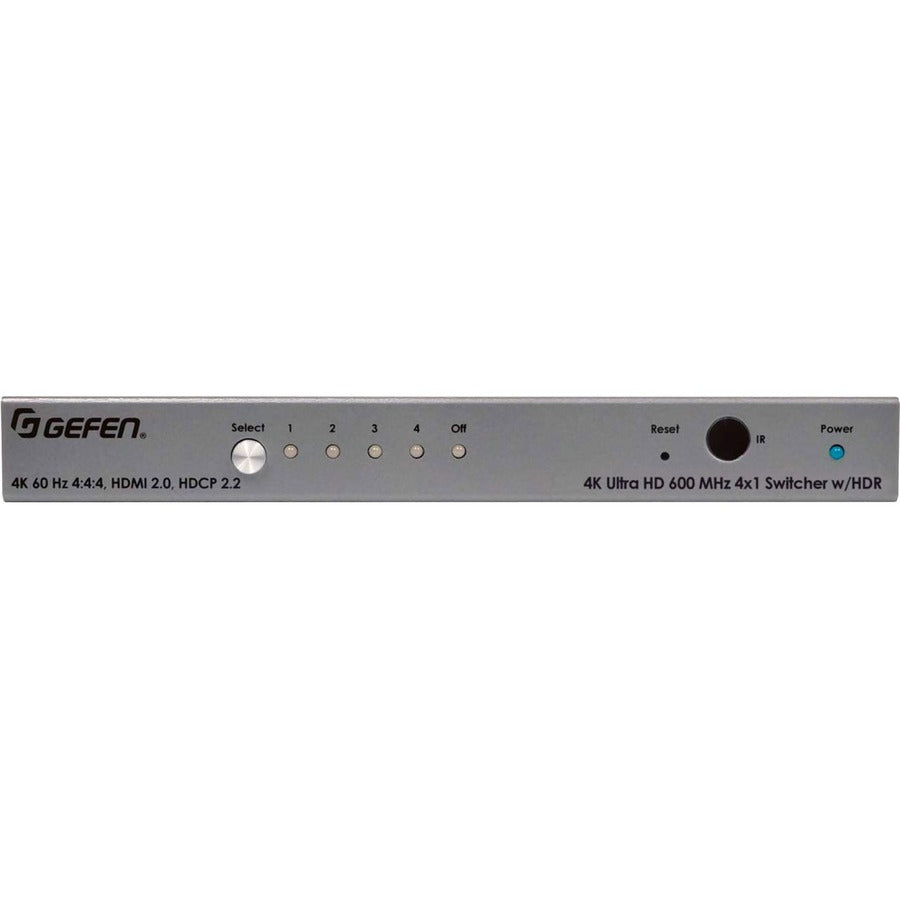

Gefen EXT-UHD600-41 Ultra HD 600 MHz 4x1 HDMI Switcher with HDR

Gefen Ultra HD 600 MHz 4x1 Switcher for HDMI w/ HDR (EXT-UHD600-41)

Route up to four HDMI 2.0 Ultra HD sources to one 4K display with the Gefen EXT-UHD600-41 switcher

The Gefen EXT-UHD600-41 is a professional 4x1 HDMI switcher designed for commercial AV installations, home theaters, conference rooms, and residential media systems. It routes up to four HDMI sources to a single Ultra HD display while supporting HDMI 2.0 performance up to 4K at 60 Hz with 4:4:4 chroma subsampling. HDR support provides enhanced contrast, brightness, and color detail, while compatibility with 4K DCI-Cinema, Ultra HD, 1080p Full HD, and WUXGA resolutions helps integrate current and future source equipment.

This switcher supports HDCP 2.2 and HDCP 1.4 for compatibility with new and legacy components, along with uncompressed LPCM audio up to 7.1 channels and high-bit-rate formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™. 3DTV and lip-sync pass-through help preserve the original content experience. Advanced EDID and HDCP management are available through the web server interface, simplifying source and display integration.

The EXT-UHD600-41 offers automatic input switching, selecting the most recently connected or powered source to reduce manual interaction. Control options include the front panel, infrared remote, RS-232, Telnet, UDP, and Gefen's web interface. Compatibility with Gefen Syner-G™ software supports streamlined network discovery and initial IP configuration. Gefen Long Reach Power provides enhanced power through the HDMI output for select compatible extender devices. The compact, surface-mountable enclosure can be installed behind a display or in an equipment closet, and the included IR extender supports concealed installations. The package includes a power supply with US, EU, UK, and AU plugs, IR extender module, handheld remote, mounting brackets, screws, rubber feet, and quick-start guide. The Gefen EXT-UHD600-41 is covered by a 2-year limited warranty.

Features:

• Supports uncompressed LPCM digital audio up to 7.1 channels

• Supports up to 7.1 channels of high-bit-rate audio, including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™

• Advanced EDID and HDCP management through a web server interface

• Supports 3DTV and lip-sync pass-through

• Supports 12-bit Deep Color at 1080p 60 Hz with 4:4:4 chroma subsampling

• Supports HDCP 2.2 and HDCP 1.4

• Supports HDR 10-bit Deep Color at 4K 60 Hz with 4:2:0 and 4K 24 Hz with 4:4:4

• Supports resolutions up to 4K DCI-Cinema, 4K Ultra HD, 1080p Full HD, and 1920 x 1200 WUXGA

• Routes up to four Ultra HD sources to one Ultra HD display

• Automatic input switching selects the most recently connected or powered source

• Control through the front panel, IR, RS-232, Telnet, UDP, and web server interface

• Gefen Syner-G™ software compatibility for network discovery and IP configuration

• Long Reach Power provides enhanced HDMI output power for select compatible extenders

• Compact surface-mountable enclosure supports concealed or equipment-closet installations
