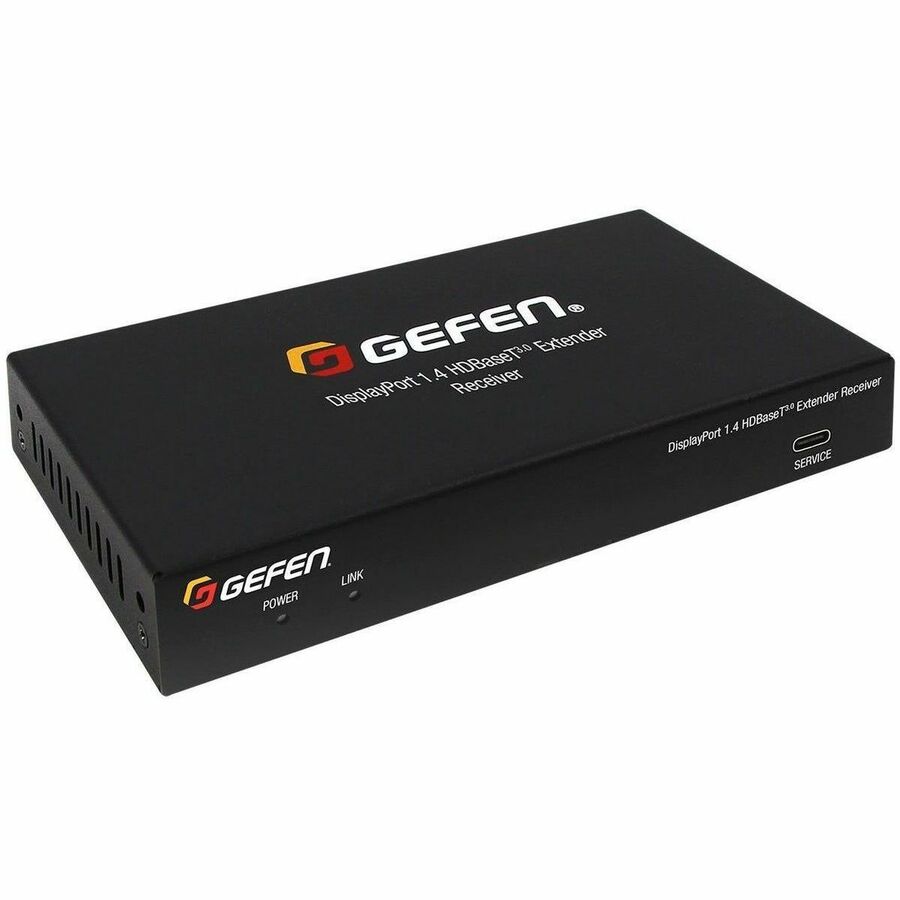

Gefen GF-EXT-DP4-HBT3 DisplayPort 1.4 HDBaseT 3.0 Video Extender with EDID Management and PoC

Gefen DisplayPort 1.4 HDBaseT 3.0 Extender 8K/4K with EDID Management & PoC

The Gefen GF-EXT-DP4-HBT3 is a high-performance DisplayPort 1.4 extender designed for professional AV installations requiring uncompromised image quality and extended reach. Supporting uncompressed 8K resolution at 30Hz or 4K at 120Hz, this device transmits video, audio, and control signals up to 100 meters over a single CAT6a cable, ensuring pristine picture fidelity with a full bandwidth of 32.4Gbps. Its advanced HDBaseT 3.0 technology consolidates multiple signals, reducing cable clutter and simplifying system integration in demanding environments such as broadcast suites, control rooms, and auditoriums. The device's robust construction features a surface-mountable metal enclosure with efficient heat dissipation, making it suitable for continuous operation in critical settings. Additionally, the extender supports full HDR formats including HDR10, HDR10+, Dolby Vision, and HLG, ensuring vibrant and accurate image reproduction. EDID management is incorporated to facilitate compatibility between sources and displays, with DIP switches allowing easy HDCP pass/block configuration for trouble-free handshake processes. Bi-directional Power-over-Cable (PoC) and RS-232 control capabilities enable remote power and control signal transmission, streamlining installation and operation. Compact and field-upgradable via USB-C, the Gefen GF-EXT-DP4-HBT3 offers a future-proof solution for high-resolution video distribution in professional AV workflows, delivering reliable performance and seamless integration across a variety of applications.

Features:

• Uncompressed 8K/4K Video Extension: Supports DisplayPort 1.4, enabling pristine transmission of 8K at 30Hz or 4K at 120Hz video up to 100 meters over a single CAT6a cable. Maintains true 32.4Gbps bandwidth with zero compression for pixel-perfect fidelity.

• Advanced HDBaseT 3.0 Technology: Utilizes the latest HDBaseT standard, reliably carrying audio, video, control, and PoC (Power-over-Cable) signals, minimizing cable clutter and simplifying integration.

• EDID Management & HDCP 2.3: Offers robust Extended Display Identification Data (EDID) management and selectable HDCP pass/block settings using DIP switches, ensuring compatibility and trouble-free handshake between sources and displays.

• Professional-Grade Build: Compact, surface-mountable metal enclosure with efficient heat dissipation, engineered for operation in demanding control rooms, broadcast suites, and medical environments.

• Bi-Directional PoC & RS-232 Control: Features power and control signal transmission in both directions, plus bi-directional RS-232 for remote control and monitoring.
