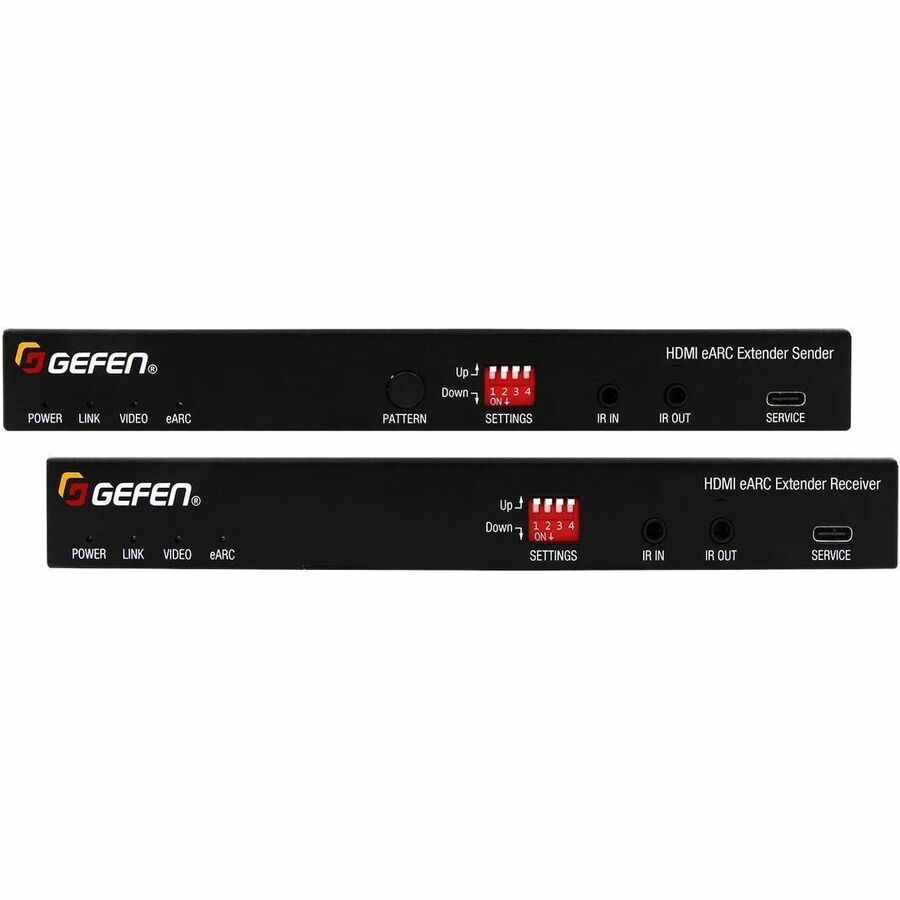

Gefen HDMI eARC Extender over HDBaseT 3.0 – Long-Range 4K UHD Video and Audio Transmission

The Gefen GF-EXT-HDe-HBT3 HDMI eARC Extender over HDBaseT 3.0 is designed to deliver exceptional audio and video performance over long distances, making it ideal for high-end home theaters, conference rooms, and broadcast environments. Powered by advanced HDBaseT 3.0 technology, this extender transmits 4K Ultra HD content at 60Hz with 4:4:4 chroma subsampling and 8-bit color depth up to 328 feet (100 meters) over a single CAT6a cable. Its robust design ensures that every detail, color nuance, and audio track is preserved from source to display, supporting HDR10, HDR10+, Dolby Vision, and HLG for stunning visual clarity. The system's support for eARC, ARC, optical audio, and PCM 2-channel de-embedding allows for studio-quality sound, including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio, providing a comprehensive audio experience alongside high-resolution video. The built-in HDMI loop-out with a 4K-to-1080p downscaler enables local monitoring at a lower resolution, which is particularly useful during setup or troubleshooting. An integrated pattern generator and HDCP toggle facilitate quick diagnostics without the need for external equipment, streamlining installation and maintenance. Additionally, the system supports bi-directional PoC (Power over Cable), reducing cabling complexity by requiring only one power supply to power both units. Control options include IR pass-through and RS-232, ensuring seamless integration with existing control systems. Constructed with a durable metal enclosure and designed for surface-mount installation, the GF-EXT-HDe-HBT3 combines professional-grade reliability with flexible mounting options. Its low power consumption and comprehensive feature set make it suitable for demanding commercial and residential applications where precision and dependability are critical. The package includes the extender set with power supplies, IR cables, mounting hardware, and a quick start guide, backed by a three-year warranty for peace of mind.

Features:

• Extended Reach: Transmits HDMI 2.0b 4K60 4:4:4 8-bit video, eARC/ARC audio, optical audio, IR, RS-232, and Ethernet up to 100 meters (328 feet) over a single CAT6a cable

• Intelligent Audio Management: Supports eARC, ARC, Optical Audio Return, and Optical Audio De-embedding (PCM 2CH) with DIP-switch selectable routing modes. Compatible with Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio

• Integrated 4K-to-1080p Downscaler: HDMI Loop-Out on the transmitter allows local monitoring at a lower resolution for setup or troubleshooting

• Built-in Diagnostics: Features a pattern generator and HDCP toggle to simplify system testing without external equipment

• Bi-directional PoC (Power over Cable): Enables a single power supply to power both units through the CAT6a cable, reducing cable clutter

• Complete Control Integration: Supports bi-directional IR pass-through and RS-232 for seamless control system integration

• Commercial-Grade Construction: Features a durable metal enclosure, surface-mountable with included brackets, and consumes less than 15W during operation
