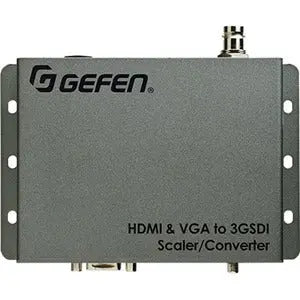

Gefen HDMI & VGA to 3GSDI Scaler/Converter (EXT-HDVGA-3G-SC)

The Gefen EXT-HDVGA-3G-SC is a versatile external video scaler and converter designed to seamlessly switch and scale video signals from HDMI and VGA sources to SDI formats, including 3G-SDI and single link HD-SDI. This device supports input resolutions up to 1920 x 1200 (WUXGA) and 1080p60, making it suitable for a wide range of professional and broadcasting applications. It features a comprehensive on-screen display (OSD) menu for straightforward setup and control, and it can be configured and upgraded via the Gefen Syner-G™ software suite, which simplifies firmware updates and EDID management. The unit's wide power supply range from 6V to 24V DC allows flexible installation options, whether in mobile setups, complex studio environments, or remote locations. Its compact form factor, locking power connector, and surface-mount design facilitate secure and unobtrusive installation.

Using the included HDMI and VGA cables, connect your video sources to the respective inputs. If embedding analog L/R audio into the SDI stream, connect the 3.5mm stereo cable from your source to the device. The SDI output can then be connected to displays or downstream equipment. Power the device with the supplied 12V DC power supply, and once powered, select your desired input via the HDMI or VGA buttons. The device's LED indicators provide status updates, while the OSD menu allows for easy adjustment of settings such as aspect ratio control—full screen, panoramic, letterbox, pillarbox, or crop. The scaler also includes a test pattern generator for efficient system calibration. Supporting up to 7.1 LPCM audio over HDMI and embedding stereo audio from VGA sources, this scaler ensures high-quality audio and video transmission for professional AV installations.

Designed with user convenience and flexibility in mind, the Gefen EXT-HDVGA-3G-SC is an essential tool for AV professionals needing reliable conversion and scaling between HDMI, VGA, and SDI formats. Its robust feature set, including advanced EDID management, aspect ratio control, and a user-friendly interface, ensures compatibility with a wide array of equipment. The product package includes all necessary cables, a quick-start guide, and a durable power supply, making setup straightforward and efficient. Whether upgrading existing systems or deploying new installations, this device offers high performance and adaptability for demanding AV environments.

Features:

• USB port for use with Gefen Syner-G™

• Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings

• Embeds 2-channel analog stereo audio in SDI signal (VGA Input only)

• Supports up to LPCM 7.1 audio over HDMI

• Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop

• Includes a Test Pattern Generator for quick system setup

• On-screen display (OSD) menu for easy configuration and control

• Supports input resolutions up to 1920 x 1200 (WUXGA) and 1080p60

• Outputs resolutions up to 1080p60

• Converts and scales HDMI and VGA sources to SDI formats, embedding audio as needed
