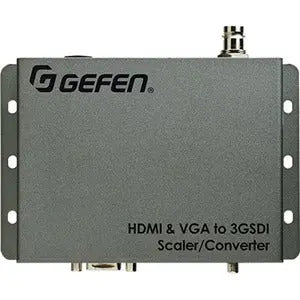

Gefen HDMI & VGA to 3GSDI Scaler/Converter (EXT-HDVGA-3G-SC)

The Gefen EXT-HDVGA-3G-SC is a versatile external video scaler and converter designed to seamlessly switch between HDMI and VGA sources and output to SDI formats, including 3G-SDI and single link HD-SDI. Its capability to scale video up to 1080p Full HD ensures compatibility with a wide range of professional displays and broadcast equipment. The device also features the ability to embed HDMI audio or analog L/R stereo audio into the SDI stream, providing flexible audio integration for various setups. An intuitive on-screen display (OSD) menu simplifies configuration and control, enabling users to adjust aspect ratios, resolutions, and other parameters effortlessly. The unit can be managed and updated via the Gefen Syner-G™ software suite, which offers advanced features such as custom EDID management and firmware updates, making it ideal for both field use and complex studio environments. Its wide power supply operating range of 6V to 24V DC offers installation flexibility across different power sources, while a locking power connector and compact design facilitate secure and space-efficient deployment. The package includes essential cables—HDMI, VGA, and mini-stereo audio—as well as a 12V DC power supply, making setup straightforward and ready for immediate use.

Features:

• USB port for use with Gefen Syner-G™ for firmware management and configuration

• Supports up to LPCM 7.1 audio for HDMI input, ensuring high-quality sound

• Gefen Syner-G™ software simplifies in-field firmware updates and EDID management, including custom input timings

• Embeds 2-channel analog stereo audio into the SDI stream when using VGA input

• Built-in Test Pattern Generator for quick system setup and troubleshooting

• On-screen display (OSD) menu provides easy setup and adjustments

• Flexible aspect ratio control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop

• Outputs video at resolutions up to 1080p60 for compatibility with modern displays

• Converts and scales HDMI and VGA signals, embedding analog audio into SDI streams

• Supports input resolutions up to 1920 x 1200 (WUXGA) and 1080p60, accommodating various source devices
