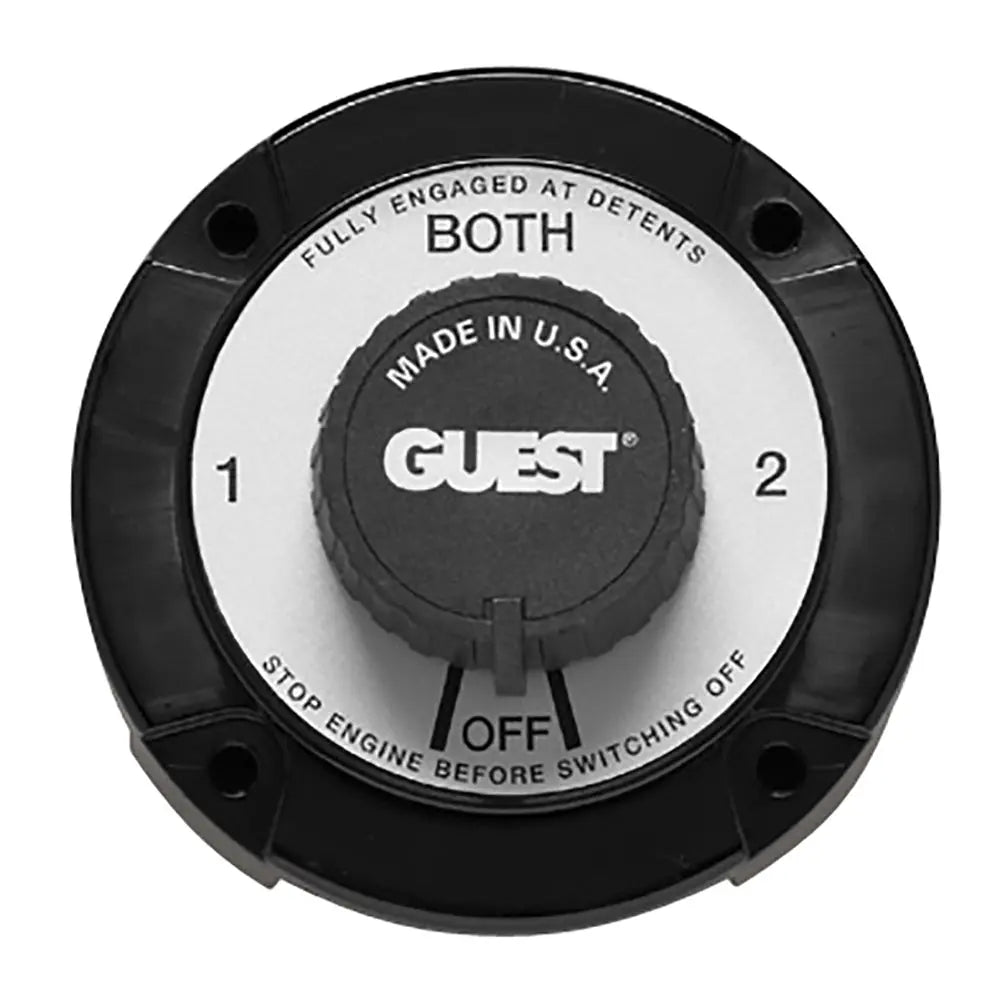

Guest 2110A Battery Selector Switch with Alternator Field Disconnect (AFD)

Battery Selector Switch with AFD

Part No. 2110A

Description

Continuous Amps: 230
Momentary Amps: 345
Dimensions: 5"D x 2-3/4"H

Product Features
Alternator field disconnect (AFD) allows selection of any positions, including "off" without damage to alternator or electrical system. AFD is required on some electrical systems.

Heavy duty copper sweep contacts

"Make before break" contacts allow selection of all positions except "off" while engine is running

Use with 6, 12, 24 or 36 volt systems

New design is easy to retrofit into existing hole patterns

Built-in skirt protects connections

Exclusive flat 360 degree "sweep" contact design provides up to 60% more contact area than other switch designs

Surface or rear panel mounting

Marine grade construction

One year warranty

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Guest 2110A Battery Selector Switch with Alternator Field Disconnect (AFD) is designed for reliable power management in various electrical systems. This switch features a heavy-duty copper sweep contact design, providing up to 60% more contact area compared to traditional switches, ensuring a solid and consistent connection. Its robust construction makes it suitable for marine applications and other demanding environments, with the flexibility to be mounted on either the surface or rear panel of equipment for easy installation.

Equipped with an AFD feature, this switch allows you to select any position, including 'off,' without damaging the alternator or electrical system. This is particularly important for systems that require frequent switching or emergency shutoff capabilities. The switch supports continuous current of 230 amps and momentary pulses up to 345 amps, making it suitable for high-current applications. Its new design simplifies retrofit into existing hole patterns, saving installation time and effort.

Designed to work with 6, 12, 24, or 36-volt electrical systems, the Guest 2110A offers versatility across various vehicle and marine power setups. Its built-in skirt protects all connections from environmental exposure, ensuring long-term durability even in harsh conditions. The switch's

Features:

• Alternator field disconnect (AFD) allows position selection including 'off' without damaging the system

• Heavy-duty copper sweep contacts ensure reliable electrical connection

• 'Make before break' contacts allow switching while the engine is running, except to 'off'

• Compatible with 6, 12, 24, or 36-volt electrical systems

• Easy retrofit design fits existing hole patterns for quick installation

• Built-in protective skirt shields connections from environmental damage

• Exclusive flat 360-degree sweep contact design provides up to 60% more contact area than conventional switches

• Suitable for surface or rear panel mounting

• Marine-grade construction for durability in harsh environments

• Includes a one-year warranty for reliable performance
