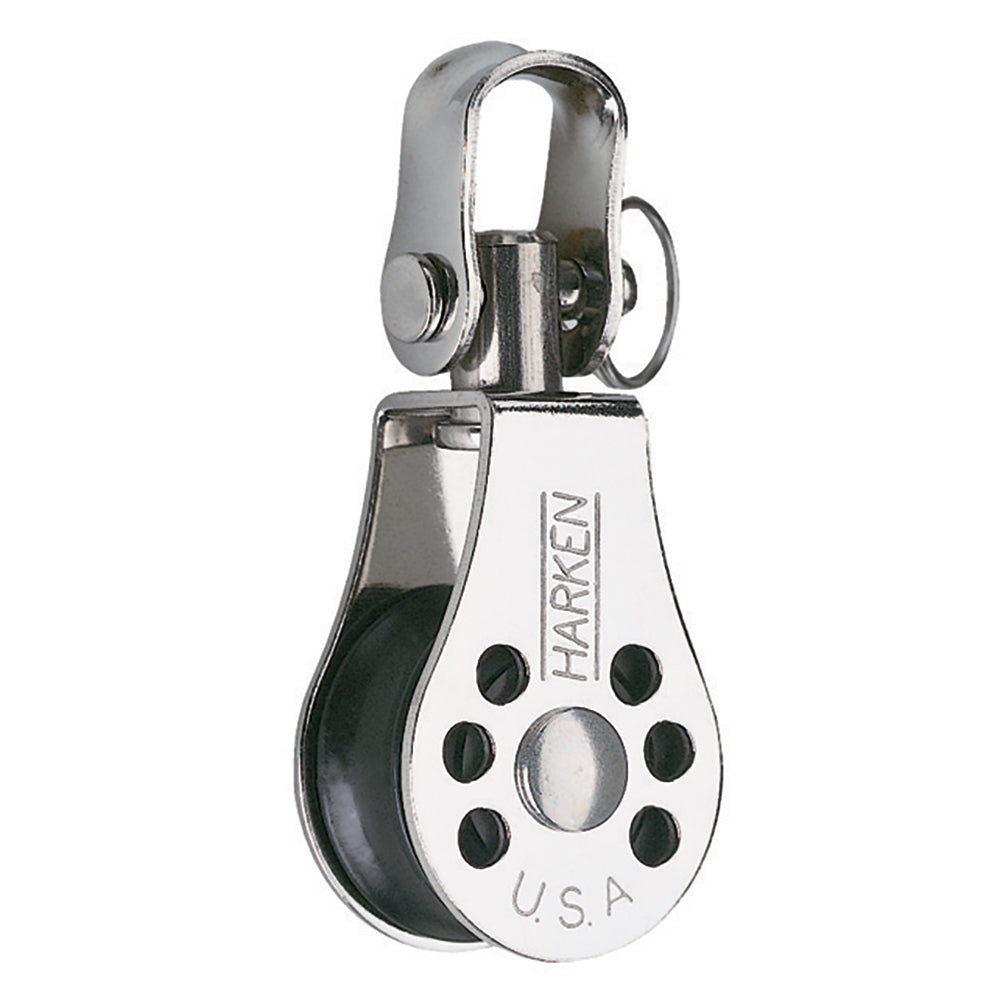

Harken 22mm Micro Block with Swivel - Lightweight and Compact Sailboat Hardware

22mm Micro Block with Swivel

Low-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.

Specifications:

• Sheave: 22mm / 7/8in.
• Length: 60mm / 2-3/8in.
• Weight: 28g / 1oz.
• Shackle pin: 4mm / 5/32in,
• Maximum line: 6mm / 1/4in.
• Maximum working load: 91kg / 200lb
• Breaking load: 544kg/ 1200 lb

The Harken 22mm Micro Block with Swivel is a high-quality, low-friction component designed for lightweight control line applications on sailboats, dinghies, and smaller boats. Its compact size and lightweight construction make it ideal for situations where minimal weight and space are critical, providing reliable performance without adding bulk to your rigging. This micro block features a 22mm sheave that comfortably accommodates lines up to 1/4 inch in diameter, ensuring compatibility with a wide range of control lines used in sailing and small craft applications. The sturdy shackle pin measures 5/32 inch, offering secure attachment points for your lines and hardware, while the maximum working load of 200 pounds ensures safe operation during typical sailing conditions. The breaking load of 1200 pounds provides an extra margin of safety for demanding sailing environments, making this block both reliable and durable for frequent use. The overall design emphasizes ease of installation and smooth operation, thanks to its lightweight construction that weighs only 1 ounce and measures less than 3 inches in length. Whether you're upgrading your existing rig or customizing a new setup, this micro block is a versatile component that enhances control and efficiency on the water. Built by Harken, a trusted name in maritime hardware, the 22mm Micro Block with Swivel combines innovation, durability, and performance in a compact package that meets the demands of modern sailing enthusiasts.

Features:

• Sheave diameter: 22mm / 7/8 inch for efficient line handling

• Lightweight construction: weighs only 1 ounce for minimal added weight

• Compact size: measures approximately 2-3/8 inches in length, ideal for small craft

• High strength: maximum working load of 200 pounds and breaking load of 1200 pounds for safety

• Durable materials: designed for repeated use in demanding sailing conditions

• Easy to install: includes a secure 5/32 inch shackle pin compatible with various lines

• Versatile application: suitable for sailboards, dinghies, and lightly loaded control lines
