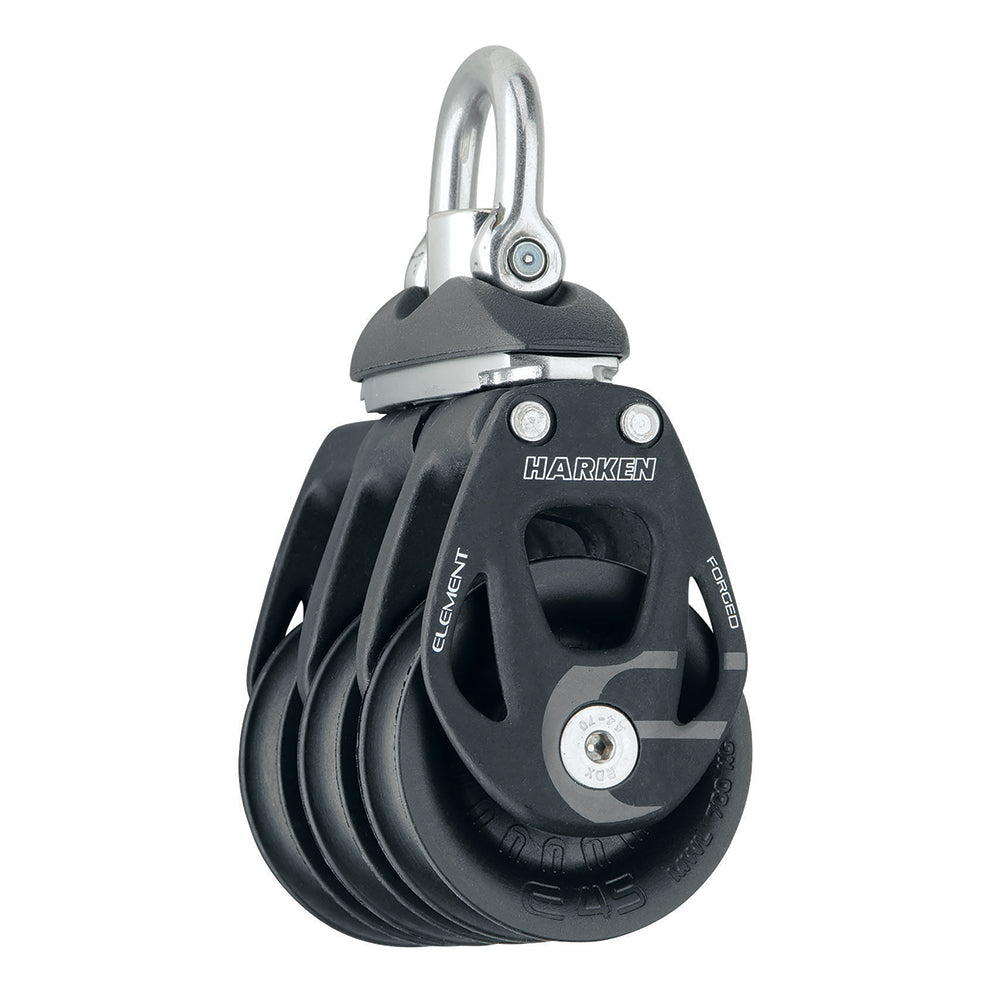

Harken 45mm Triple Element Block with Swivel - Part Number 6240

45mm Triple Element Block with Swivel

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Elements design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Specifications:

• Sheave: 45mm / 1-3/4in
• Length: 108mm / 4-1/4in
• Weight: 265g / 9.3oz
• Shackle pin: 6mm / 1/4in
• Maximum line: 12mm / 1/2in
• Maximum working load: 1050kg / 2315lb
• Breaking load: 2100kg / 4630lb

The Harken 45mm Triple Element Block with Swivel combines durability and efficiency, making it an excellent choice for demanding sailing applications. Crafted with forged aluminum sideplates featuring compound curves, this block offers a robust yet contemporary design that ensures long-lasting performance. The sideplates are hardcoat-anodized to resist corrosion, while the composite bearing sheave provides smooth operation and extended service life. Designed to minimize metal use without compromising strength, the element block delivers reliable performance at a competitive price point.

Measuring 1-3/4 inches in sheave diameter and 4-1/4 inches in length, this block supports a maximum line diameter of 1/2 inch and a maximum working load of 2,315 pounds. The shackle pin measures 1/4 inch in diameter, offering secure attachment options for various rigging setups. With a breaking load of 4,630 pounds, the Harken 45mm Triple Element Block with Swivel is engineered for safety and durability across a range of sailing conditions.

Ideal for use in high-performance sailing systems, this block features a swivel that allows for easy orientation and reduces line chafe during operation. Its lightweight design, weighing just over 9 ounces, ensures minimal added weight to your rig without sacrificing strength or reliability. Whether upgrading existing hardware or outfitting a new rig, the Harken 6240 offers excellent value and proven quality, backed by Harken's reputation for precision engineering and craftsmanship.

Features:

• Forged aluminum sideplates with compound curves for strength and contemporary design

• Hardcoat-anodized sideplates resist corrosion and environmental wear

• Composite bearing sheave provides smooth operation and long service life

• Swivel feature allows for easy orientation and reduces line chafe

• Supports line diameters up to 1/2 inch with a maximum working load of 2,315 pounds

• Shackle pin diameter of 1/4 inch for secure attachment

• Lightweight design weighing approximately 9 ounces for minimal rig weight addition

• Robust breaking load capacity of 4,630 pounds for safety and reliability
