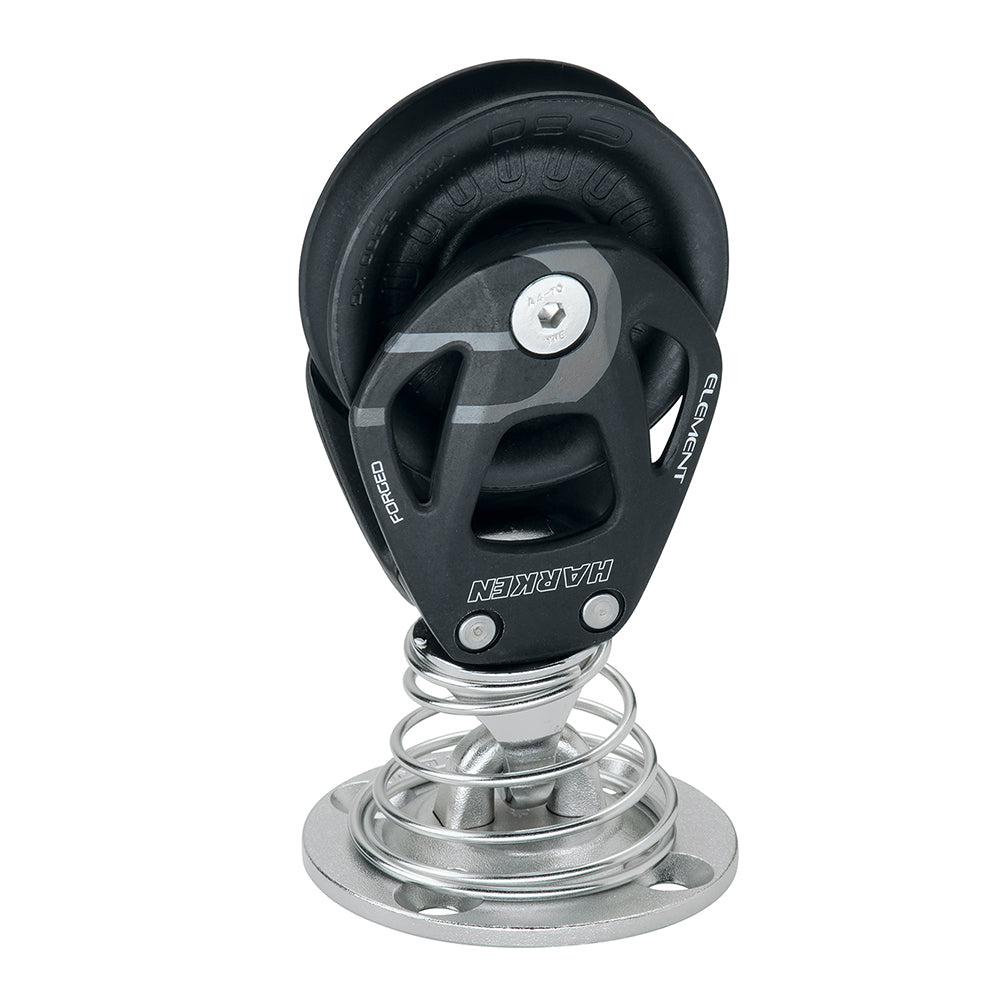

Harken 80mm Element Stand Up Block - Durable Aluminum Sheave with High Load Capacity

80mm Element Stand Up Block

Stand-up blocks are an addition to our Element line. Use them for sheeting and halyard systems, running backstays, controls and other applications where you dont want the block to hit the deck.

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Elements design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Specifications:

• Sheave: 80mm (3-1/8")
• Max Line: 16mm (5/8")
• Max Working Load: 2200kg (4850lbs)

The Harken 80mm Element Stand Up Block is designed for demanding sailing applications where the block must stay clear of the deck. Ideal for sheeting, halyard systems, running backstays, and control lines, this block combines strength and lightweight performance.

Constructed with forged aluminum sideplates featuring compound curves, the Element Stand Up Block offers exceptional durability and modern aesthetics. The sideplates are hardcoat-anodized to resist corrosion, ensuring long-lasting performance even in harsh marine environments. The block's design minimizes metal usage to protect the sheave while maintaining robustness, providing an optimal balance of strength and weight efficiency.

The sheave measures 80mm (approximately 3-1/8 inches) in diameter and is capable of handling line diameters up to 5/8 inch (16mm). With a maximum working load of 2200kg (4850 lbs), this block is suitable for high-load sailing applications. The composite bearing sheave is engineered for long service life, resisting corrosion and wear over time, making it an excellent choice for both racing and cruising vessels.

Whether upgrading existing rigging or installing new systems, the Harken 80mm Element Stand Up Block offers professional-grade performance with a focus on reliability and efficiency. Its contemporary design and robust construction make it a versatile component for various sailing and marine tasks.

Features:

• Sheave Diameter: 80mm (3-1/8 inches)

• Max Line Diameter: 5/8 inch (16mm)

• Maximum Working Load: 2200kg (4850 lbs)

• Constructed with forged aluminum sideplates for strength

• Hardcoat-anodized sideplates for corrosion resistance

• Composite bearing sheave for durability and long service life

• Designed for sheeting, halyard systems, and control lines

• Suitable for applications where the block must stay clear of the deck
