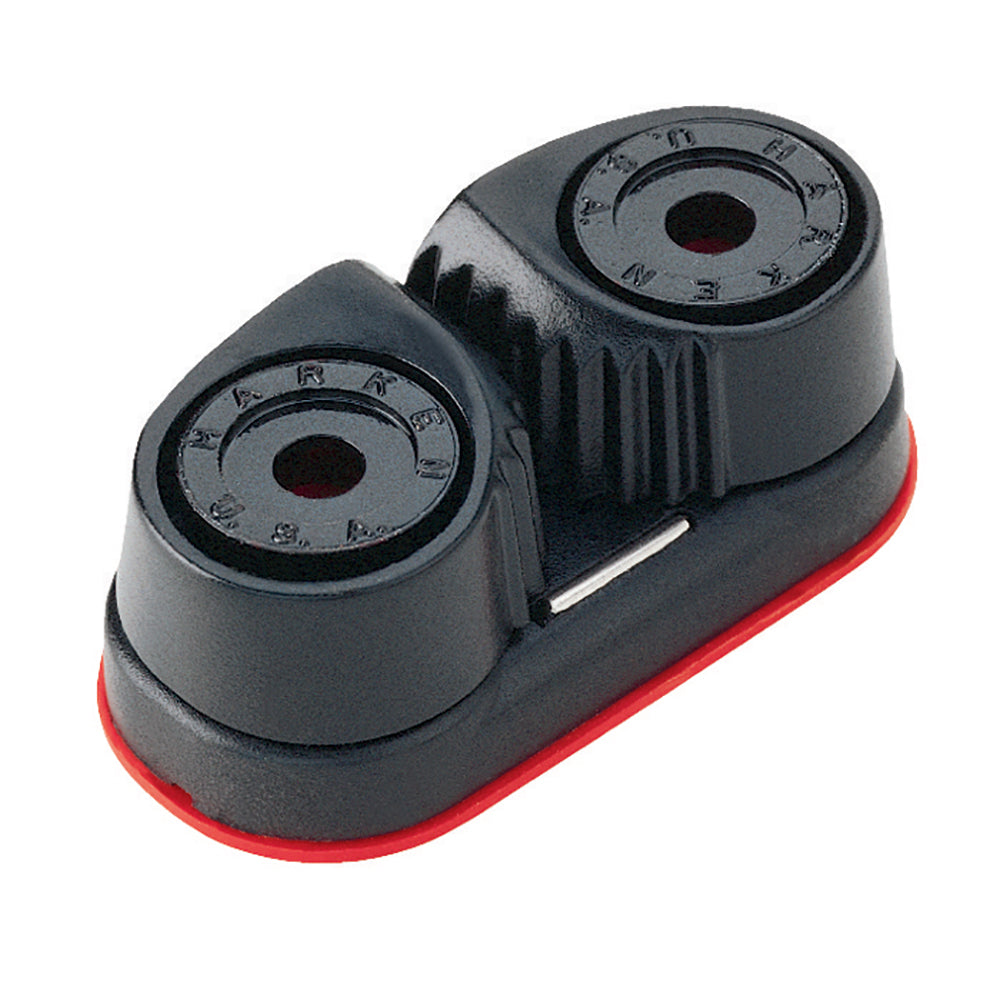

Harken Micro Carbo-Cam Cleat Part Number 471 for Racing and Sailing

Micro Carbo-Cam Cleat

Harken ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming. Lightweight fiber-reinforced Carbo-Cams for racing where weight is critical, or where adjustments are less frequent.

Specifications:

• Height: 22mm / 7/8in.
• Length: 48mm / 1-7/8in.
• Width: 24mm / 15/16in.
• Weight: 19g / .67oz
• Minimum line: 3mm / 1/8in
• Maximum line: 6mm / 1/4in.
• Fastener spacing: 27mm / 1-1/16in.
• Fasteners: 4 RH mm / #8 RH in.
• Maximum working load: 68kg/ 150lb
• Breaking load: 136kg / 300lb
• Pawls: Plastic carbon-matrix

The Harken Micro Carbo-Cam Cleat Part Number 471 is designed for lightweight performance in racing and sailing applications. Made from fiber-reinforced Carbo-Cams, this cleat offers a secure hold on lines up to 1/4 inch in diameter while allowing for quick, precise releases. Its ball bearing cam mechanism ensures effortless trimming, making adjustments fast and reliable even under load. With a height of just under 1 inch and a length of approximately 1 7/8 inches, this compact cleat is ideal for spaces where weight savings are critical and frequent adjustments are less common. The plastic carbon-matrix pawls contribute to durability and smooth operation, while the maximum working load of 150 pounds provides confidence in performance under typical sailing conditions. Installation features include four #8 RH in fasteners spaced about 1-1/16 inches apart, compatible with lines ranging from 1/8 to 1/4 inch.

Features:

• Lightweight fiber-reinforced Carbo-Cams for optimal weight savings

• Ball bearing cam cleat for secure line holding and easy trimming

• Compact design measuring approximately 7/8 inch in height and 1-7/8 inches in length

• Maximum line diameter of 1/4 inch with a minimum of 1/8 inch

• Maximum working load of 150 pounds and breaking load of 300 pounds

• Plastic carbon-matrix pawls for durability and smooth operation

• Designed for quick installation with four #8 RH fasteners spaced about 1-1/16 inches apart

• Suitable for racing, sailing, and other applications where weight and performance are critical
