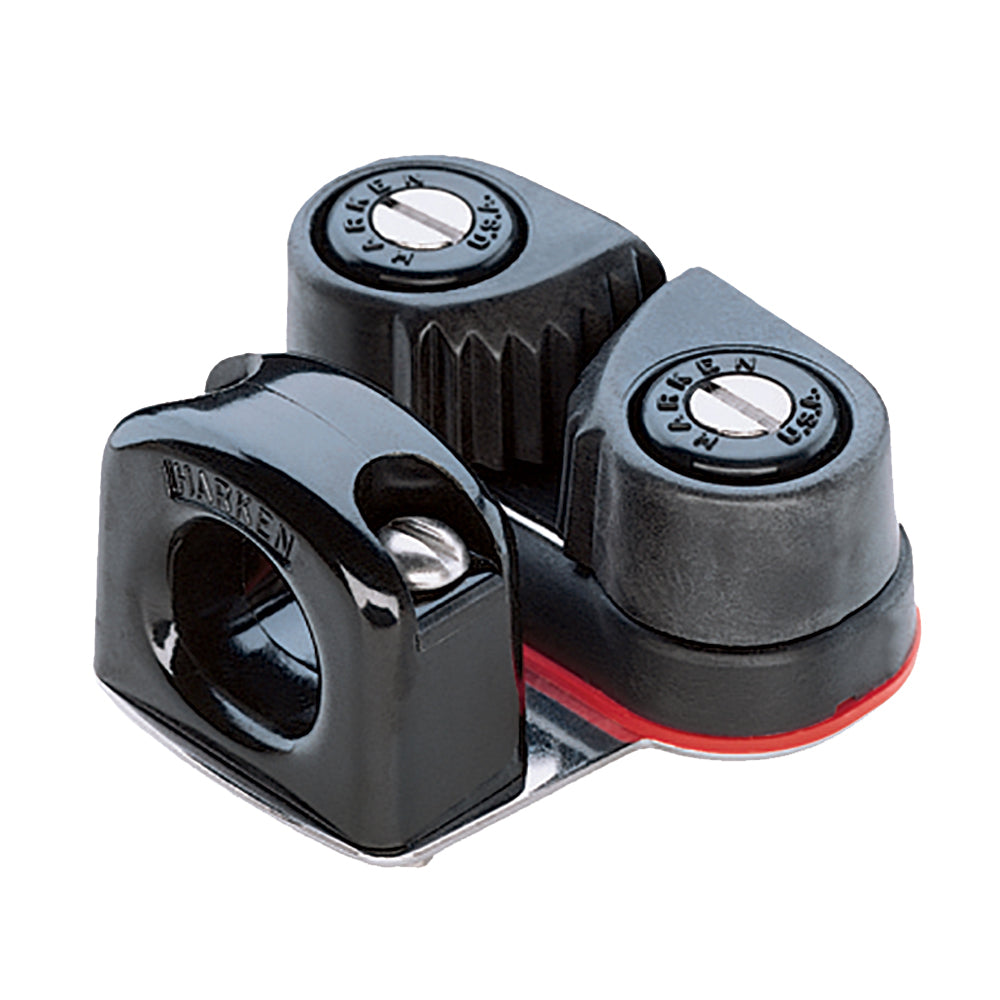

Harken Standard Carbo-Cam Base with Bullseye – Marine Rigging and Sailboat Hardware

Micro Standard Carbo-Cam Base with Bullseye

Micro Carbo-Cam with bullseye keeps line fair. Mounts on stainless steel base.

Specifications:

• Height: 33mm/1-5/16in
• Weight: 85g/3oz
• Minimum line: 3mm / 1/8in
• Maximum line: 10mm / 3/8in
• Fastener spacing: 27mm / 1-1/16in
• Fasteners: 5 FH mm / #10 FH in
• Maximum working load: 91kg/ 200lb

The Harken Standard Carbo-Cam Base with Bullseye is an essential component for marine rigging applications, designed to ensure precise line control and durability. Constructed with high-quality Carbo-Cam material, this base features a stainless steel mounting plate that provides excellent corrosion resistance and stability in harsh marine environments. The bullseye alignment feature keeps your line tracking true, reducing wear and maintaining optimal performance during sailing or rig adjustments. Its robust design supports a maximum working load of up to 200 pounds, making it suitable for a variety of sailboat and yacht configurations. The base is compatible with lines ranging from 1/8 inch to 3/8 inch in diameter, accommodating a wide range of rigging setups. The fastener spacing of 1-1/16 inches and five fasteners ensure secure mounting on your deck or hardware. With a height of approximately 1-5/16 inches and a weight of just under 3 ounces, this component offers a balance of strength and lightweight performance. Whether upgrading existing hardware or outfitting a new rig, the Harken Carbo-Cam Base with Bullseye provides reliable, smooth line handling for marine applications. It is designed for easy installation and long-term durability, supporting the demanding needs of sailors seeking consistent and efficient line management.

Features:

• High-quality Carbo-Cam construction for durability and corrosion resistance

• Bullseye alignment feature ensures precise line tracking

• Mounts on stainless steel base for stability and longevity

• Supports line diameters from 1/8 inch to 3/8 inch

• Maximum working load of 200 pounds for demanding marine applications

• Secure mounting with 5 fasteners spaced at 1-1/16 inches
