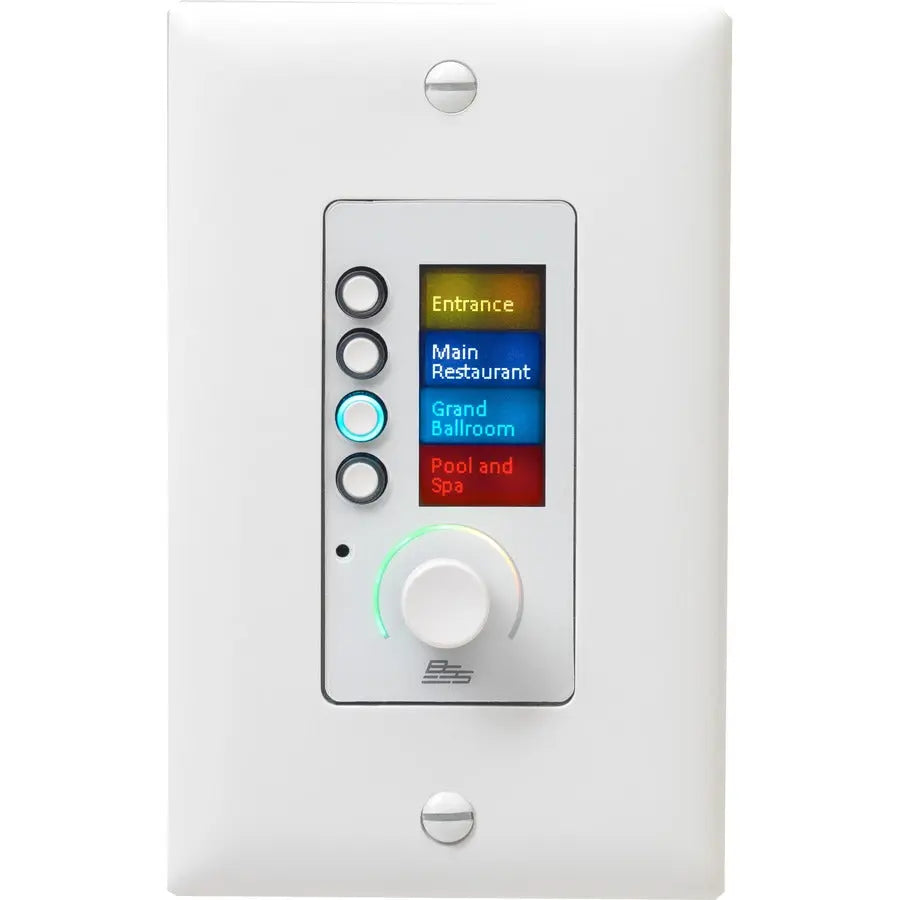

HARMAN PRO BSS Soundweb London EC-4BV Ethernet Wall Controller with 4 Buttons and Volume Control

BSS EC-4BV Ethernet Controller with 4 Buttons and Volume Control

The HARMAN PRO BSS Soundweb London EC-4BV Ethernet wall controller is designed for seamless integration within professional audio systems, offering intuitive control over sound parameters. This versatile device features a compact, wall-mountable design available in white, making it suitable for various installation environments. Equipped with a single Ethernet port supporting Power over Ethernet (PoE), the EC-4BV simplifies setup and provides reliable network connectivity for configuration, control, and monitoring of compatible audio equipment.
The EC-4BV includes a push/rotary encoder, an encoder ring, four backlit buttons, and a high-resolution LCD screen. The multi-color backlit components can display up to eight different colors with adjustable brightness, enhancing visibility in diverse lighting conditions. The push/rotary encoder allows for continuous parameter adjustments such as volume control, while a press action can execute binary functions like mute or recall presets. The encoder ring displays real-time audio levels and volume settings, providing visual feedback that enhances user interaction.
The four buttons support binary commands such as muting, source selection, or preset recall, making it easy to manage multiple functions from a single control point. The LCD screen with 64x128 pixel resolution can be customized to display relevant text, status updates, or system information, further streamlining system operation. The EC-4BV supports a 'sleep' mode that dims or turns off LEDs after a specified period of inactivity, reducing distractions in low-light environments. User interactions will wake the device instantly, ensuring quick response times.
Remote locking and unlocking capabilities add a layer of security, allowing control via other systems or a local PIN entry. Additionally, the device supports multiple operation modes, enabling dynamic reassignment of controls based on user needs or system configuration. The EC-4BV's robust construction and versatile features make it an ideal choice for professional audio installations where reliable, flexible control is essential. Backed by a one-year limited warranty, this controller ensures long-term performance and compatibility within sound reinforcement networks.

Features:

• Ethernet connectivity with PoE for simplified setup and power

• Wall-mountable design suitable for various installation environments

• Push/rotary encoder for continuous and binary parameter control

• Encoder ring displays real-time audio levels and volume settings

• Four multi-color backlit buttons for quick access to functions like mute and source selection

• High-resolution LCD screen (64x128 pixels) for customizable display

• Sleep mode reduces LED distraction in dim environments

• Remote lock/unlock via control systems or PIN entry for security

• Multiple operational modes allow dynamic control reassignment

• Compatible with BSS Soundweb London and HiQnet systems
