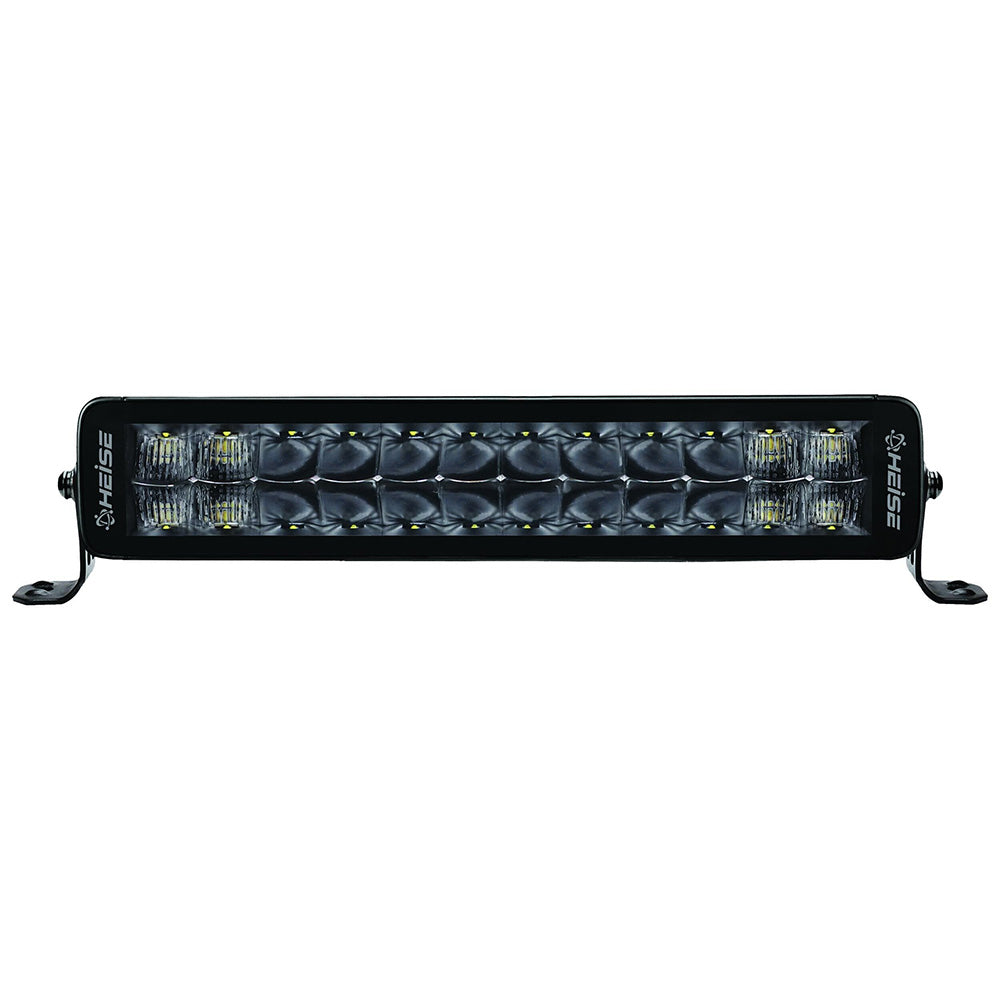

HEISE LED Lighting Systems Dual Row Blackout LED Lightbar 14" with Combo Beam Pattern

Dual Row Blackout LED Lightbar - 14"

An improved design makes the latest generation of Heise Blackout Series LED lights a versatile lighting solution for different vehicles and uses. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the drivers lighting coverage needs.

The hybrid 90 flood and 8 spot beam pattern combination deliver the best of both worlds with intense spotlights in the center flanked by widebeam lights on each side. Heises protective vent port allows for internal moisture to escape and prevents any external moisture from entering the lightbar housing.

Features:

• Input Voltage: 10-30V Dc
• Color Temperature: 5700K
• Beam Pattern: Combo: 90 Flood / 8 Spot
• Housing Material: Die-Cast Aluminum
• Color: Black
• Membrane: Protective Vent Port
• Lens Material: Polycarbonate
• Mounting Bolt Drill: 0.25
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316
• Operating Temperature: -40F To +140F
• Protection: Reverse Polarity
• Mounting: Side Rear
• Limited Lifetime Warranty

Specifications:

• Length: 14
• Wattage: 120W
• Raw Lumens: 10,080lm
• Lux at 10m: 3666
• Current Consumption @ 13.8V: 3.8A
• IP Rating: IP67

Vehicle Applications:

• Universal

The HEISE LED Lighting Systems HE-BD14 Dual Row Blackout LED Lightbar offers a sleek and versatile lighting solution designed for a variety of vehicles and applications. Featuring a refined die-cast aluminum housing with a durable black finish, this 14-inch lightbar combines style and function to enhance visibility and safety during night driving or off-road adventures. Its improved optics utilize indirect placement, providing better control over the beam pattern to suit specific vehicle setups and lighting coverage needs. The hybrid design delivers a powerful combination of a 90-degree flood and 8-degree spot beams, offering a focused central light supplemented by wide coverage on the sides for optimal illumination across different terrains or work environments.

Features:

• Input Voltage: 10-30V DC, suitable for most vehicle electrical systems

• Color Temperature: 5700K for natural daylight clarity

• Beam Pattern: Combo - 90 Flood / 8 Spot for versatile lighting coverage

• Housing Material: Die-Cast Aluminum for durability and heat dissipation

• Color: Black finish for a sleek appearance

• Membrane: Protective Vent Port to prevent internal moisture buildup

• Lens Material: Polycarbonate for impact resistance and clarity

• Mounting Bolt Drill Size: 0.25 inches for flexible installation options

• Electronics: Integrated-Epoxy Encapsulated for reliability

• Hardware: Stainless Steel 316 for corrosion resistance

• Operating Temperature Range: from -40°F to +140°F to withstand extreme conditions

• Protection: Reverse Polarity safeguarding your electrical system

• Mounting Options: Side and rear mounting for versatile installation

• Limited Lifetime Warranty ensures long-term performance and support
