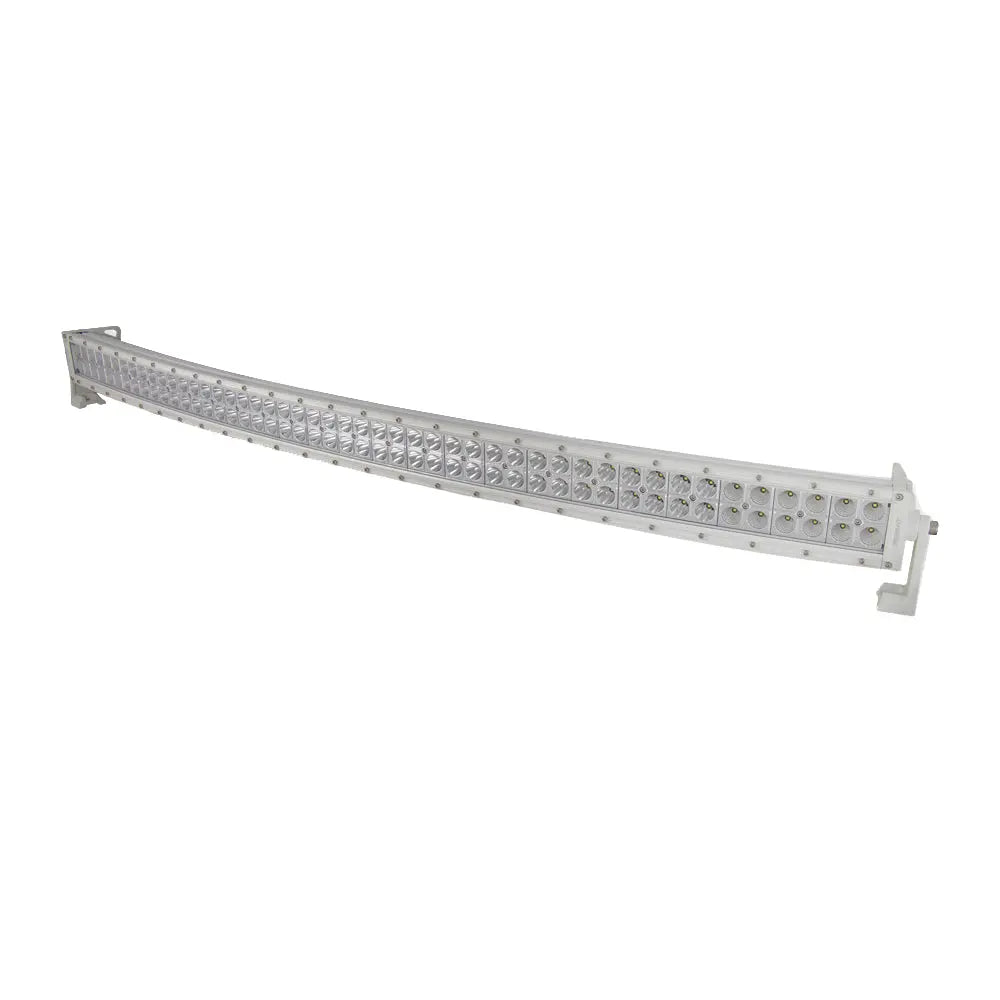

HEISE LED Lighting Systems Dual Row Marine Curved 42-Inch LED Light Bar

Dual Row Marine Curved LED Light Bar - 42"

Specs

• Input Voltage: 10-30V DC
• Wattage: 240 W
• (80-3WCREELEDs)
• Raw Lumens: 19200
• LUXat 10M: 780
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward 41 inches
• Brackets Turned Outward 43.5 inches
• Mounting Bolt Drill 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: 40 degrees C to +60 degrees C
• Current Consumption: 12 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your marine or off-road lighting with the HEISE LED Lighting Systems Dual Row Marine Curved 42-Inch LED Light Bar. Designed for durability and high performance, this light bar features a robust die-cast aluminum housing with a UV-inhibiting white coating, ensuring resistance to harsh environmental conditions. The high-intensity LEDs produce a combined 19,200 raw lumens with a color temperature of 6000K, providing bright and clear illumination for both flood and spot beam patterns. The flood pattern offers a 90-degree wide spread ideal for general area lighting, while the spot beam focuses a tighter 8-degree beam for long-distance visibility. This versatile light bar operates on a wide input voltage of 10-30V DC, consuming 240 watts, and is protected against reverse polarity, making it suitable for various vehicles and applications. The lens is crafted from durable polycarbonate, and the electronics are epoxy-encapsulated for added resilience, ensuring reliable operation in demanding conditions. The mounting brackets are made from stainless steel 316, with adjustable dimensions to fit different setups, and the overall height and depth of the light bar are 3 inches and 3.5 inches respectively. With an IP67 waterproof rating, the HEISE Marine LED Light Bar is built to withstand water, dust, and impact, making it an excellent choice for marine, off-road, or utility vehicle lighting needs. Easy to install with included hardware, this light bar provides powerful illumination while maintaining a sleek, curved design for a professional appearance on any vehicle or setup.

Features:

• Dual row curved LED design for enhanced illumination coverage

• High output of 19,200 lumens with a 6000K color temperature

• Versatile beam pattern includes combo, flood (90 degrees), and spot (8 degrees)

• Durable die-cast aluminum housing with UV-resistant coating

• Polycarbonate lens for impact resistance and clarity

• Stainless steel 316 mounting hardware for corrosion resistance

• IP67 waterproof and dustproof rating for harsh environments

• Wide operating voltage range of 10-30V DC for compatibility with various vehicles

• Integrated epoxy-encapsulated electronics for reliability

• Adjustable mounting brackets to fit different vehicle configurations
