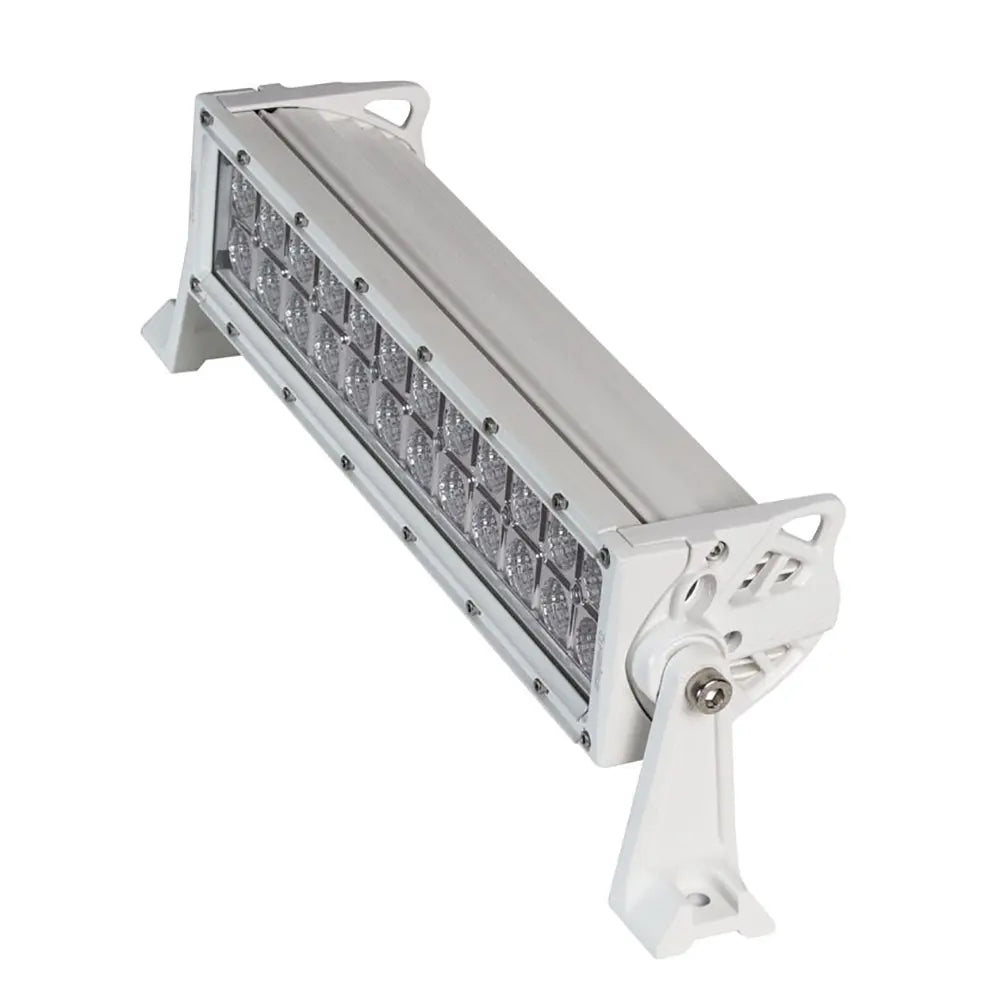

HEISE LED Lighting Systems Dual Row Marine LED Light Bar - 14 Inch

Dual Row Marine LED Light Light Bar - 14"

SPECS

• Input Voltage: 10-30V DC
• Wattage: 72W (24-3WCREELEDs)
• Raw Lumens: 5400
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward 13.50in
• Brackets turned outward 14.75in
• Mounting Bolt Drill .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: 3.7amps at 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-MDR14 is a versatile 14-inch dual row marine LED light bar designed for optimal illumination in demanding marine environments. Constructed with a durable die-cast aluminum housing featuring a UV-inhibitor white coating, this light bar offers excellent resistance to harsh weather conditions and prolonged exposure to sunlight. The PC lens material ensures clarity and durability, while the integrated epoxy-encapsulated electronics provide reliable performance and protection against water ingress with an IP68 rating. The stainless steel 316 mounting hardware guarantees corrosion resistance, making it suitable for marine applications. With a power draw of only 3.7 amps at 13.8 volts and a wattage of 72W, the light bar delivers an impressive 5,400 raw lumens, providing bright, wide, and focused lighting. Its beam pattern includes combo, flood (90 degrees), and spot (8 degrees) options, allowing for versatile lighting setups tailored to various navigation and safety needs. The light bar operates efficiently across a temperature range from -40°C to +60°C, ensuring reliable operation in diverse climates. Mounting brackets are designed with inward and outward hole dimensions for flexible installation, accommodating a hole diameter of 0.25 inches. Whether used for boat navigation, off-road adventures, or heavy-duty work, the HEISE HE-MDR14 enhances visibility and safety in challenging conditions. Please note that this product contains chemicals known to the State of California to cause reproductive harm, and further information is available at P65Warnings.ca.gov.

Features:

• Input Voltage: 10-30V DC for versatile power compatibility

• Wattage: 72W with 24 high-intensity Cree LEDs for bright illumination

• Raw Lumens: 5400 for powerful lighting output

• Color Temperature: 6000K for clear, daylight-like brightness

• Beam Pattern: Combo, flood (90°), and spot (8°) for versatile lighting options

• Housing Material: Die-cast aluminum with UV-inhibitor coating for durability

• Lens Material: Polycarbonate for impact resistance and clarity

• Mounting Hardware: Stainless steel 316 for corrosion resistance

• Operating Temperature Range: -40°C to +60°C for reliable performance in diverse climates

• Protection: IP68 rated for water and dust resistance, with reverse polarity protection
